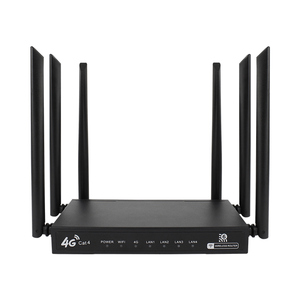

ComFi C23E

4G Dual Band Wi-Fi 6 Wireless CPE

4G Cat4 Compatible

Supports Wi-Fi 6

Supports eSIM

ComFi C23E card is ready to use, allowing you to enjoy high-speed network anytime, anywhere. 300Mbps wireless speed brings a smooth internet experience, and 4 100Mbps Ethernet ports meet the wired connection needs of multiple devices.

4G Wireless Router

Supports Wi-Fi 6 | 4G Cat4 Compatible | Strong Signal

Double the Speed of Ultra Large Bandwidth

Compared to CAT1, CAT4's transmission channel bandwidth has increased from 10MHz to 40MHz, with a speed increase of nearly 4 times

300Mbps Wireless Speed

Equipped with the new generation WiFi6 technology, it provides stable and wide coverage of 300Mbps high-speed wireless network signals

Insert the Card and Use It Immediately

Support multi band SIM cards, high-speed network switching at will, enjoy stable network for business trips and travel

High Speed Chip Network Speed Skyrockets

Powerful performance, high-speed stability, derived from the powerful internal "core", can maintain network speed even after long-term operation, and is stable without disconnection

Explore the World of Speed with Four Network Ports

Equipped with a full 100Mbps Ethernet port, it provides high-speed internet access, flexible wireless to wired conversion, and supports connecting to devices such as computers and televisions

Multi Belt Machine Quantity

Supports simultaneous connection of 16 devices, including mobile phones and computers iPad、 Game consoles, televisions, speakers, etc. can all be easily connected

Multi Scenario Application

Say goodbye to traditional wired broadband, power on and plug in the card to access the internet

图文展示(1)(1)(1)(1)(1)(1)(1)(1)

Hardware Specifications
Main Chip	ASR 1803
Radio Frequency	NV7643
Capacity	256Mb + 128Mb
USIM Card	External SIM card: 1.8V/3.0V Micro SIM (3FF) Built-in SIM card: supports up to three built-in SIM cards, supports SIM card switching
Ethernet Port	RJ45×4, 10/100M adaptive
USB Interface	USB 2.0: Type C port × 1
Reset Button	Press and hold for 8 seconds when the router is powered on. Release the button when the signal light turns off. The router will automatically restart and restore to factory settings
LED Indicators	Power indicator × 1 WiFi (WPS) indicator × 1 4G indicator × 1 LAN indicator × 4
Antenna Type	External
Power	12V/1A
Protocol Standards	IEEE 802.11b/g/n/ax
Size	17610725mm
Weight	180g
Operating Temperature	0℃to 45℃
Storage Temperature	-20℃ to 60℃
Humidity	5% to 95% (no condensation)
Users	Max. 16 Users
Channel Bandwidth	20MHz, 40MHz
