Wireless Bridge Technology Explained and Engineering Selection Guide

In weak current intelligent construction, long-distance surveillance transmission and cross-building network connectivity are persistent engineering challenges. Ethernet over twisted-pair copper cabling has a theoretical limit of just 100 meters—beyond that distance, cabling costs rise sharply and construction difficulty multiplies. In such scenarios, wireless bridges are often the most economical and fastest solution.

Many professionals tend to confuse bridges with switches and routers, unclear about the distinctions among the three. This article starts with the technical principles to clarify the nature of bridges and, referencing MovingComm's wireless bridge product line, provides a reference for engineering selection.

1. What Exactly Is a Bridge

A bridge, in English called a Bridge, operates at the second layer of the OSI model, namely the data link layer. It processes data based on MAC physical addresses and does not recognize IP addresses.

In layman's terms: a bridge acts like a "network bridge," connecting two independent LAN segments so that devices on both sides can communicate with each other. The bridge identifies device MAC addresses and builds an address table. When it receives a data frame, it determines which side the target device is on—if the target and source devices are on the same segment, the data is discarded and not forwarded; if the target is on the other side, the data is forwarded across.

The Relationship Between Bridges and Switches: A switch is essentially a multi-port bridge. Early traditional bridges typically had only 2 ports, used to connect two network segments. Switches evolved this technology with dozens or even hundreds of ports, using hardware forwarding for stronger performance. While traditional wired bridge hardware is now rare, the logical functions of bridging are widely retained, and what is most commonly used in engineering today is the wireless bridge.

The Difference Between Bridges and Routers: Routers operate at the network layer, looking at IP addresses, and are used to connect two different network segments to enable internet access. Bridges only look at MAC addresses, merging two network segments into the same LAN—they do not perform routing, assign IPs, or handle dial-up internet access. They serve distinct roles and should not be confused.

2. Four Key Functions of Bridges

1. Extend LAN Transmission Distance

Ethernet over copper cabling has a theoretical limit of just 100 meters. Beyond that distance, using bridges can splice two network segments together, extending network coverage without changing the existing network IP structure. This is the core application value of wireless bridges—transmission distances ranging from a few hundred meters to over ten kilometers. What a single Ethernet cable cannot achieve, a pair of bridges can easily handle.

2. Isolate Collisions and Optimize Network Performance

Bridges can divide collision domains. In large LANs with many devices, simultaneous data transmissions often lead to signal collisions. Bridges split a large network into two segments, confining collisions within each segment, reducing unnecessary traffic, and improving overall network stability.

3. Enable Interconnection Between Different Media Types

They can connect wired Ethernet and wireless links—this is the most typical use case for wireless bridges. Wired signals are converted to wireless, transmitted, and then converted back to wired at the receiving end, enabling long-distance transmission while keeping all devices on both sides within the same LAN. Cameras and NVRs can discover each other directly without any need for IP configuration changes.

4. Data Frame Filtering

Bridges filter data frames that do not need to cross segments, rather than blindly forwarding all data, thereby reducing network bandwidth consumption.

Note: Bridges cannot isolate broadcast domains—broadcast packets are still forwarded. This is a key difference from routers.

3. Two Deployment Modes for Wireless Bridges

In engineering practice, wireless bridges are typically deployed in two main configurations:

Point-to-Point (P2P): A pair of bridges—one end connected to the camera switch, the other to the NVR in the equipment room. No cabling is needed in between, with transmission distances ranging from a few hundred meters to over ten kilometers. This is the most common deployment method, ideal for fixed-point, long-distance transmission between two locations.

Point-to-Multipoint (P2MP): One master bridge connects to multiple slave bridges, suitable for aggregating video feeds from multiple dispersed surveillance points back to a central location. This is ideal for scenarios where multiple cameras are distributed across different positions but all need to transmit back to the same central equipment room.

4. MovingComm Wireless Bridge Product Series

MovingComm has years of technical expertise in the wireless bridge field, with a product line covering a wide range of engineering requirements, from short-distance to ultra-long-distance links.

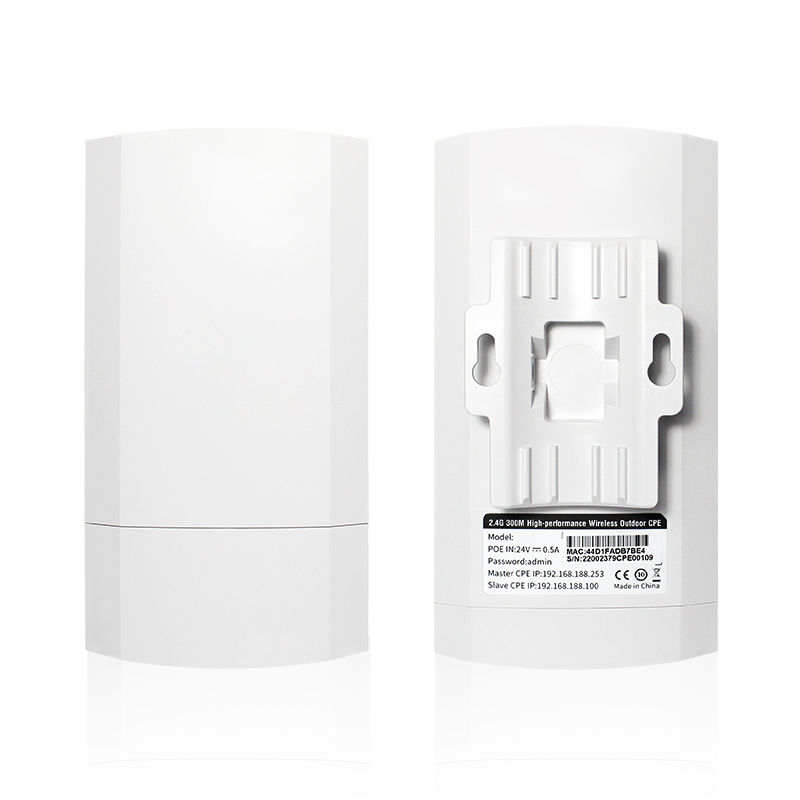

ComFi WL280: Entry-Level 1.5km Bridge

The ComFi WL280 is an outdoor 11N long-distance wireless bridge. It operates on the 2.4GHz band, features a built-in 8dBi flat directional antenna, supports 2×2 MIMO technology, and delivers a maximum wireless rate of up to 300Mbps. The product supports intelligent channel analysis, automatic optimal channel selection, universal repeater mode, and AP mode. It comes with dual Ethernet ports and supports one-click bridging, with a point-to-point transmission distance of up to 1.5 kilometers. Power is supplied via 24V PoE/DC. This model is ideal for small parks, construction site surveillance, farms, and other medium-distance bridging applications.

ComFi WL290: 5.8GHz High-Speed Bridge

The ComFi WL290 is an outdoor wireless bridge operating in the 5.8GHz band. Utilizing next-generation 11AC technology, it benefits from less interference in the same frequency band and delivers faster, more stable wireless performance. With a wireless transmission rate of up to 900Mbps, it features dual Fast Ethernet ports, supports 24V PoE/DC power supply, and includes adjustable transmit power. The 5.8GHz band offers less co-channel interference and cleaner channel environments compared to 2.4GHz, making it suitable for scenarios requiring high transmission stability and speed, such as tower crane surveillance and factory park video backhaul.

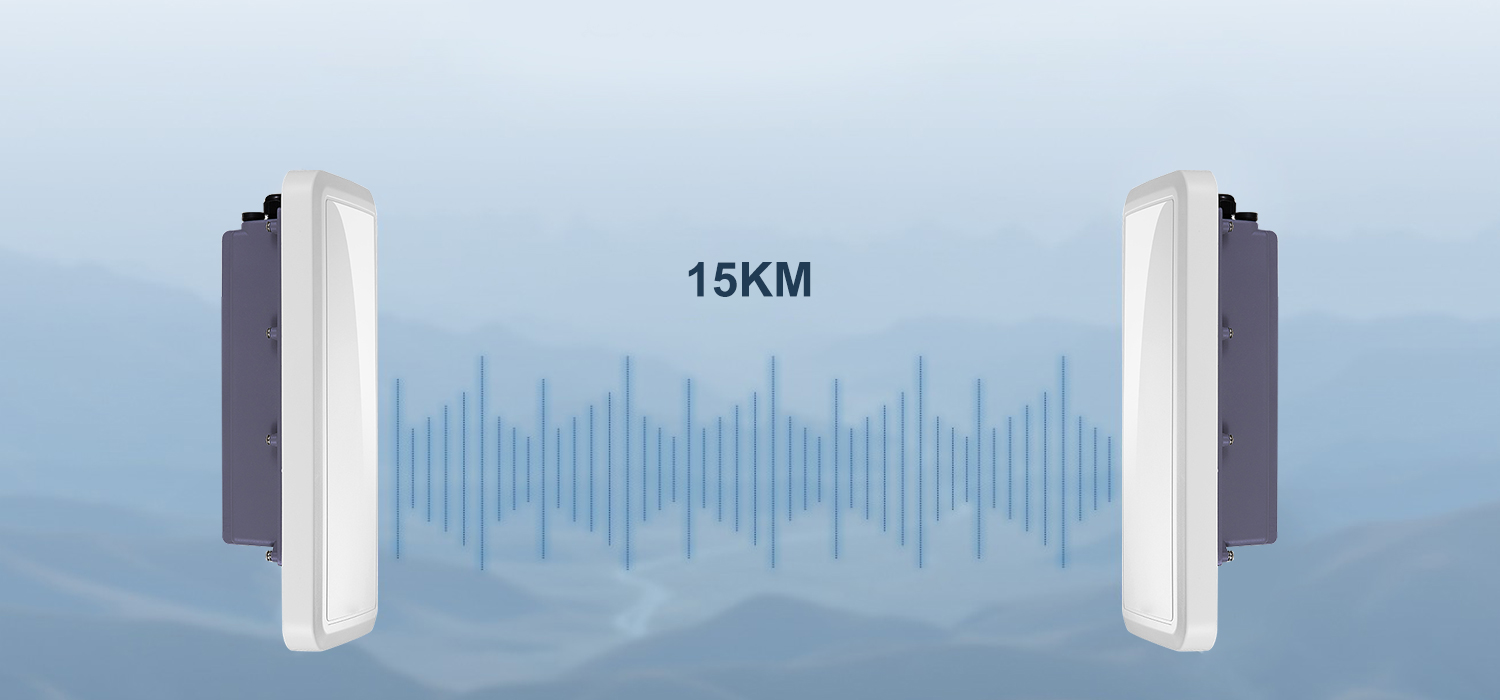

ComFi WL4800: 15km Ultra-Long-Distance Backbone Bridge

The ComFi WL4800 is a high-performance 11ac outdoor wireless bridge and the flagship model in MovingComm's wireless bridge lineup. It supports 20/40/80MHz channel bandwidth, with dual-band concurrent peak bandwidth reaching 1200Mbps. Equipped with an 18dBi high-gain directional antenna, it achieves a point-to-point transmission distance of up to 15 kilometers. The device offers multiple operating modes including AP and gateway, along with multi-layer encryption authentication. The entire unit meets IP67 ingress protection, providing waterproof and dustproof capability. It is suitable for power inspection private networks, backbone links across mountainous terrain, island communications, and other ultra-long-distance, high-reliability scenarios.

Product Selection Comparison

5. Engineering Selection Recommendations

In real-world projects, selection primarily depends on three dimensions:

Consider the Distance: Within 1 kilometer, the WL280 is sufficient; between 1 and 3 kilometers, the WL290 is a better choice; beyond 3 kilometers and especially over 10 kilometers, you must select products with high-gain antennas and dual-band capability like the WL4800.

Consider the Frequency Band: 2.4GHz offers better penetration but experiences more interference, making it suitable for environments with many obstructions. 5.8GHz provides higher speeds and less interference, ideal for open areas and video transmission scenarios with high bandwidth demands. If the budget allows, dual-band devices offer flexible switching and greater adaptability.

Consider the Environment: For outdoor deployment, always pay close attention to the ingress protection rating. IP67-rated devices can withstand heavy rain, dust, and other harsh weather conditions, significantly reducing maintenance frequency and failure rates.

Wireless bridges are indispensable devices in security surveillance, cross-building networking, and long-distance data transmission. Selecting the right product and applying the right solution often makes a project much more efficient and successful.

Product Website: Full specifications and parameters for wireless bridges are available in the product center at MovingComm (www.movingcomm.com).
