Wi-Fi 7: More than Just Speed, Reshaping Network Connections with "Stability"

When it comes to Wi-Fi 7, what most people first think of is its speed far exceeding that of Wi-Fi 6 - the theoretical rate can reach 30Gbps, significantly surpassing Wi-Fi 6's 9.6Gbps. However, in the current era when 5G and the Internet of Things are deeply penetrating, whether it is in consumer scenarios such as 8K movie viewing and cloud gaming, or in professional fields such as factory robot collaboration and remote medical surgeries, the "stability" of the network is often more crucial than its "speed". This article will focus on the stability advantages of Wi-Fi 7, analyze its technical core, and explore how industrial routers can cooperate with it to become the "stabilizing anchor" for the digital transformation of thousands of industries.

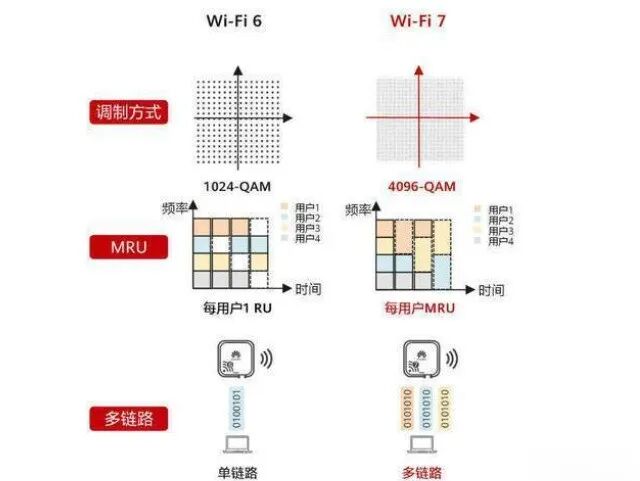

Wi-Fi 7 has achieved a qualitative leap in stability, with its core achievements stemming from three major technological breakthroughs: multi-link Operation (MLO), 4096-QAM modulation, and Automatic Frequency Coordination (AFC). It has addressed the pain points of Wi-Fi 6 from three dimensions: "path selection", "data transmission efficiency", and "interference management".

Multi-link Operation (MLO) : From "Single Lane" to "Three-dimensional Transportation Network"

1. In the Wi-Fi 6 era, although devices could switch between frequency bands such as 2.4GHz and 5GHz, they could only use one link to transmit data at the same time, and there was a delay in the switching. Once the current link is congested, it is necessary to wait for the frequency band switch to complete, which may cause temporary lag or rate fluctuations.



2. The MLO technology of Wi-Fi 7 breaks this limitation. It simultaneously aggregates communication links on multiple frequency bands such as 2.4GHz, 5GHz, and 6GHz for concurrent data transmission. The rates of multiple links are coordinated and superimposed to avoid the congestion problem of single-link transmission. This is equivalent to building "multiple parallel lanes". The system can judge the smoothness of each link in real time and send data in a split manner. This can not only significantly reduce latency but also effectively avoid lagging and disconnection problems caused by interference from a single channel. In short, MLO endows Wi-Fi 7 with the wisdom of "selecting the optimal path", fundamentally enhancing the connection stability.

4096-QAM Modulation: A More Efficient "Data Packager"

QAM (Quadrature Amplitude Modulation) technology - by simultaneously carrying information through both the amplitude and phase dimensions of the signal, it enables each signal symbol to carry more bits of data. Wi-Fi 6 adopts 1024-QAM modulation, while Wi-Fi 7 upgrades to 4096-QAM. 4096-QAM modulation increases the number of bits carried per symbol from 10 to 12, and the data transmission efficiency is 20% higher than that of 1024-QAM. In scenarios with a high concentration of devices, higher transmission efficiency can reduce the waiting time for data queuing and avoid network lag. In moderately weak signal scenarios, its superior spectral efficiency can reduce the impact of signal attenuation on the rate, decrease the extent of rate attenuation, and thereby maintain a stable rate in complex scenarios.

Automatic Frequency Coordination (AFC) : An intelligent Butler for Solving "neighborhood disturbances"

The 6GHz frequency band has become the "golden frequency band" for Wi-Fi 7 to achieve high speed and low latency due to less interference from civilian devices and sufficient bandwidth. However, in some areas, this frequency band is shared with professional systems such as radars, and AFC technology needs to be used to avoid such interference. Traditional Wi-Fi (some early Wi-Fi 6 devices and earlier versions) can detect radar signals and switch channels through the DFS mechanism, but the switching response is slow and the connection may be interrupted. The AFC of Wi-Fi 7, based on the authorized available channel range of the 6GHz frequency band obtained from the regional regulatory database, detects the characteristics of radar signals in real time, dynamically adjusts the working channel and transmission power of Wi-Fi devices, and maximizes the utilization of 6GHz spectrum resources without interrupting the connection. This intelligent interference management enables Wi-Fi 7 to maintain stable and reliable connections in complex electromagnetic environments such as industrial workshops and outdoor base stations.

If the three major technologies of Wi-Fi 7 are the "core technical architecture", then the industrial router is the core carrier that transforms the "core technical architecture" into the "actual operational capability". The requirements for networks in industrial environments are far higher than those in home and office scenarios. They not only need to be stable but also have to withstand harsh conditions such as high temperatures, high humidity, and strong electromagnetic interference, and operate continuously for 7×24 hours. Relying on its customized advantages for industrial scenarios, industrial routers have become the "core application carrier" that unleashing the stability value of Wi-Fi 7.

The core advantage of industrial routers: "hardcore capabilities" adapted to industrial scenarios

1. High reliability and environmental adaptability: Utilizing industrial-grade components, it features a wide operating temperature range (typically from -40 ° C to 75 ° C) and achieves protection levels such as IP30/IP40. Additionally, it possesses strong anti-electromagnetic interference capabilities, enabling stable operation in harsh environments like factory workshops and outdoor base stations without being affected by environmental fluctuations.



2. Redundant backup and self-healing from faults: Industrial scenarios have an extremely low tolerance for network disruptions. Industrial routers typically support dual SIM cards, dual-link backup, and even link aggregation. When the primary network (such as the Ethernet link) fails, the system can switch to the backup link (such as 5G/4G cells) in an extremely short time, ensuring that data transmission is nearly imperceptible and uninterrupted.



3. Multi-mode communication and full interface compatibility: It not only natively supports Wi-Fi 7 technology, but also has a built-in 5G/4G cellular communication module to be compatible with the corresponding mobile communication networks. It supports multiple communication methods such as Gigabit Ethernet, and at the same time provides serial communication interfaces such as RS232 and RS485 suitable for industrial scenarios, which can be seamlessly integrated with devices such as PLCS (Programmable Logic Controllers) and sensors.

Typical application scenario: The "main battlefield" of Wi-Fi 7 + industrial routers

Combining the stability of Wi-Fi 7 with the "hardcore attribute" of industrial routers, the two have been applied in multiple key fields and have become the core support for digital transformation:

1. Intelligent manufacturing: In intelligent factories, AGV carts and robotic arms need to receive instructions in real time and work in coordination. The low latency of Wi-Fi 7 (supported by technologies such as MLO multi-link concurrent transmission, 320MHz large bandwidth, enhanced OFDMA scheduling and Multi-RU) and high reliability (supported by link redundancy of MLO, anti-interference ability of AFC and 4096-QAM The efficient data transmission (jointly guaranteed), in combination with the redundant backup design of industrial routers, can significantly reduce the probability of control instruction loss and prevent production lines from shutting down due to network issues.



2. Remote monitoring and inspection: In remote areas such as mines, oil fields, and power facilities, industrial routers build wireless monitoring networks via Wi-Fi 7 to transmit high-definition video and sensor data in real time. The multi-link signal coverage of complex terrains (such as mountainous areas and tunnels) is achieved through the networking of multiple Wi-Fi 7 aps. On this basis, the equipment dynamically selects the optimal path among multiple covered links with the help of MLO technology to further ensure signal stability. The AFC mechanism avoids interference with the local radar system and guarantees the real-time and integrity of the data.



3. Intelligent transportation and logistics: In ports, railways and logistics parks, Wi-Fi 7 meets the large data transmission requirements of container dispatching systems with its high bandwidth characteristics, and ensures real-time data processing with its low latency advantage at the same time. For automatic guided vehicles, their low latency feature ensures real-time command reception, while high reliability (relying on MLO, AFC and 4096-QAM) prevents command loss and guarantees precise dispatching. Meanwhile, the eSIM (Embedded SIM card) of the industrial router supports switching operators through remote number writing without the need to replace the physical SIM card. Combined with the international roaming service of the operator and the intelligent network switching mechanism of the equipment, it can achieve seamless network switching in cross-border transportation, ensuring that the logistics dispatching is fully "online controllable".

The value of Wi-Fi 7 goes far beyond the iteration of speed, but more importantly, it redefines "stability" - through technologies such as MLO, 4096-QAM, and AFC, it compensates for the problems of Wi-Fi 6 such as lag, disconnection, and rate attenuation in multi-device, high-interference, and complex environments. The industrial router, with its sturdy, durable, intelligent and reliable characteristics, has become the "best carrying platform" for Wi-Fi 7 stability.

From home entertainment, Wi-Fi 7, with the help of technologies such as MLO multi-link optimization and 4096-QAM efficient transmission, avoids lag when multiple devices are connected to the network, providing a smooth viewing and gaming experience. In industrial production, relying on MLO link redundancy, 4096-QAM efficient transmission, AFC anti-interference and redundant backup of industrial routers, the efficient collaboration of AGV carts and robotic arms is ensured. In smart cities, through technologies such as AFC anti-interference and MLO multi-link stable transmission, it supports the stable operation of intelligent monitoring, traffic dispatching, and the field of telemedicine. With low latency and high stability in connection, it ensures the precise transmission of surgical instructions. Wi-Fi 7 is breaking the network barriers of the Internet of Everything with "stability" at its core.
