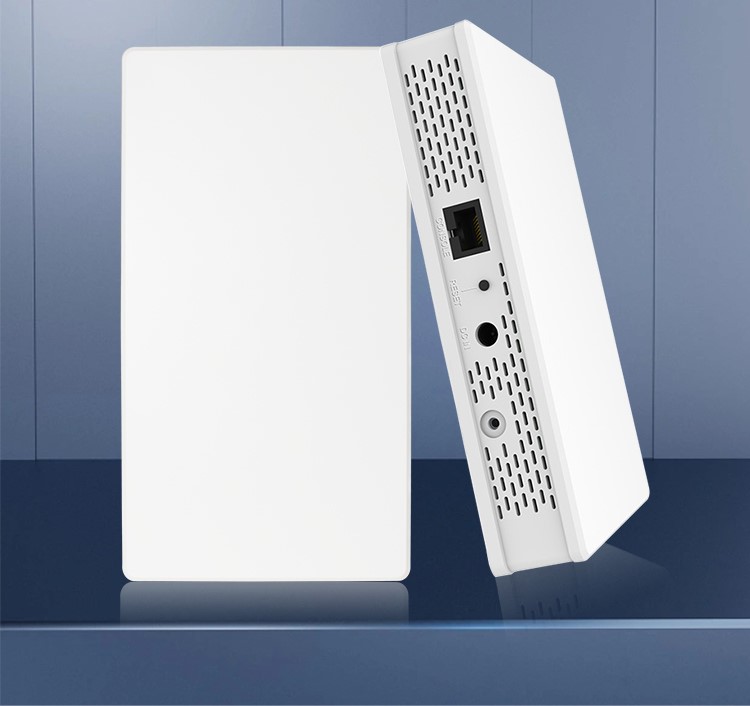

EL960 WiFi6 Panel AP

The EL960 is a high-performance and high-speed indoor 11ax dual-band wireless panel AP, providing dual-band wireless services at 2.4G and 5.8GHz. The maximum supported bandwidth is 600Mbps for 2.4G and 1200Mbps for 5.8ghz. This product supports gateway, AP and other modes, and can provide users with multiple networking methods, making the application scenarios of users more extensive.

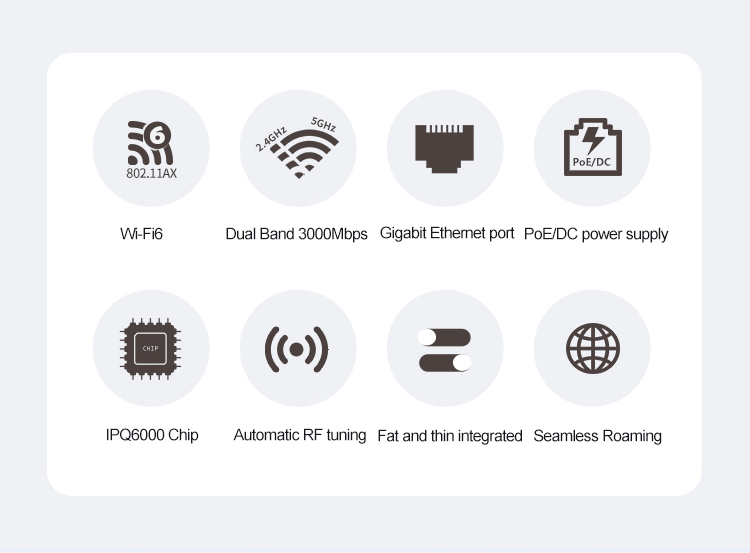

eight characteristics

1. Equipped with Wi-Fi 6 technology: Initiate the efficiency revolution of Wireless Panel AP
The EL960 Wireless Panel AP was the first to adopt the advanced Wi-Fi 6 (802.11ax) technology. Compared with the previous generation standards, Wi-Fi 6 introduces key technologies such as OFDMA and MU-MIMO. OFDMA technology enables this Wireless Panel AP to communicate data with multiple devices simultaneously in one transmission, greatly enhancing the network efficiency and concurrent capability in high-density scenarios, and effectively solving the pain points of numerous devices and network lag. The MU-MIMO technology enables the EL960 Wireless Panel AP to establish independent data streams with multiple devices simultaneously, ensuring that each device can obtain dedicated bandwidth. Even when multiple users are online at the same time, it can maintain a smooth network experience. This makes the EL960 Wireless Panel AP an ideal choice for dealing with high-concurrency application scenarios such as modern smart homes and intensive offices.
2. Dual-band 3000Mbps: Unleash the powerful speed of Wireless Panel AP
As a flagship Wireless Panel AP, the EL960 offers an astonishing dual-band concurrent wireless rate of 3000Mbps. Among them, the 5GHz frequency band offers a rate of up to 2402Mbps, specifically designed for high-bandwidth and low-latency applications such as high-definition video, online games, VR/AR, etc., ensuring users enjoy an extremely fast and smooth experience. The 2.4GHz frequency band offers a rate of 574Mbps, featuring better wall-penetrating capability and a wider coverage area, ensuring that devices with high requirements for connection stability, such as smart home devices and iot sensors, do not disconnect. This Wireless Panel AP, through intelligent frequency band guidance, automatically selects the optimal channel for user devices, achieving a perfect balance between rate and coverage, and filling the entire network space with high-speed signals.
Iii. Gigabit Ethernet Port: Breaking through the wired bottleneck of Wireless Panel AP
To fully leverage its 3000Mbps Wireless performance, the EL960 Wireless Panel AP is equipped with a Gigabit (1000Mbps) Ethernet port. This design is of vital importance as it ensures that data transmission between the wireless network and upstream networks such as optical MOdems and switches will not become a bottleneck. The performance of a high-speed Wireless Panel AP will be greatly compromised if it does not have a matching wired port. The gigabit port of EL960 ensures high-speed and smooth operation throughout the entire chain from the Internet to the user terminal. Whether it’s downloading large files, watching 4K/8K streaming media, or conducting cloud desktop office work, you can enjoy an end-to-end ultra-fast experience, truly achieving the full release of wireless performance.
Four. PoE/DC dual-mode power supply: Simplify the deployment of Wireless Panel aps
The EL960 Wireless Panel AP is designed with full consideration of the convenience and flexibility of installation. It supports two power supply methods: PoE (Power Over Ethernet) and DC (Direct Current Power Supply). PoE power supply enables this Wireless Panel AP to receive both data and power simultaneously through a standard network cable, greatly simplifying the wiring work. Especially in locations such as ceilings and walls where power sockets are difficult to find, deployment becomes extremely easy, reducing installation costs and complexity. Meanwhile, the retained DC power interface also provides users with an alternative to traditional power supply, increasing the flexibility of deployment. This humanized design enables the EL960 Wireless Panel AP to easily adapt to various complex installation environments.
V. Qualcomm IPQ6000 Chip: Forging the Powerful Heart of Wireless Panel AP
The excellence of performance stems from a powerful core. The EL960 Wireless Panel AP is equipped with the Qualcomm IPQ6000 professional network processor. This powerful chip is the cornerstone for the efficient and stable operation of EL960. It has strong data processing capabilities and forwarding performance, and can easily handle the complex algorithms and high-load tasks brought by Wi-Fi 6. The IPQ6000 chip not only ensures the stable operation of this Wireless Panel AP under high load conditions, but also provides it with excellent energy efficiency ratio and stability. It can be said that it is precisely this powerful heart that endows the EL960 Wireless Panel AP with the outstanding ability to handle massive amounts of data and connect numerous devices with ease.
Vi. Automatic Radio Frequency Tuning: Endowing Wireless Panel AP with a smart brain
The Wireless environment is complex and changeable. Channel interference is the main factor affecting the performance of Wireless Panel aps. The EL960 is equipped with an intelligent automatic RF tuning function. This Wireless Panel AP can automatically scan the surrounding wireless environment, intelligently analyze the channel occupancy and interference sources, and automatically select the optimal wireless channel and transmission power to work. This process requires no manual intervention at all, enabling the EL960 Wireless Panel AP to always maintain the best working condition, effectively avoid co-frequency interference, and improve signal quality and transmission efficiency. For users, this means a “plug-and-play” intelligent wireless network that always maintains the best performance.
Vii. Fat/Fit AP: Enhance the networking flexibility of Wireless Panel aps
EL960 is a highly flexible Wireless Panel AP that supports both Fat and Fit working modes. In the “Thin AP” mode, multiple EL960s can be uniformly and centrally managed, configured and monitored by a single wireless controller (AC), which is highly suitable for scenarios such as hotels, offices and schools that require large-scale deployment and centralized operation and maintenance, greatly simplifying network management. In the “Fat AP” mode, each EL960 Wireless Panel AP can work independently, complete all configurations and management on its own, which is very suitable for the independent networking needs of families, small studios or individual stores. This integrated design of fat and thin enables the EL960 Wireless Panel AP to seamlessly adapt to various network architectures ranging from small to large and from simple to complex, and it has extremely high investment value and scalability.
Viii. Seamless Roaming: Building the Mobility freedom of Wireless Panel AP
For a network composed of multiple Wireless Panel aps, the network switching experience of users during movement is of crucial importance. The EL960 supports the advanced 802.11k/v/r seamless roaming protocol. When a user’s handheld terminal is in multiple EL960 Wirele… When moving between the coverage areas of the Panel AP, the system can intelligently and quickly assist the terminal to complete the switching. The entire process is completed in milliseconds, and the user is almost imperceptible. There will be no situations such as video lag, game disconnection, or voice interruption. This feature enables the Wireless network constructed by the EL960 Wireless Panel AP to truly become a unified whole, providing users with a continuous, stable and high-speed mobile network experience, which is the core function for building high-quality whole-house coverage and large-scale place wireless networks.

Qualcomm Chip Solutions

The soul of any outstanding Wireless Panel AP must lie in its core processor. The reason why EL960 stands out among many similar products is primarily attributed to its adoption of the industry-leading Qualcomm IPQ6000 chip solution. This powerful “heart” injects unparalleled processing capabilities and stability into the EL960, laying a solid foundation for its high-performance Wireless Panel AP.

The Qualcomm IPQ6000 chip is a quad-core ARM processor specifically designed for high-performance network devices, with a main frequency of up to 1.2GHz and integrated with an advanced network acceleration engine. For the Wireless Panel AP EL960, this means it can easily handle the concurrent processing of massive amounts of data. In a home environment, when dozens of smart devices are connected to the network simultaneously, or in an office setting, when multiple employees are conducting large file transfers and video conferences at the same time, the powerful computing power of IPQ6000 can ensure that every data packet is accurately and quickly forwarded, effectively avoiding network lag, delay or even disconnection problems caused by processor performance bottlenecks. This powerful processing capability has greatly expanded the user capacity of the EL960 Wireless Panel AP, enabling it to easily support the simultaneous online of over a hundred terminals while still maintaining excellent performance.

Stability is a key indicator to measure whether a Wireless Panel AP is reliable. The Qualcomm IPQ6000 chip is renowned for its outstanding stability and low power consumption features. It can maintain the stability of the chip temperature under long-term and high-load operating conditions, thereby ensuring the continuous and stable operation of the entire Wireless Panel AP. This is crucial for application scenarios that require 7×24-hour uninterrupted operation, such as smart buildings and remote monitoring. Users need not worry about network interruption caused by device overheating or performance degradation. The EL960 Wireless Panel AP will consistently provide reliable communication guarantee.

In addition, the IPQ6000 chip integrates advanced hardware acceleration technology, capable of performing hardware-level acceleration processing on network functions such as NAT, routing, and QoS. This not only improves the data forwarding efficiency and reduces the latency, but also provides the possibility for the EL960 Wireless Panel AP to achieve more complex network functions. It can be said that choosing the EL960 equipped with the Qualcomm IPQ6000 chip means choosing a top-of-the-line Wireless Panel AP that combines outstanding genes, performance and stability.

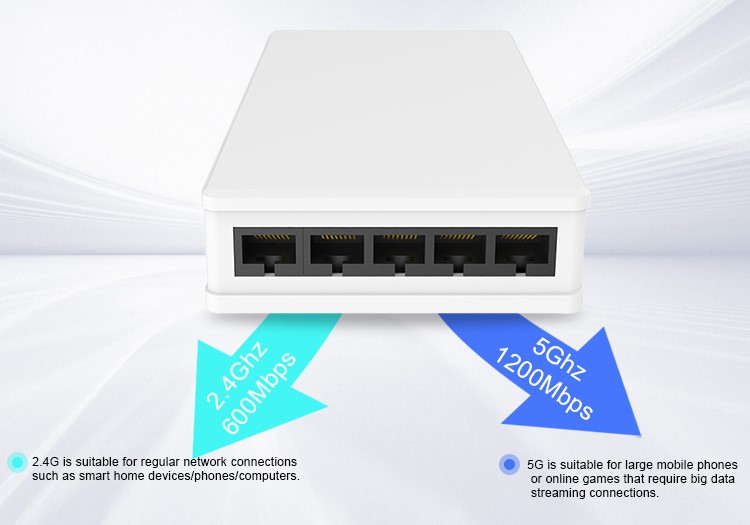

2.4G/5G Dual Band Concurrent

If the powerful chip is the inner soul of the EL960, then its dual-band concurrent capability based on the Wi-Fi 6 (802.11ax) standard is the surging power it presents to users. As a new generation of Wireless Panel AP, EL960 has completely bid farewell to the constraints of traditional single-frequency or low-speed wireless networks. Through the coordinated operation of the 2.4GHz and 5.8GHz frequency bands, it brings users a wireless transmission rate of up to 1800Mbps, initiating a true speed revolution.

2.4GHz frequency band: The cornerstone of compatibility and coverage
The 2.4GHz band of EL960 supports a maximum bandwidth of 600Mbps. Although the 2.4GHz frequency band has certain channel congestion problems due to its openness, its greatest advantage lies in its powerful penetration ability and wide device compatibility. In complex indoor environments, such as when passing through thick walls, floors or multiple partitions, the attenuation degree of 2.4GHz signals is much lower than that of the 5GHz frequency band. This makes the 2.4GHz frequency band of the EL960 Wireless Panel AP the key to ensuring basic network coverage. For some devices that do not have high bandwidth requirements but need stable connections, such as smart home sensors, smart door locks, smart sockets, some Internet of Things devices, and some old wireless terminals, the 2.4GHz frequency band offers the most reliable connection option. As a professional Wireless Panel AP, EL960 minimizes co-frequency interference by optimizing the transmission power and channel selection algorithm of the 2.4GHz frequency band, ensuring that this frequency band can provide a stable and available network speed while offering wide coverage.
5.8GHz frequency band: The palace of purity and high speed
The 5.8GHz frequency band of EL960 has pushed the speed of wireless networks to a new height, supporting a maximum bandwidth of 1200Mbps. Compared with 2.4GHz, the 5.8GHz frequency band has more abundant channel resources, less interference between channels, and a more “pure” spectrum environment. This makes it an ideal channel for carrying high-bandwidth and low-latency services. For users who need to watch 4K/8K ultra-high-definition videos smoothly, play large online games, participate in high-definition video conferences or transfer large files quickly, the 5.8GHz frequency band of the EL960 Wireless Panel AP is undoubtedly the best choice. It can offer a transmission rate far exceeding 2.4GHz and lower network latency, completely saying goodbye to lag and buffering, allowing users to fully enjoy the ultimate experience brought by high-speed networks. In addition, the characteristics of the 5.8GHz frequency band also make it a powerful tool for building high-density wireless coverage environments. In areas with a high concentration of terminals such as offices, meeting rooms, and hotel rooms, it can effectively reduce mutual interference between devices.
Dual-frequency concurrency: A synergy effect where 1+1>2
The true power of the Wireless Panel AP EL960 lies in its “dual-band concurrent” technology. It is not simply switching between two frequency bands, but can simultaneously establish two independent wireless networks, allowing dual-band smart devices to automatically select the optimal frequency band to connect to based on their own needs and signal conditions. This intelligent shunting mechanism enables the advantages of the 2.4GHz and 5.8GHz frequency bands to complement each other, achieving a synergy effect where 1+1>2. Ultimately, what users obtain is a wireless network environment with a total rate as high as 1800Mbps (600Mbps + 1200Mbps). Whether it is IoT devices that require wide coverage or audio-visual entertainment devices that pursue ultimate speed, they can all find the most suitable connection method for themselves in the Wireless network constructed by the EL960 Wireless Panel AP, thereby maximizing the overall network efficiency.

Seamless Roaming

In modern home or office environments, the coverage of a single Wireless Panel AP is limited. To achieve full coverage of the entire house or the entire area, it is usually necessary to deploy multiple aps for networking. However, the traditional multi-AP networking solution has a fatal pain point: when users move between different AP coverage areas, their wireless terminals (such as mobile phones and laptops) often “stick” to the original AP with weakened signal and are reluctant to switch to the new AP with stronger signal, resulting in network lag and disconnection, which seriously affects the user experience.

The EL960 Wireless Panel AP, supported by the advanced 802.11k/v/r protocol, perfectly solves this problem. Its “seamless roaming” function enables multiple EL960 devices to work intelligently in collaboration. When the user moves with the terminal, the system will monitor the signal strength of each AP in real time. The 802.11k protocol enables aps to provide terminals with a list of neighboring aps, helping terminals understand which access points are available around them. The 802.11r protocol enables rapid switching of basic service sets, significantly reducing the authentication time for terminals when switching between different aps. The switching process can be completed within milliseconds. The 802.11v protocol, on the other hand, enables aps to actively “guide” terminals with poor signals to connect to better aps.

The combination of the three enables the EL960 Wireless Panel AP network to achieve nearly “seamless” roaming handover. Whether you are walking from the living room to the bedroom at home or from the meeting room to the workstation in the office, your wireless devices will automatically and quickly connect to the EL960 Wirelessless Panel AP with the strongest signal in the background. The entire process is smooth and natural, with video calls not interrupted and online games not disconnected. It truly realizes “wherever you go, The promise that the signal will follow wherever it goes. This intelligent coverage capability is one of the core competencies of EL960 as a high-end Wireless Panel AP.

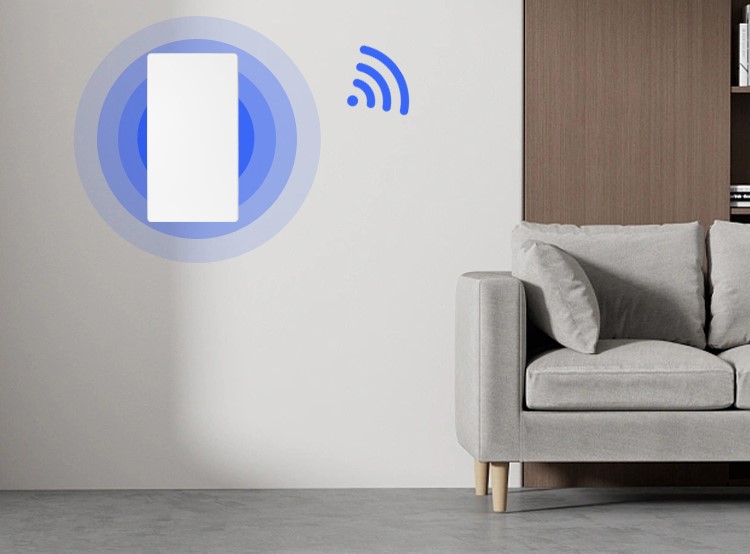

WiFi Full House Coverage

“WiFi coverage throughout the hospital”, this is not only a promotional slogan, but also the goal that the EL960 Wireless Panel AP is committed to achieving. As a panet-type AP, its original design intention is to solve the pain points of uneven coverage and many signal dead zones of traditional routers. Through scientific and aesthetically pleasing deployment methods, it achieves uniform and full coverage of wireless signals.

The natural advantages of panel design
As a Wireless Panel AP, the greatest physical advantage of EL960 lies in its installation location. It can be directly replaced or installed in a standard 86-type network panel box, usually located in the central position of the room or in key areas with signal requirements (such as the entrance of the living room or bedroom). This “in-wall” or “panel-mounted” deployment method has a natural coverage advantage over floor-standing routers placed in corners. Firstly, the AP is positioned in the center, making the wireless signal radiate more evenly in all directions and effectively reducing signal attenuation caused by excessive distance. Secondly, the installation position is usually relatively high, avoiding the obstruction of obstacles such as the ground and furniture, making the signal transmission path smoother. Finally, the standardized panel design enables it to blend perfectly into the wall, neither taking up extra space nor blending in with the interior decoration style, combining both aesthetics and practicality.
Professional antenna and RF tuning
To fulfill the promise of “covering every corner of the room”, the EL960 Wireless Panel AP has also made great efforts in the internal hardware design. It is equipped with multiple high-gain built-in PCB antennas and has undergone precise RF design and optimization. The layout and angles of these antennas have been repeatedly tested to achieve the best signal coverage pattern and ensure strong signal strength in both the horizontal and vertical directions. Meanwhile, the EL960 supports the automatic adjustment function of wireless channels. It can scan the surrounding wireless environment in real time and automatically select the cleanest and least interfering channel for operation. When multiple EL960 Wirelessless Panel aps are networked, the system can also automatically perform channel planning and power adjustment to avoid co-frequency interference between adjacent aps, forming an efficient and collaborative wireless coverage system.
Coverage solutions from single points to the entire network
For a single room, an EL960 Wirelessless Panel AP can usually provide perfect coverage. For larger Spaces such as duplexes, villas, hotels, apartment buildings, and offices, the flexibility of the EL960 is fully demonstrated. It supports multiple networking modes, including the most commonly used AP mode (Access Point Mode). In this mode, multiple EL960 devices can be connected to the main router through a wired network (such as a switch) to form a unified wireless network. All aps share the same SSID and password. Combined with the seamless roaming technology mentioned earlier, It can achieve seamless coverage over a large area.
In addition, the EL960 also supports gateway mode, enabling it to independently assume the role of a router in certain small-scale scenarios and providing users with diverse networking options. This wide applicability enables the EL960 Wireless Panel AP to easily meet various wireless coverage requirements ranging from a single bedroom to an entire building. No matter which room the user is in, the EL960 can ensure that its wireless network signal is “always full and stable”, truly achieving the ideal state of “WiFi coverage throughout the entire hospital”.

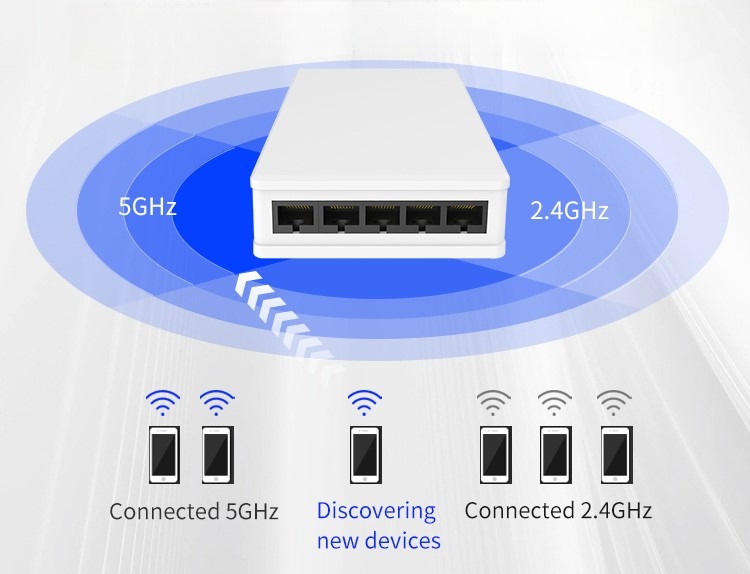

Spectrum Navigation

Spectral Navigation: The conductor of intelligent shunting and load balancing

If seamless roaming resolves the issue of continuity during movement, then “spectral navigation” technology addresses the problem of efficiency in static environments. In dual-band Wireless Panel aps, a common phenomenon is that a large number of dual-band supporting terminal devices, due to historical connection habits or initial search strategies, tend to prioritize connecting to the 2.4GHz frequency band where the signal is generally stronger. This has led to an overloading of the 2.4GHz frequency band and channel congestion, while the 5GHz frequency band, which is faster and has less interference, is deserted, resulting in serious waste of resources and a decline in network performance.

The spectral navigation technology equipped in the Wireless Panel AP EL960 is like an experienced traffic conductor, which can intelligently guide network traffic and achieve the balancing of dual-frequency loads. Its working principle is very ingenious: when a new dual-frequency terminal attempts to connect to the EL960, the spectral navigation function will first detect the terminal’s capability. Then, the EL960 will actively “reject” its request to connect to the 2.4GHz band, or through specific signaling, strongly recommend that the terminal directly connect to the 5GHz band. For dual-band terminals already connected to the 2.4GHz frequency band, the EL960 will also guide them to migrate to the 5GHz frequency band at an appropriate time.

Through this intelligent guidance, the EL960 Wireless Panel AP successfully “diverts” devices with high bandwidth requirements to the 5GHz highway, while leaving the 2.4GHz frequency band to those iot or outdated devices that truly need it and only support a single frequency. This not only significantly reduces the load and interference on the 2.4GHz frequency band, avoiding network congestion caused by terminal clusters, but also fully leverages the high-speed advantages of the 5GHz frequency band. Ultimately, the operational efficiency of the entire wireless network has been greatly enhanced, and the online experience of all users has been improved. Spectral navigation technology fully demonstrates the profound capabilities of EL960 as an intelligent Wireless Panel AP.

Suitable for various application scenarios

Outstanding performance ultimately needs to demonstrate its value through practical application. With its comprehensive and powerful functions, EL960 is widely applicable to various application scenarios and becomes the ideal Wireless Panel AP for solving all kinds of wireless network needs.

Family and living environment: The wireless foundation of smart living
In the bedroom or living room, the EL960 is the perfect companion for a family entertainment center. With its 1800Mbps high-speed dual-band, it can easily support multiple devices to watch 4K ultra-high-definition streaming media and play large-scale online games simultaneously without worrying about lag. Spectral navigation technology ensures that high-performance devices such as game consoles and smart TVS are always connected in the high-speed 5GHz frequency band, while smart speakers and vacuum cleaners operate stably in the 2.4GHz frequency band without interfering with each other. In densely populated living environments such as hotels, dormitories and apartments, the panel design of the EL960 is not only aesthetically pleasing but also provides each room with an independent, high-speed and secure wireless network. Hotel guests can enjoy a smooth Internet experience, dormitory students can study and entertain online with peace of mind, and apartment residents can build their own smart home systems. The EL960 Wirelessless Panel AP provides a solid and reliable wireless foundation for modern living Spaces.
Business and office environments: Efficient and collaborative neural networks
In an office environment, the stability and efficiency of the network are directly related to the productivity of an enterprise. The EL960 Wirelessless Panel AP can provide customized wireless coverage for different areas such as open-plan offices, independent offices, and meeting rooms. Its powerful user capacity and high-bandwidth data processing capabilities can meet employees’ high-load office needs such as video conferences, cloud desktop access, and large file transfer. The seamless roaming function ensures that when employees move around the office, their network connection remains uninterrupted and communication and collaboration are always efficient. For places that require high-density wireless access, such as lecture halls and exhibition halls, multiple EL960 units can be networked with ease, providing stable network services for every participant.
In the field of industrial Internet of Things: The wireless pioneer of Industry 4.0
It is particularly worth mentioning that the EL960, with its “outstanding performance, stable and reliable communication capabilities, and wide applicability”, is becoming an ideal choice in the field of industrial Internet of Things. In industrial automated production lines, the EL960 Wirelessless Panel AP can provide low-latency and highly reliable wireless connections for devices such as AGV carts, robotic arms, and wireless sensors, enabling flexible scheduling and precise control of the production process. In the smart grid, it can be used for wireless data transmission in substations and distribution rooms to achieve real-time monitoring of the grid status. In remote monitoring scenarios, the EL960 can stably transmit video streams collected by high-definition cameras, providing strong support for security and equipment status monitoring. In an intelligent logistics warehouse, it can support wireless communication of handheld terminals, sorting systems, unmanned forklifts and other equipment, significantly enhancing logistics efficiency. In these harsh industrial environments, the stability and powerful performance demonstrated by the EL960 Wireless Panel AP enable it to provide users with efficient, secure and intelligent wireless communication solutions, effectively promoting the process of Industry 4.0.

The EL960 is by no means a simple wireless access device. It takes the Qualcomm IPQ6000 chip as the powerful core, is driven by the powerful dual-band concurrent power of Wi-Fi 6 at 1800Mbps, takes the intelligent technology of seamless roaming and spectral navigation as the brain, and takes the form of the panel design with ultimate coverage, ultimately empowering the vast application field from home, business to industrial Internet of Things.

EL960 is a flagship Wireless Panel AP that redefines the indoor wireless network experience. It perfectly integrates high performance, intelligence, aesthetic design and wide applicability. It not only addresses the current users’ urgent demand for high-speed, stable and full-coverage wireless networks, but also, with its future-oriented technical architecture, lays a solid wireless foundation for the intelligent era of the Internet of Everything. Choosing EL960 means choosing a more advanced, intelligent and reliable wireless lifestyle and working mode. It is not only a Wireless Panel AP, but also the core force for building the future wireless network world.
