Wi-Fi Lag? Unlock “VIP Channel” 90% Miss.

Have you ever had this moment of breakdown?

The answer is actually quite simple: your Wi-Fi is missing a "traffic management master"! The 802.11 protocol hides two powerful tools: QoS and WMM, which can create "VIP channels" for critical data such as voice and video. Unfortunately, most people don't know how to use them. Today, we'll break down this Wi-Fi optimization secret in layman's terms, allowing you to stream videos without buffering and make calls without dropping connections!

Early Wi-Fi (such as 802.11b/g) followed a "free-for-all" principle: all data was treated equally, with everyone competing for the same channel, and whoever got it first got it. This is like a road without traffic lights or lane markings, where delivery trucks, fire trucks, and private cars are all crammed together, which will definitely cause problems in an emergency.

To address this issue, IEEE introduced the 802.11e standard, formally introducing the QoS (Quality of Service) mechanism – simply put, prioritizing data. However, 802.11e was too complex for ordinary routers to use, so the Wi-Fi Alliance extracted the core functionality and created a "simplified, practical version": the WMM (Wi-Fi Multimedia) certification standard.

Most routers on the market now support WMM, which is like installing a "traffic control system" for Wi-Fi, allowing important data to pass through with priority.

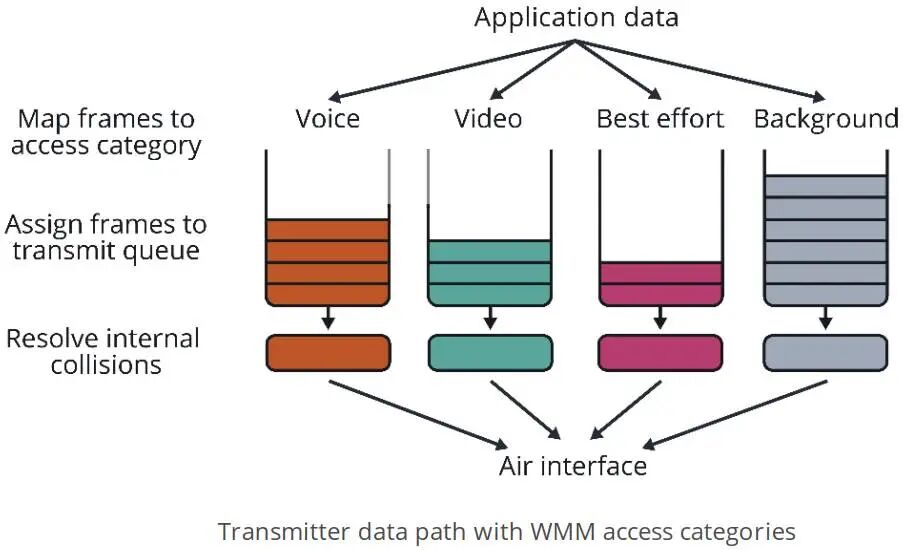

WMM's core design principle is "category-based priority"—dividing all Wi-Fi data traffic into four access categories (ACs), each with different priorities. This is analogous to creating four dedicated "highways" for vehicles with different needs, ensuring that high-priority data has priority passage. The priorities of the four access categories, from highest to lowest, are as follows:

1. AC_VO（Voice Channel）：VIP of VIPs

2. AC_VI（Video Channel）：Second-highest level benefits

3. AC_BE（Normal lane）：Daily commute

This is the most commonly used default level, covering most everyday online applications such as web browsing, WeChat text chat, and email. This type of data has lower real-time requirements and allows for a certain degree of latency. WMM will allocate the remaining channel resources to it while ensuring high-priority traffic.

4. AC_BK（Background Channel）：Late night slow lane

This has the lowest priority and is used for non-urgent data transfers such as file downloads, system updates, and printer jobs. This type of data can be transferred slowly in the background, and even if there is a long delay, it will not affect the user experience. WMM will schedule this type of data only after all other high-priority traffic has been transferred.

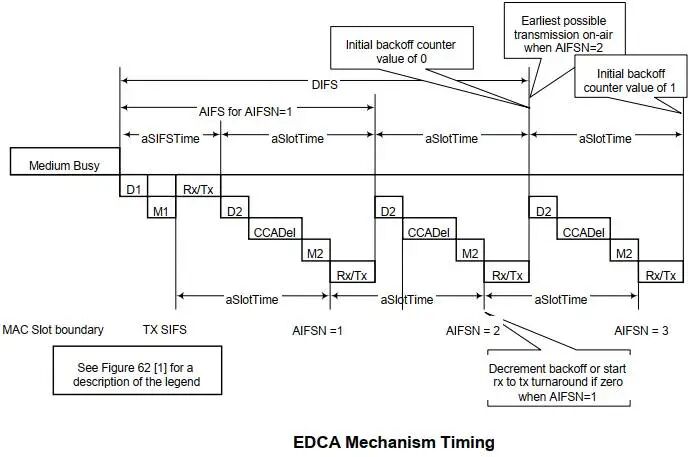

Many people wonder: "In the same competitive channel, how does WMM ensure that high-priority traffic is always sent first?" The answer lies in its underlying EDCA (Enhanced Distributed Channel Access) mechanism – it is not a simple "queue jumper", but rather adjusts three core parameters to allow high-priority traffic to "start faster, wait less, and travel longer".

1. AIFSN（Arbitration Frame Gap Number）："Starting wait time"

• AC_VO (voice) typically has an AIFSN of 1, resulting in the shortest waiting time;

• AC_BK (background stream) AIFSN is usually 7, which results in the longest waiting time.
  This means that once voice data is ready, it can enter the "race" phase more quickly, while background data needs to wait longer to avoid conflict with critical traffic.

2.CWmin/CWmax（Competition Window）："Random Waiting Range"

After the AIFSN timeout period, the device enters a "random backoff" phase—counting down from a random number until it reaches 0 before it can preempt the channel. The range of this random number is determined by CWmin (minimum contention window) and CWmax (maximum contention window).

• High-priority traffic (such as AC_VO) has a smaller CWmin/CWmax ratio (e.g., CWmin=15, CWmax=31), a narrower range of random numbers, and is easier to count down quickly.

• Low-priority traffic (such as AC_BK) has a larger CWmin/CWmax ratio (e.g., CWmin=1023, CWmax=2047), a wider range of random numbers, and a longer waiting time.


  Simply put, voice data has a "higher chance of winning the lottery" and can secure channel usage rights more quickly.




3.TXOP (Transfer Opportunity): "Continuous Passage Duration"

Once a channel is secured, the TXOP (Transmission Optimization Period) determines the maximum time a device can continuously transmit data. Higher priority traffic has a longer TXOP.

• The TXOP of AC_VO and AC_VI is usually 8ms or 16ms, which can send more data at once and reduce the overhead of competing for the channel again.

• The TXOP of AC_BE and AC_BK is usually 3ms to avoid occupying the channel for a long time and affecting other traffic.
  This design ensures the continuity of high-volume real-time services such as video and voice.

Let's take VoWi-Fi (Wi-Fi voice call), a commonly used technology, as an example to see how QoS and WMM are integrated throughout the entire transmission process to ensure clear and smooth calls:

1. Tagging: Giving voice data a "VIP label"

2. Mapping: Mapping labels to WMM queues

When a data packet arrives at the Wi-Fi driver layer, the driver reads the DSCP tag and maps it to the corresponding WMM queue. The EF/CS5 tag is directly mapped to the highest priority AC_VO queue, ensuring that voice data enters the "fastest lane".

3. Transmission: Channel preemption via EDCA

Voice data in the AC_VO queue competes for channels according to the EDCA rules: AIFSN is the shortest (fast start), CWmin/CWmax is the smallest (fast countdown), and TXOP is the longest (continuous transmission). Therefore, it can always grab the channel faster than traffic such as file download (AC_BK) and web browsing (AC_BE). Even if the bandwidth is full, the call is still clear and smooth.

Let's take VoWi-Fi (Wi-Fi voice call), a commonly used technology, as an example to see how QoS and WMM are integrated throughout the entire transmission process to ensure clear and smooth calls:

• Confirm device supports WMM：Most Wi-Fi 5/6 devices have WMM enabled by default. You can find the "QoS" or "WMM" option in your router settings and make sure it is enabled.

• Manually mark critical traffic：Some high-end routers support "application priority settings", which allows you to manually set video conferencing (such as Zoom, Tencent Meeting) and voice call apps to high priority and automatically map them to the AC_VO/AC_VI queue;

• Avoid bandwidth abuse：Limit the bandwidth of AC_BK type traffic such as background downloads and cloud backups, or set it to run only during off-peak hours at night to reduce the impact on critical business operations;

• Enterprise-level optimization：For office networks, DSCP tagging rules can be configured through switches or routers to ensure that core business operations such as voice and video conferencing are transmitted with priority.

QoS and WMM technologies completely solve the problem of "disorderly traffic contention" in Wi-Fi through the logic of "classification scheduling + priority contention". WMM's four traffic categories clearly define the priority of different services, while the EDCA mechanism, through fine-tuning parameters, ensures that critical traffic receives "VIP treatment". Whether it's everyday voice calls and video streaming, or enterprise HD conferencing and IoT device transmission, this mechanism silently optimizes bandwidth allocation to ensure that every type of traffic receives a suitable transmission experience.

Understanding how QoS and WMM work can not only help you troubleshoot the root cause of Wi-Fi lag, but also allow you to maximize the value of limited bandwidth through proper configuration optimization – this is the key leap for Wi-Fi technology from "being able to access the internet" to "having a good internet connection".
