Vending Machine Connectivity: 4G Router for Unattended Retail

1. Communication Challenges in Self-Service Retail

When deploying vending machines in locations such as shopping malls, schools, tourist attractions, and high-speed rail stations, a common challenge arises: these devices are often placed in areas without wired broadband access or where cabling is costly. Meanwhile, operators need real-time visibility into sales data, inventory levels, and operational status for each machine.

The traditional approach of manual inspections—regularly dispatching staff to check inventory and handle faults—is not only costly but also suffers from delayed response. Any machine failure or stock-out during peak hours directly impacts revenue and user experience.

2. Overall Solution Architecture

To address the connectivity needs of vending machines, a solution centered on the MovingComm ComIn I2100 Series 4G Industrial Router establishes a complete data path from the device to the management platform:

Device Access Layer: The vending machine's main control board connects to the I2100 router via serial ports (RS232/RS485) or Ethernet. The I2100 provides standard RS232/RS485 serial ports, Ethernet ports, and WiFi interfaces, enabling direct connection to serial devices, Ethernet devices, and WiFi devices with data transparent transmission functionality. The router connects to the internet via 4G cellular networks, eliminating the need for wired broadband.

Data Transmission Layer: The router establishes an encrypted VPN tunnel with the cloud management platform, reporting real-time data on device status, temperature, door open/close status, and gravity-based billing data. It also receives commands from the cloud, including product dispensing, price adjustments, and firmware upgrades. The I2100 supports VPN client functionality to ensure data transmission security.

Platform Management Layer: The cloud platform provides centralized monitoring for vending machines across various locations, displaying online status, inventory levels, and revenue data, while supporting remote price adjustments, fault diagnosis, and OTA upgrades. The I2100 supports remote management via the device cloud platform, with a clean graphical interface allowing users to monitor device status anytime, anywhere.

3. Key Capabilities of the I2100 Industrial Router

3.1 Industrial-Grade Reliability

Vending machines are frequently deployed in outdoor or semi-outdoor environments, facing summer heat, winter cold, dust, and humidity.

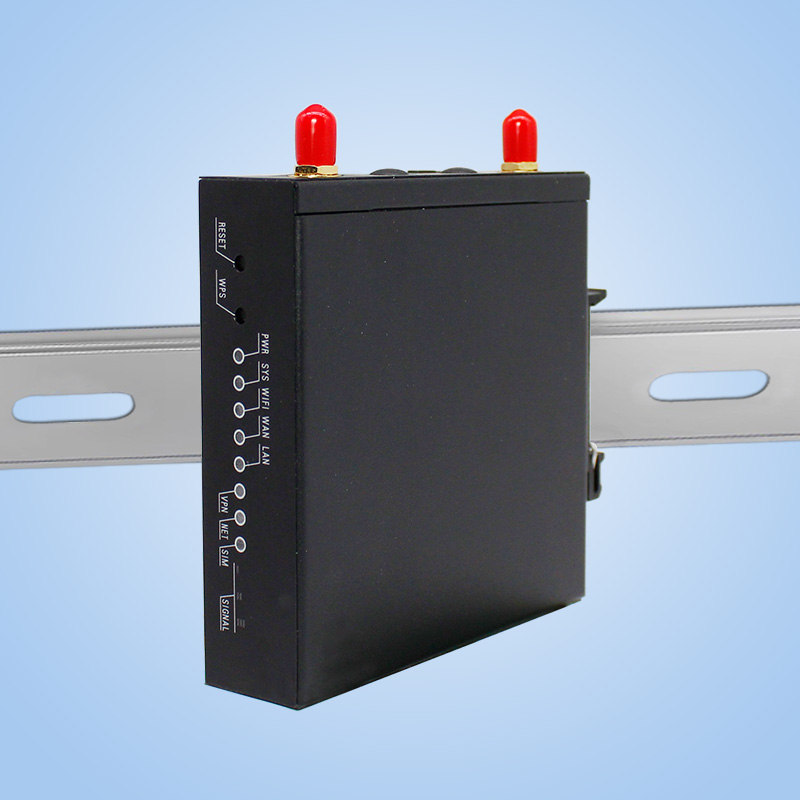

The ComIn I2100 features a metal enclosure design with isolation protection, making it particularly suitable for industrial control applications. It supports wide voltage input (6-40VDC) with standard 12VDC power input and built-in reverse power protection. Its professional enclosure design also supports quick installation and deployment.

3.2 Dual Watchdog and Always-On Connectivity

A vending machine going offline directly impacts the consumer's purchasing experience.

The I2100 incorporates a dual watchdog design to ensure system stability and support long-term reliable operation. Its external communication employs a comprehensive anti-disconnection mechanism to ensure the data terminal always stays online. It also provides comprehensive interface protection: Ethernet ports with built-in 1.5KV electromagnetic isolation protection, SIM/UIM interfaces with built-in 1.5KV ESD protection, and power interfaces with built-in reverse and overvoltage protection.

3.3 4G Full-Netcom and Rich Interfaces

No dedicated broadband line is needed; devices connect simply by inserting a SIM card.

The I2100 supports mainstream 4G LTE FDD, TDD, and 3G cellular data network bands. It provides 1 Ethernet WAN/LAN multiplexed RJ45 port, 1 Ethernet LAN RJ45 port, an industrial Phoenix terminal block (for serial and power), and a drawer-style SIM/UIM card slot. It can simultaneously connect to serial devices, Ethernet devices, and WiFi devices, providing data transparent transmission functionality.

3.4 Remote Operations and Maintenance Capability

The I2100 supports remote management via the device cloud platform, allowing operations teams to remotely monitor online status, signal strength, and data usage for each vending machine, and to deploy configurations or firmware updates in batches. Automatic alerts trigger when devices go offline or experience faults, enabling targeted interventions without routine site visits.

4. Typical Workflow

Device Initialization: After the vending machine is powered on, the I2100 industrial router automatically establishes a cellular connection and sets up an MQTT long-link to the cloud management platform. Device ID, temperature, door status, and other heartbeat data are reported in real time.

Daily Operations: When consumers scan a QR code to pay, the cloud sends a dispensing command, which is transmitted via the router to the vending machine's main control board to execute the sale. Sales data and inventory changes are uploaded in real time, enabling operators to view revenue and stock levels on the backend.

Remote Maintenance: When inventory falls below a threshold or a device anomaly occurs, the platform triggers an alert. Operations staff remotely review logs to determine if restocking or a site visit is required. Firmware updates and parameter adjustments can be carried out remotely.

5. Solution Value

6. Conclusion

The shift from a traditional "place and operate" model to a data-driven, remote-maintenance approach for vending machines depends on robust underlying connectivity. The MovingComm ComIn I2100 Series 4G Industrial Router solves the networking challenges of distributed devices through industrial-grade design, dual-watchdog reliability, 4G full-netcom support, and cloud platform remote management capabilities, enabling truly around-the-clock, low-cost unattended retail operations.
