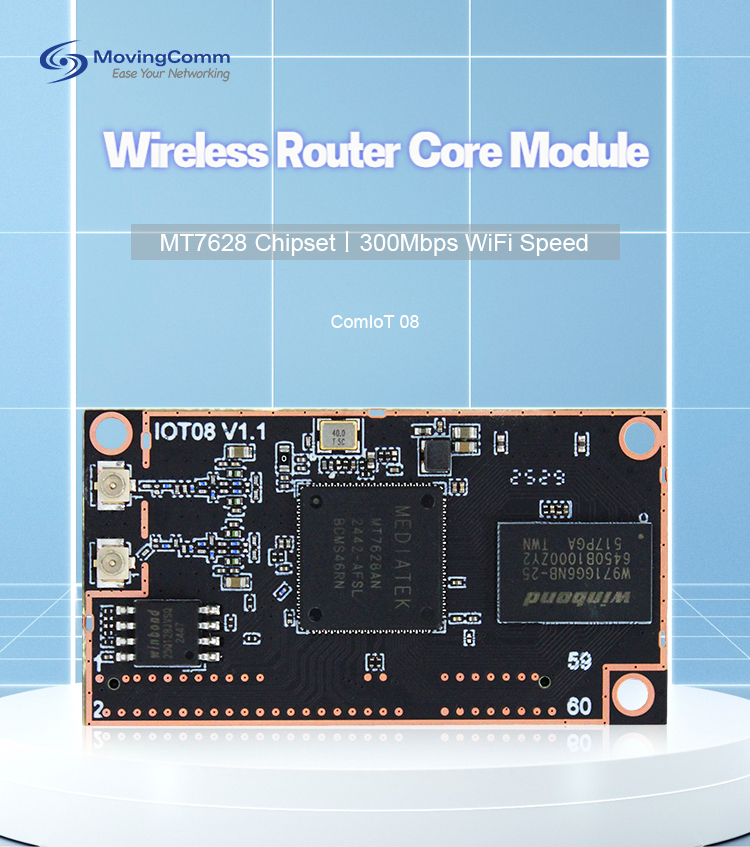

ComFi IOT08 WiFi Module

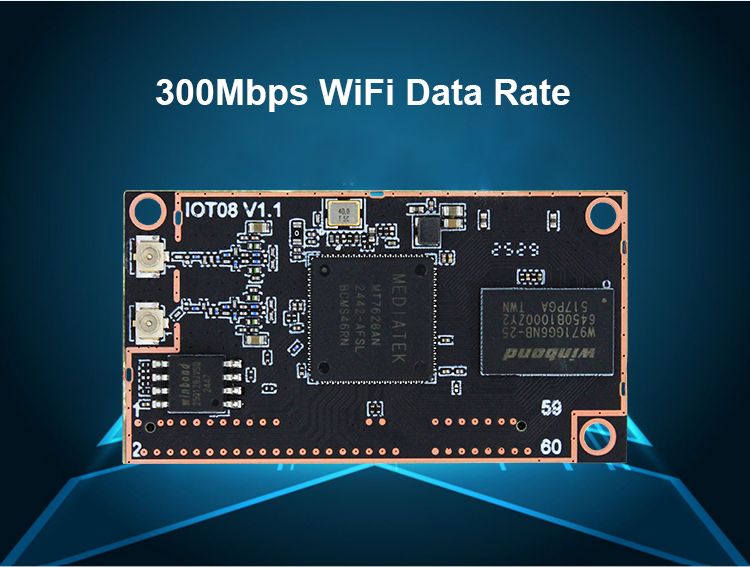

ComFi 08 is based on MTK’s MT7628 solution, this router WiFi module integrates 802.11n 2×2 MAC/BB/radio and internal PA and LNA. It supports 802.11n, 20 MHz & 40 MHz channels up to 150 Mbps and 300 Mbps, respectively, and IEEE 802.11b/g protocol data rates. The module supports OpenWRT operating system, supports AP mode and client mode at the same time, and includes various application software to reduce the development and design work of customers.

six characteristics

The soul of any outstanding router WiFi module stems from its core chip solution. ComFi IOT08 has chosen the highly acclaimed Mediatek MT7628 solution in the industry, which in itself is a strong endorsement of its high performance and high integration. MT7628 is not a simple wireless chip. It is a highly integrated system-on-chip that lays a solid technical foundation for the ComFi IOT08 router WiFi module.

1.1 Highly integrated wireless core

The most notable feature of the MT7628 solution is that it integrates a complete 802.11n 2×2 MAC/BB/radio unit internally, and is equipped with a power amplifier and a low-noise amplifier. This means that as a router WiFi module, ComFi IOT08 has a powerful wireless transceiver capability at the hardware level. This integrated design brings two significant advantages:

Outstanding performance and stability: The built-in PA and LNA can effectively enhance the transmission power and reception sensitivity of the signal, ensuring that the ComFi IOT08 router WiFi module can still provide stable and long-distance wireless coverage in complex electromagnetic environments. The 2×2 MIMO (Multiple Input Multiple Output) architecture it supports is a signature technology of modern router WiFi modules. By using two antennas at the transmitting and receiving ends respectively, it achieves spatial multiplexing and diversity, greatly enhancing the data transmission rate and connection reliability. At a frequency width of 40MHz, its wireless transmission rate can reach up to 300Mbps, which is sufficient to handle high-bandwidth applications such as high-definition video streaming and large file transfer, making it worthy of the title of high-performance router WiFi module.

Design simplification and cost optimization: High integration means a reduction in the number of external components. For terminal equipment manufacturers, adopting a highly integrated router WiFi module like ComFi IOT08 can significantly simplify the PCB layout design of their products, reduce the difficulty of R&D and material costs, and thereby accelerate the process of product launch. This is precisely one of the core values that modern router WiFi modules bring to the industry.

1.2 Powerful processing performance and storage configuration

An excellent router WiFi module must not merely be a “pipe”; it should also possess certain “brain” functions. The ComFi IOT08 is based on the MT7628DAN chip, equipped with a processor with a main frequency of up to 580MHz, and is also equipped with 128MB of RAM and 8MB of Flash. Such a configuration can be regarded as luxurious among similar router WiFi modules.

580MHz main frequency processor: This powerful heart enables ComFi IOT08 not only to handle the forwarding of wireless data, but also to easily run complex network protocols, conduct in-depth detection of data packets, and even run lightweight applications. It endows this router WiFi module with edge computing capabilities, enabling preliminary processing and analysis at the data source, reducing the pressure on cloud servers, and enhancing the response speed and efficiency of the entire system.

128MB RAM and 8MB Flash: The abundant memory ensures the smoothness of multi-task parallel processing. Even in the case of multiple device connections and high data throughput, this router WiFi module can maintain stable operation. The 8MB Flash storage space provides ample room for firmware, operating systems, and user-defined applications. This powerful configuration that combines software and hardware makes ComFi IOT08 no longer a passive router WiFi module, but an intelligent node that can actively perform tasks.

High-performance processor

The soul of any outstanding router WiFi module stems from its core chip solution. ComFi IOT08 has chosen the highly acclaimed Mediatek MT7628 solution in the industry, which in itself is a strong endorsement of its high performance and high integration. MT7628 is not a simple wireless chip. It is a highly integrated system-on-chip that lays a solid technical foundation for the ComFi IOT08 router WiFi module.

1.1 Highly integrated wireless core

The most notable feature of the MT7628 solution is that it integrates a complete 802.11n 2×2 MAC/BB/radio unit internally, and is equipped with a power amplifier and a low-noise amplifier. This means that as a router WiFi module, ComFi IOT08 has a powerful wireless transceiver capability at the hardware level. This integrated design brings two significant advantages:

Outstanding performance and stability: The built-in PA and LNA can effectively enhance the transmission power and reception sensitivity of the signal, ensuring that the ComFi IOT08 router WiFi module can still provide stable and long-distance wireless coverage in complex electromagnetic environments. The 2×2 MIMO (Multiple Input Multiple Output) architecture it supports is a signature technology of modern router WiFi modules. By using two antennas at the transmitting and receiving ends respectively, it achieves spatial multiplexing and diversity, greatly enhancing the data transmission rate and connection reliability. At a frequency width of 40MHz, its wireless transmission rate can reach up to 300Mbps, which is sufficient to handle high-bandwidth applications such as high-definition video streaming and large file transfer, making it worthy of the title of high-performance router WiFi module.

Design simplification and cost optimization: High integration means a reduction in the number of external components. For terminal equipment manufacturers, adopting a highly integrated router WiFi module like ComFi IOT08 can significantly simplify the PCB layout design of their products, reduce the difficulty of R&D and material costs, and thereby accelerate the process of product launch. This is precisely one of the core values that modern router WiFi modules bring to the industry.

1.2 Powerful processing performance and storage configuration

An excellent router WiFi module must not merely be a “pipe”; it should also possess certain “brain” functions. The ComFi IOT08 is based on the MT7628DAN chip, equipped with a processor with a main frequency of up to 580MHz, and is also equipped with 128MB of RAM and 8MB of Flash. Such a configuration can be regarded as luxurious among similar router WiFi modules.

580MHz main frequency processor: This powerful heart enables ComFi IOT08 not only to handle the forwarding of wireless data, but also to easily run complex network protocols, conduct in-depth detection of data packets, and even run lightweight applications. It endows this router WiFi module with edge computing capabilities, enabling preliminary processing and analysis at the data source, reducing the pressure on cloud servers, and enhancing the response speed and efficiency of the entire system.

128MB RAM and 8MB Flash: The abundant memory ensures the smoothness of multi-task parallel processing. Even in the case of multiple device connections and high data throughput, this router WiFi module can maintain stable operation. The 8MB Flash storage space provides ample room for firmware, operating systems, and user-defined applications. This powerful configuration that combines software and hardware makes ComFi IOT08 no longer a passive router WiFi module, but an intelligent node that can actively perform tasks.

Rich interface

If the powerful chip solution is the “inner strength” of ComFi IOT08, then its rich functional features are the “tricks” it showcases externally. These features together form the complete profile of it as a top-tier router WiFi module.

2.1 Openness and Flexibility: The Infinite Possibilities of the OpenWRT Operating System

Among the numerous router WiFi modules, whether they support open-source operating systems is an important criterion for measuring their flexibility and scalability. ComFi IOT08 perfectly supports the widely popular OpenWRT operating system, which endows it with unlimited vitality. OpenWRT is a highly modular and highly customizable embedded Linux distribution, specifically designed for network devices.

For developers, choosing ComFi IOT08, a router WiFi module that supports OpenWRT, means they have obtained a powerful development platform. They can easily compile and install various software packages to achieve customized functions. For instance, specific VPN protocols can be added to ensure the security of data transmission, MQTT clients can be installed to seamlessly integrate with the Internet of Things cloud platform, and even dedicated management interfaces can be developed. This openness enables the ComFi IOT08 router WiFi module to perfectly adapt to the ever-changing application requirements, truly achieving “one module, multiple uses”.

2.2 Dual-mode Concurrency: The perfect integration of AP mode and client mode

As an advanced router WiFi module, another highlight of ComFi IOT08 is that it can support both AP (Access Point) mode and client (Station) mode simultaneously. This function has greatly expanded its application scenarios.

AP mode: In this mode, ComFi IOT08 acts as a wireless hotspot and can provide network access for other WiFi devices such as mobile phones, tablets, and sensors. In applications such as smart home gateways and portable hotspots, this mode is a fundamental function of the router WiFi module.

Client mode: In this mode, ComFi IOT08 can connect to the existing WiFi network just like a regular device, thereby obtaining a network connection. This enables it to provide wireless bridging capabilities for wired devices that do not have wireless networking capabilities themselves, such as industrial printers and old serial port devices.

“Simultaneous support” is key. This means that the ComFi IOT08 router WiFi module can connect to the upper-level router as a client on one side and provide the network for the lower-level devices as an AP on the other side, forming a flexible wireless relay or gateway. This dual-mode concurrent capability plays a crucial role in the construction of network topology and is an important indicator to measure whether a router WiFi module is professional.

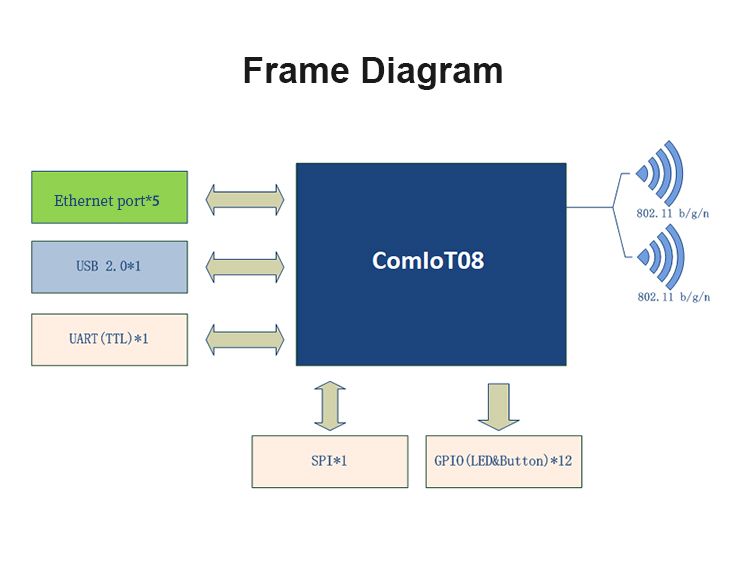

2.3 Rich peripheral interfaces: The bridge connecting everything

The value of an excellent router WiFi module lies not only in wireless connection but also in how it connects the wireless world with the physical world. ComFi IOT08 performs extremely well in this aspect. It provides a rich array of peripheral interfaces, making it a truly deserving “connection hub”.

Five 10/100M adaptive network ports: This is extremely rare on such a compact router WiFi module. These five LAN ports enable it to be directly used as a small router or switch, connecting multiple wired devices. In scenarios such as small offices, retail stores or smart classrooms, users do not need to purchase additional switches. They can build a complete local area network with just the ComFi IOT08 router WiFi module.

One USB2.0 host interface: This interface brings unlimited expansion possibilities to the ComFi IOT08 router WiFi module. Users can connect a USB flash drive to achieve simple NAS (Network Attached Storage) functions for file sharing or data recording. It can also be connected to a 3G/4G Internet card to upgrade it to a 4G router WiFi module, achieving the integration of cellular networks and WiFi networks. It can even be connected to USB peripherals such as cameras and printers, bringing about a qualitative leap in the functionality of the entire module.

UART interface: In the fields of the Internet of Things and industrial control, the UART (Universal Asynchronous Transceiver) interface is indispensable. It enables the ComFi IOT08 router WiFi module to communicate directly with various microcontrollers, sensors and serial port devices. Through this interface, the ancient serial port data can be easily encapsulated into IP packets and transmitted to the cloud via WiFi networks, achieving the “wireless” and “intelligent” transformation of traditional industrial equipment.

Compact design

Under the trend of increasing miniaturization and portability of Internet of Things (iot) devices, the physical size and power consumption of router WiFi modules have become key design considerations. ComFi IOT08 demonstrates an ultimate pursuit in design, bringing the concept of “small but beautiful” to the extreme.

3.1-millimeter-level art: extremely compact physical dimensions

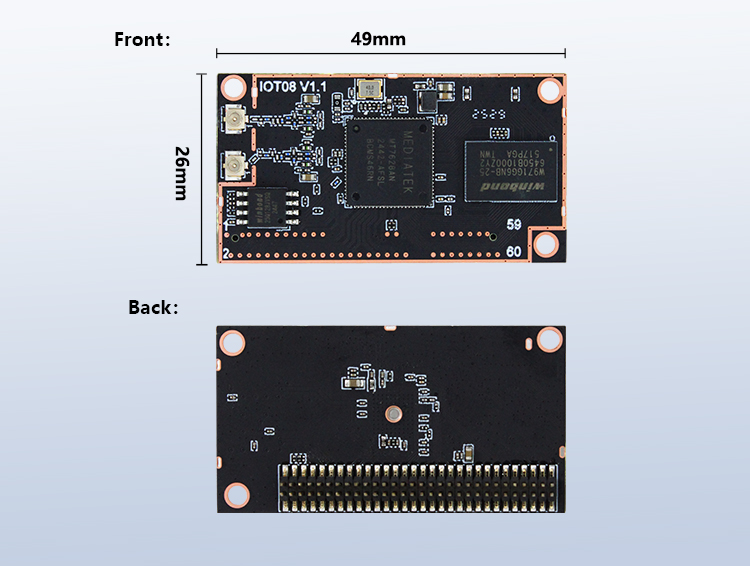

The external dimensions of ComFi IOT08 are only 49mm (width) ×26mm (length) ×1.0mm (thickness), and the weight is only 15 grams. This is almost equivalent to the area of a business card and the weight of several coins. Such a compact size makes it one of the most compact router WiFi modules on the market.

This extreme compact design endows ComFi IOT08 with unparalleled integration advantages. It can be easily embedded into the interior of any space-constrained device without imposing any burden on the overall structural design of the product. Imagine that in the pursuit of ultimate lightweight drones, in the precisely structured medical monitors, and in the various forms of smart home devices, the ComFi IOT08 router WiFi module can be seamlessly integrated, providing them with powerful wireless connection capabilities. And it hardly occupies any precious internal space by itself. This is precisely the highest embodiment of the design art of modern router WiFi modules.

3.2 Low power consumption and high stability: The ideal choice for mobile and portable devices

Small size often comes with high requirements for power consumption and heat dissipation. ComFi IOT08, as a mature router WiFi module, performs excellently in power consumption control. Its solution based on MT7628 is renowned for its low power consumption. Combined with an optimized circuit design, it offers powerful performance while still maintaining a relatively low energy consumption level.This is crucial for battery-powered mobile and portable devices. Adopting the ComFi IOT08 router WiFi module can effectively extend the battery life of the device and enhance the user experience. Meanwhile, its highly stable design ensures that it can maintain a stable connection even in long-term continuous operation or slight vibration environments, and will not easily disconnect or freeze. This low power consumption and high stability feature makes it an ideal choice for router WiFi modules in applications such as drones, handheld terminals, and mobile POS machines.

Application scenarios

With its comprehensive and powerful features, ComFi IOT08 is applied in almost every corner of the Internet of Things, becoming a truly “universal” router WiFi module.

4.1 Smart Home: The core of building a smart home network

In the field of smart home, ComFi IOT08 can serve as the core router WiFi module of the smart gateway. It provides stable WiFi connections for all smart devices in the home, such as smart bulbs, smart sockets, and smart cameras, through AP mode. Meanwhile, its rich LAN ports can be connected to wired devices such as TVS and desktop computers, and the USB interface can even be connected to home hard drives, creating a home data center. Its OpenWRT system enables users to install open-source smart Home software such as Home Assistant, achieving intelligent interconnection and automatic control of all devices in the house. As the router WiFi module of the home network, ComFi IOT08 is the hub that connects all smart devices and realizes scenario-based experiences.

4.2 Internet of Things and Industrial Automation: Intelligent Upgrading of Traditional Equipment

In the wave of the Internet of Things and Industry 4.0, a large number of traditional devices need to be connected to the network to achieve data collection and remote monitoring. The UART interface and client mode of ComFi IOT08 make it the perfect router WiFi module for this task. It can be connected to the serial ports of industrial equipment such as PLCS, CNC machine tools, and electricity meters, and upload the operation data of the equipment to the cloud platform in real time through the WiFi network. Engineers can remotely monitor the status of equipment, conduct predictive maintenance and optimize production processes without having to be on-site. Its robust design and high stability are sufficient to meet the challenges of industrial environments, making it a key router WiFi module for promoting the transformation of traditional manufacturing to intelligent manufacturing.

4.3 Intelligent Security: Building an Ubiquitous Monitoring Network

Security monitoring equipment, such as network cameras, has extremely high requirements for the stability and bandwidth of the router WiFi module. The 300Mbps wireless rate and 2×2 MIMO technology of ComFi IOT08 can ensure the stable transmission of high-definition video streams without any lag or delay. It can serve as an integrated router WiFi module for wireless cameras, or as a central node for small security systems, connecting multiple wired and wireless cameras and pushing video data to the cloud or NVR. In situations where temporary deployment of monitoring is required, such as construction sites and event security, the portable monitoring solution based on ComFi IOT08 can be quickly set up, efficiently and flexibly.

4.4 Medical and Health Care: A Data Channel for Safeguarding Life

In the field of medical and health care, the reliability of equipment and the security of data come first. ComFi IOT08 can serve as a router WiFi module for portable monitors, mobile care terminals and other devices, transmitting patients’ vital sign data (such as heart rate, blood pressure, blood oxygen) in real time and securely to medical care workstations. Its stable connection ensures the continuity of data, providing accurate basis for doctors’ diagnosis. Meanwhile, its compact size also makes it easy to integrate into various handheld or wearable medical devices, reducing the burden on medical staff and improving the quality of medical services.

4.5 Education and Entertainment: Unlocking New Interactive Experiences

In the fields of smart classrooms and interactive entertainment, ComFi IOT08 also has great potential. It can serve as a router WiFi module for electronic whiteboards, student tablets, interactive toys and other devices, building a high-speed local area network that supports simultaneous online interaction among multiple people, high-definition content sharing, real-time game battles, etc. Its powerful processing capabilities can easily handle the challenge of concurrent connections across multiple devices, providing a smooth and immersive interactive experience for teachers, students and players.

ComFi IOT08, with its highly integrated design, powerful wireless performance, rich interface support, low power consumption and high stability, support for multiple development systems, wide application scenarios and extremely high cost performance, has undoubtedly become the preferred router WiFi module solution in the fields of the Internet of Things and wireless communication. Whether you are a developer of smart home products, an integrator of industrial automation, or an innovator of medical and health equipment, when you are looking for a core component that can inject powerful connection capabilities into your products, ComFi IOT08 router WiFi module will be your most reliable partner. Choosing ComFi IOT08 means choosing a powerful, flexible and future-oriented connection core, which will help your products ride the waves and move steadily and far in the era of the Internet of Everything.
