Crazy! Wide Area Network Routers: 3 Major Secrets

When we talk about the coverage of industrial wide area network routers, we are actually discussing a complex systems engineering problem. It is by no means a simple number, but a dynamic outcome determined by multiple variables. Understanding these variables is the first step in choosing and applying an industrial wide area network router.

• 1.1 Physical Laws of Wireless Propagation: The environment is the first touchstone

• The propagation of wireless signals in space is essentially an electromagnetic wave behavior, and its path loss and attenuation follow strict physical laws. The coverage capability of industrial wide area network routers is first and foremost severely tested by the environment in which they are located.

• Line-of-sight and non-line-of-sight propagation: In open and unobstructed line-of-sight environments such as plains and sea surfaces, signal energy attenuation is minimal, and the 4G/5G signals of industrial wide area network routers can easily cover tens of kilometers. However, in the vast majority of industrial scenarios, signals need to penetrate obstacles such as walls, metal shelves, and mechanical equipment to enter a non-line-of-sight transmission mode. At this point, the attenuation of the signal will increase sharply. The combined effect of transmission loss, diffraction loss and reflection loss greatly compresses the coverage area. An excellent industrial wide area network router must, from the very beginning of its design, consider how to maintain usable signal strength in these complex non-line-of-sight environments.

• The challenge of material penetration: Common materials in industrial environments such as reinforced concrete structures, metal plates, and liquid containers are all fatal killers to wireless signals. For instance, a 2.4GHz WiFi signal may be attenuated by approximately 10 to 15dB when passing through a brick wall, and by more than 30dB when passing through a metal plate, almost completely shielded. The cellular network module (4G/5G) of industrial wide area network routers is superior to ordinary WiFi in terms of penetration precisely because it operates in lower frequency bands (such as 700MHz, 900MHz, 1800MHz, etc.), with longer wavelengths and stronger diffraction and penetration capabilities. This is also the fundamental physical basis for industrial wide area network routers to achieve wide area coverage.

• 1.2 The core strength of the equipment itself: Performance is the intrinsic driving force for coverage

• If the environment is an external constraint, then the hardware performance of an industrial wide area network router itself is the internal engine that enables it to break through these constraints and achieve outstanding coverage.

• Rf power and receiving sensitivity: These are two core indicators for evaluating the wireless performance of industrial wide area network routers. Radio frequency power determines how far a signal can travel, while receiving sensitivity determines how far it can hear weak signals. High-end industrial wide area network routers typically employ higher-power RF modules and are equipped with highly sensitive receivers to achieve bidirectional enhancement. This means that it can not only powerfully transmit signals to distant places, but also precisely capture the weak signals sent back by remote devices from the noisy background noise, thereby establishing a stable and reliable long-distance communication link.

• The Art of Antenna Systems: Antennas are the throat through which industrial wide area network routers exchange energy with the outside world. Its design, gain and type directly affect the shape and distance of coverage. Although the built-in antenna is aesthetically pleasing, its gain and directionality are limited. Many professional industrial wide area network routers, such as the ComFi I2200, offer external antenna interfaces, allowing users to flexibly choose high-gain omnidirectional or directional antennas based on actual scenarios. For instance, in scenarios where 360-degree coverage is required, use high-gain omnidirectional antennas; In point-to-point long-distance transmission, the use of high-gain directional antennas theoretically can extend the WiFi coverage of industrial wide area network routers to an astonishing 30 kilometers or even further, which is precisely the ultimate demonstration of the flexibility of industrial wide area network routers.

• The manufacturing process and calibration of wireless modules: Even among 4G modules, products from different manufacturers and of different grades vary greatly in performance. Top-of-the-line industrial wide area network routers will adopt industrial-grade communication modules. These modules are more meticulous in chip selection, circuit design, and heat dissipation treatment, and have undergone strict RF performance tuning to ensure that their transmission power and reception sensitivity remain stable under various temperatures and electromagnetic interferes, thereby guaranteeing consistent coverage for a long time.

• 1.3 Selection of Network Standards: Genetic Differences in Wide Area Coverage

• The “wide area” attribute of industrial wide area network routers mainly relies on cellular network technology. Different cellular network standards have inherent genetic differences in their coverage capabilities.

• The maturity and popularization of 4G LTE: As the mainstream technology of current industrial wide area network routers, 4G LTE networks have wide coverage and mature technology. Its coverage characteristics vary across different frequency bands. Low-frequency bands (such as B5/B8) have wide coverage and strong penetration, making them the preferred choice for industrial wide area network routers to achieve deep coverage and wide area coverage. High-frequency bands (such as B3/B1) have large capacity and high speed, making them suitable for high-density data services. An excellent industrial wide area network router usually supports multi-band aggregation, intelligently selects the optimal network, and takes into account both coverage and performance.

• The future of 5G NR has arrived: 5G technology has brought revolutionary improvements to industrial wide area network routers. Its Sub-6GHz frequency band combines the advantages of coverage and bandwidth, while the millimeter-wave frequency band can provide ultra-large capacity and ultra-low latency. 5G industrial wide area network routers not only mean faster speeds, but also greatly enhance spectral efficiency and connection reliability through technologies such as massive MIMO and beamforming. Even in complex environments, they can provide stable and high-quality connections, which is the inevitable direction of the future development of industrial wide area network routers.

Having understood the source of the coverage capability of industrial wide area network routers, we need to explore even more what irreplaceable values they bring to industrial applications? Why is it becoming an inevitable choice for building a modern industrial Internet of Things?

• 2.1 Disruptive deployment flexibility and cost-effectiveness

• Traditional industrial networks rely on optical fibers and network cables. Their deployment model is like building fixed railways for factories. Once built, it is extremely difficult to make changes. Industrial wide area network routers, on the other hand, are like equising factories with countless helicopters that can take off and land at any time, bringing unprecedented flexibility.

• Quick deployment and plug-and-play: In new projects or temporary applications (such as large-scale events, disaster relief), industrial wide area network routers do not require complex wiring construction. Just power on and insert the SIM card, and a high-speed network connection can be established within minutes. This ability to go live quickly has greatly shortened the project cycle and seized fleeting business opportunities.

• Reduce total cost of ownership: For assets with wide geographical distribution, such as power towers, oil and gas Wells, water conservancy gates, agricultural monitoring points, etc., the cost of laying optical fibers can be astronomical, and the later maintenance cost is high. Industrial wide area network routers, by leveraging the ubiquitous cellular networks of operators, convert high dedicated line fees and complex construction costs into controllable data package fees, and their total cost of ownership advantage is extremely significant. This is precisely the core reason why “industrial wide area network routers” have shone brightly in fields such as smart cities and smart energy.

• 2.2 Outstanding mobility and seamless roaming capability

• Industrial scenarios are not always static. In fields such as intelligent transportation, logistics and warehousing, and port automation, the connected objects are moving at high speeds. The mobility support of industrial wide area network routers is another core value that distinguishes them from other network solutions.

• Stable connection under high-speed movement: The built-in cellular module of the industrial wide area network router supports communication in high-speed movement scenarios, enabling rapid switching between base stations. This ensures that network connections are not interrupted and data transmission is not packet lost on trains traveling at hundreds of kilometers per hour, AGV carts shuttling in ports, and buses running in cities. This seamless roaming capability is a prerequisite for realizing applications such as the Internet of Vehicles and intelligent dispatching.

• Empower mobile office and in-vehicle systems For engineering vehicles, emergency command vehicles, mobile vending carts, etc., industrial wide area network routers can turn the vehicles into mobile command centers or information hubs, providing stable network access for the personnel inside the vehicles, enabling real-time audio and video communication, data transmission and remote collaboration with the headquarters, greatly enhancing work efficiency and emergency response capabilities in mobile scenarios.

• 2.3 Rock-solid industrial-grade reliability and safety

• The requirements for network equipment in industrial environments far exceed those in civilian and commercial Settings. The two words “industrial grade” of the “Industrial wide Area Network router” are the fundamental guarantee for its ability to handle demanding tasks.

• Wide temperature and wide voltage design: From the icy and snowy north to the scorching factories in the south, from the voltage fluctuations in vehicles to the surge impacts of power grids, industrial wide area network routers must be capable of withstanding them. They typically operate within a wide temperature range of -40℃ to +75℃ or even wider, and support a wide voltage input of 9-48V, ensuring stable operation in extreme physical and electrical environments, which is beyond the reach of ordinary routers.

• Robust hardware protection: Metal casings and high IP protection ratings (such as IP30, IP40) are standard features of industrial wide area network routers, effectively resisting the intrusion of dust, moisture and physical impacts. At the same time, they also have strong electromagnetic compatibility and can operate normally in industrial environments with strong electromagnetic interference (such as beside frequency converters and high-power motors), without interfering with other equipment and not being disturbed by other equipment.

• End-to-end security system: Data is the core asset of industrial enterprises, and industrial wide area network routers are the key gateways for data to enter and exit the internal network. Therefore, it must build up a strong security defense line. This includes: supporting multiple VPN tunnels (IPSec, PPTP, L2TP, GRE, OpenVPN), providing encrypted channels for data transmission; Built-in SPI firewall and ACL access control to resist external network attacks; Supports APN/VPDN private network access, logically isolating the device within the operator’s dedicated network to further enhance security. This all-round security design ensures that the “industrial wide area network router” provides convenient connections without sacrificing security.

The value of theory lies in guiding practice. The powerful capabilities of industrial wide area network routers are ultimately demonstrated through their application in specific scenarios. It has permeated every corner of the national economy and has become a key force driving the digital transformation of industries.

• 3.1 Smart Energy: Neural Networks Illuminating Vast Territories

• The energy industry is characterized by a wide distribution of assets, harsh environments and high safety requirements. Industrial wide area network routers have found their broadest stage here.

• Smart grid: In the power system, from remote monitoring of substations and feeder automation to the collection of electricity consumption information by smart meters, industrial wide area network routers provide reliable communication guarantees. It connects the power equipment distributed all over the country, achieving remote signaling, remote measurement, remote control and remote regulation, which greatly enhances the automation level and power supply reliability of the power grid.

• Digitalization of oil and gas fields: In remote deserts, Gobi deserts and offshore oil fields, industrial wide area network routers serve as the nerves connecting wellhead equipment, gathering and transportation stations, and processing plants. It transmits key production data such as pressure, temperature and flow rate in real time, and supports remote start and stop control. This enables engineers to understand the dynamics of the oilfield from the command center thousands of miles away, achieving less or no personnel on duty and significantly reducing labor costs and safety risks.

• 3.2 Smart Transportation and Logistics: Building a Flowing Digital Artery

• The transportation and logistics industry pursues efficiency and safety. The mobility and high bandwidth characteristics of industrial wide area network routers make it possible to build a flowing digital artery.

• Internet of Vehicles and Smart Buses: Deploying industrial wide area network routers in buses, taxis, and ride-hailing vehicles not only provides passengers with WiFi services but also enables GPS positioning, video surveillance, dispatching information distribution, and operational data transmission of the vehicles. This helps bus companies optimize routes and improve services, and also provides real-time data support for urban traffic management.

• Smart Ports and AGV Dispatching: In modern automated ports, the transportation of containers is accomplished by hundreds or even thousands of automated guided vehicles. These AGVs need to communicate with the central control system at the millisecond level to achieve precise positioning, obstacle avoidance and path planning. 5G industrial wide area network routers, with their ultra-low latency and high reliability, have become the top choice for AGV cluster scheduling and are the core technology for ports to achieve unmanned and efficient operations.

• 3.3 Smart Factories and Manufacturing: Unblocking the Information Veins of Flexible Production

• Even in relatively centralized factory environments, industrial wide area network routers play an indispensable role due to their flexibility and reliability.

• Remote operation and maintenance of equipment: For large manufacturing equipment, manufacturers can remotely access the PLC and industrial control computer of the equipment through the industrial wide area network router deployed on the equipment to conduct fault diagnosis, program updates and preventive maintenance. This significantly shortens the service response time, reduces travel costs and enhances customer satisfaction.

• Flexible production lines and mobile terminals: In the flexible manufacturing mode where production lines need to be frequently adjusted, the redeployment of wired networks is time-consuming and labor-intensive. Industrial wide area network routers combined with industrial WiFi can provide seamless roaming network access for mobile devices such as AGVs, handheld terminals, and tablet computers, allowing workers and equipment to move freely within the workshop, achieving real-time interaction of production data, and enhancing the flexibility and efficiency of production.

Among the numerous functions of the “industrial wide area network router”, the existence of the WiFi module often provokes deep thought: since there is already a powerful cellular wide area connection, why is WiFi still needed? In fact, WiFi is not a substitute for wide area connections, but rather a crucial local extension and supplement to them. The combination of the two forms a complete industrial wide area network router connection solution.

• 4.1 A hub for local data aggregation and terminal access

• The cellular interface (4G/5G) of the “industrial wide Area network router” is responsible for connecting to the cloud upwards, while the WiFi interface is responsible for connecting to local devices downwards. In a typical industrial Internet of Things node, such as a distribution cabinet or a production unit, multiple sensors, cameras, PLCS or human-machine interaction interfaces may be connected. Most of these devices do not have cellular communication modules, but they generally support WiFi or Ethernet.

• At this point, the “industrial wide area network router” plays the role of a local gateway. It aggregates data from numerous local devices via WiFi or Ethernet, and then, through its powerful cellular module, uniformly packages and uploids it to the cloud platform. This architecture not only takes advantage of the low cost and convenient access of local WiFi deployment, but also leverages the wide-area coverage and no need for wiring of cellular networks. It is an extremely cost-effective iot access solution. The application scenarios of industrial wide area network routers without WiFi will be greatly reduced.

• 4.2 The hardcore features of Industrial-grade WiFi

• It should be emphasized that the WiFi in “industrial wide area network routers” is by no means the ordinary WiFi found in home or commercial routers. It must be industrial-grade to adapt to the harsh industrial environment.

• Strong anti-interference capability: Industrial sites are filled with electromagnetic interference generated by various motors, frequency converters, and welding equipment, which can seriously deteriorate WiFi signals. The WiFi module of industrial-grade “industrial wide area network routers” usually adopts a better RF shielding design, supports automatic channel avoidance and selection, and has a stronger signal error correction capability to ensure a stable WiFi connection even in noisy environments.

• High reliability and client management: Industrial applications require 7×24-hour uninterrupted operation. Therefore, the WiFi function of the “industrial wide Area Network router” must have extremely high stability and support advanced features such as WDS (Wireless Distributed System) and Mesh self-organizing networks to achieve seamless network expansion and redundant backup. At the same time, it also needs to support a large number of concurrent client accesses and be capable of effectively managing and isolating clients to prevent the failure of individual terminals from affecting the entire network.

• Flexible deployment mode: As part of the “industrial wide area network router”, its WiFi antenna can also be externally connected. Users can select an antenna with appropriate gain and direction based on on-site needs to precisely cover specific areas, avoiding signal waste and interference, and achieving efficient energy utilization.

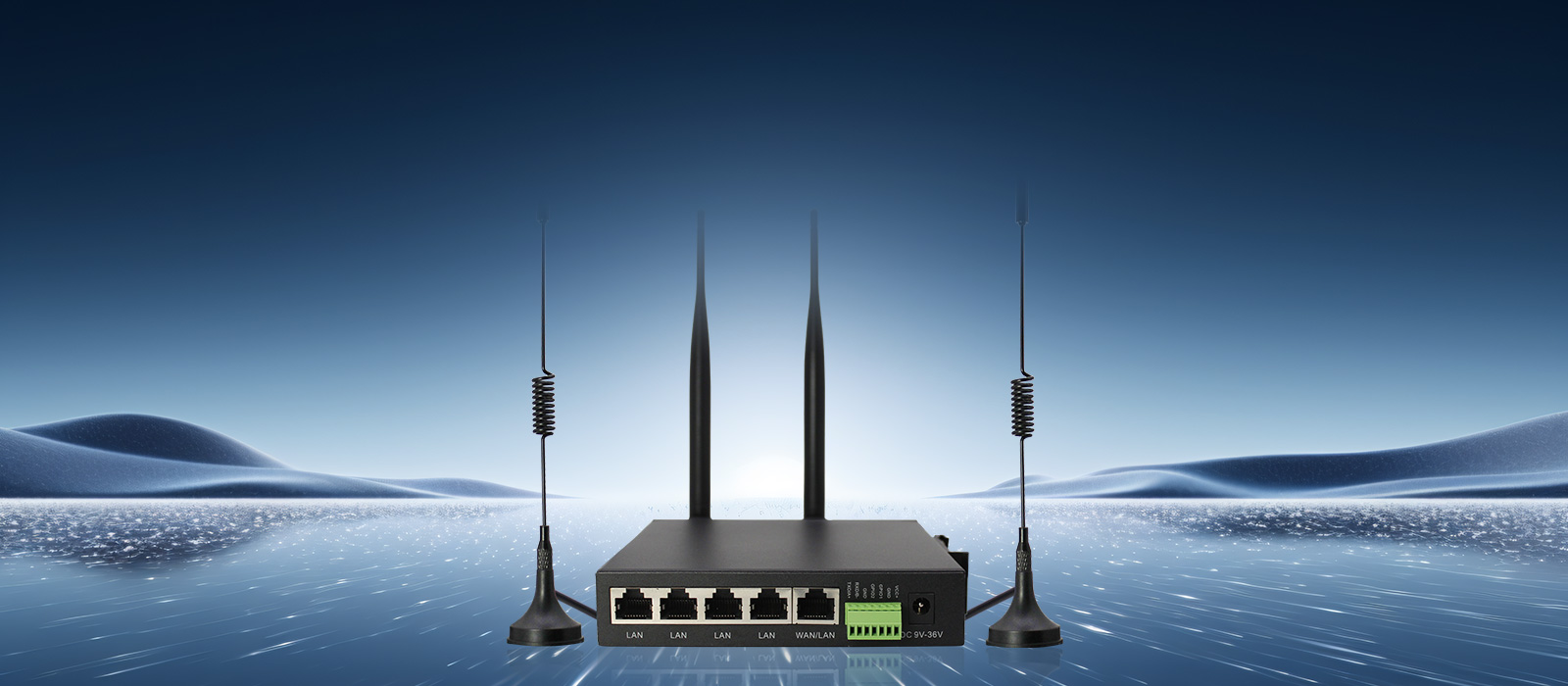

A thousand words of theory are not as practical as an excellent product. The ComFi I2200 is precisely the epitome of all the core values and technical features of the “industrial wide area network router” mentioned earlier, and it is a perfect example of its application in the industrial field.

• 5.1 Core: A powerful wide-area connection engine

• As a high-performance industrial wide area network router, the core competitiveness of ComFi I2200 lies in its outstanding wide-area connection capability. It supports full-band 4G LTE networks and can intelligently access the network with the best signal from operators, ensuring stable and high-speed uplink and downlink access in various geographical environments. Its built-in industrial-grade 4G module, which has undergone strict RF performance optimization, features high transmission power and high reception sensitivity. This directly translates into a longer coverage distance and stronger signal penetration, enabling it to maintain reliable connections even in remote areas and within complex buildings. It perfectly interprets the “wide area” nature of the ** industrial wide area network router.

• 5.2 Hub: Rich local interfaces and data aggregation capabilities

• ComFi I2200 deeply understands the role of an “industrial wide area network router” as a data hub. It not only comes with a standard LAN/WAN Ethernet port, but also offers RS232 and RS485 serial ports, which are extremely common in the industrial field. This design is of vital importance as it means that the I2200 can be directly connected to a vast number of traditional industrial devices, such as PLCS, instruments, and frequency converters, without the need for additional protocol converters. Through these interfaces, the I2200 can efficiently collect serial port data from on-site devices and upload it to the cloud via its powerful 4G wide area network, enabling rapid networking of old equipment and data upload to the cloud. This greatly protects users’ existing investments and is the key for industrial wide area network routers to realize their value in the existing industrial market.

• 5.3 Cornerstone: Unbreakable industrial-grade reliability

• The industrial-grade attribute of the ComFi I2200 is reflected in every detail. It adopts a metal casing design, providing excellent heat dissipation and electromagnetic shielding effects. It supports wide temperature operation (typically from -35℃ to +75℃) and wide voltage input (9-48V DC), and can handle extreme temperature changes and complex power supply environments such as vehicles with ease. This rock-solid hardware quality ensures that the I2200, as an industrial wide area network router, can operate stably for a long time without failure in unattended harsh industrial sites, providing a solid connection guarantee for critical business.

• 5.4 Assurance: Comprehensive security and easy management features

• In terms of security, the ComFi I2200, as a professional industrial wide area network router, has established a three-dimensional protection system. It supports multiple VPN protocols such as IPSec, L2TP, and PPTP, and can establish an encrypted tunnel with the enterprise’s central server to ensure the confidentiality and integrity of data during public network transmission. The built-in firewall and access control functions can effectively resist network attacks from the outside. Meanwhile, it also supports multiple remote management protocols such as SNMP and TR-069. Operation and maintenance personnel can centrally monitor, configure and troubleshoot hundreds or even thousands of i2200s deployed in various locations in the central computer room, which greatly improves operation and maintenance efficiency and reduces management costs.

Reviewing the entire text, we have systematically deconstructed the key device, the “industrial wide area network router”. From the physical and technical roots of its coverage capabilities to its disruptive deployment flexibility, mobility, reliability and security value; From its in-depth empowerment in fields such as energy, transportation, and manufacturing to the ingenious supplementary role of its internal WiFi module, it is clear that industrial wide area network routers have long transcended the scope of traditional routers. They are intelligent edge nodes integrating connection, computing, and security, and are indispensable strategic infrastructure for building modern industrial Internet of Things.

The ComFi I2200, with its outstanding performance and meticulous design, presents to us what an excellent industrial wide area network router should look like. It is not only the crystallization of technology but also a powerful tool to solve the actual pain points in industry.

Looking ahead, with the full popularization of 5G technology, the deep integration of edge computing and the empowerment of AI technology, “industrial wide area network routers” will enjoy an even broader development space. It will not merely be a “pipeline of data”, but also become an intelligent node, conducting data preprocessing, analysis and decision-making on the edge side, achieving lower latency and higher efficiency in industrial control. It will work in synergy with the cloud, edge and terminal to jointly form a more intelligent, efficient and elastic industrial Internet system.

For all industrial enterprises committed to digital transformation, choosing and making good use of industrial wide area network routers is no different from holding the golden key to unlocking a new era of industrial Internet. It will break free from physical constraints, allowing data to flow freely and making intelligence ubiquitous, ultimately driving enterprises towards a more efficient, safer and smarter future.
