Inside Industrial Wide-Temp Tech

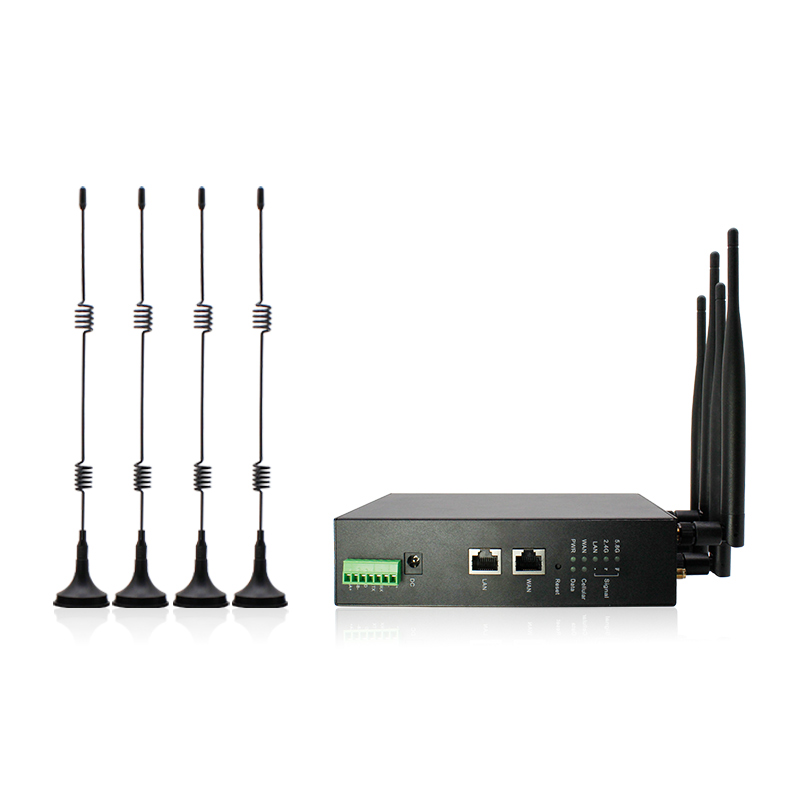

On the map of the Industrial Internet of Things, deployment environments often defy ordinary expectations: a border post in Northeast China at -30℃, an oil field in the Middle East at 55℃, or a solar plant in the Gobi Desert with massive daily temperature swings. In these extreme locations, the stable operation of an industrial router dictates the success or failure of entire monitoring and data acquisition systems. The MovingComm ComIn I5800 dual-band Wi-Fi 6 industrial router is engineered precisely to conquer such harsh environments. Beyond its impressive 3000Mbps wireless performance, it builds a comprehensive "thermal defense system" from the ground up, ensuring always-on connectivity across a wide temperature range from -30℃ to 55℃.

1. Decoding Thermal Adaptability: The "Hot & Cold" Genes of the ComIn I5800

Drawing from professional industrial equipment selection logic, the primary threats from extreme temperatures are electronic component failure, material deformation, and cooling system paralysis. The ComIn I5800 addresses these challenges from the outset with a four-tiered defense:

• Wide-Temperature Industrial Components (The Foundation):

  • Core Processor: Utilizes the Qualcomm IPQ5018 industrial-grade solution with 512MB DDR3L memory, ensuring stable operation from -30℃ to +55℃ at the chip level, preventing cold-weather shutdowns or heat-induced throttling.

  • Storage & Passive Parts: Employs industrial-grade NAND Flash and capacitors rated for wide-temperature operation, fundamentally eliminating risks like低温 capacitance loss or高温 resistance drift.

• Fanless, Efficient Heat Dissipation (The Core):

  • Passive Cooling via All-Metal Chassis: The rugged industrial metal housing acts as a massive heatsink. Thermal interface materials connect major heat sources (CPU, 5G module) directly to the casing, creating an efficient, fanless passive cooling path.

  • Eliminating Mechanical Failure: The fanless design not only prevents startup failure due to frozen lubricant in cold but also eliminates common failures like dust clogging, seizing, or bearing wear in hot, dusty environments, significantly enhancing long-term reliability.

• Industrial-Grade Materials & Craftsmanship (The Assurance):

  • Impact-Resistant Enclosure: The metal housing and structural design, compliant with vibration and shock standards, withstands expansion/contraction stresses from large temperature swings, preventing loose connectors or cracked enclosures.

  • High-Standard Interface Protection: Built-in 1.5KV magnetic isolation for Ethernet ports and 15KV ESD protection for the SIM card slot, both passing GB/T17626.5-2008 Level 4 tests. This ensures interface stability during静电-prone periods caused by temperature changes or thunderstorms.

• Software & Circuit Protection (The Intelligence):

  • Dual Watchdog Design: Hardware and software watchdog timers ensure automatic system reboot and fault self-recovery if the device freezes due to extreme temperatures or other anomalies, enabling unattended operation.

  • Comprehensive Power Protection: Supports wide 12-18V DC input with built-in reverse polarity and overvoltage protection, adapting to unstable power supplies common in industrial settings.

2. Decoding Key Specs: Matching the Router to Harsh Environments

• Temperature Range: -30℃~+55℃ (Operating) / -40℃~+85℃ (Storage)
  The I5800 clearly distinguishes between operating and storage temperatures. Its -30℃ operating low point covers outdoor winter needs in most of northern China and beyond. The 55℃ operating high handles summer conditions in many industrial workshops and outdoor enclosures. Always use the "Operating Temperature" as the key selection criterion.

• Cooling Method: Fanless Design
  For outdoor base stations, dusty workshops, and cold chain transport, fanless is the preferred choice for reliability. This gives the I5800 an inherent advantage in such scenarios, requiring no periodic cleaning or fan replacement.

• EMC & Protection: Industrial Level 4 Standard
  Beyond temperature, electromagnetic interference is a major environmental hazard. The I5800's EMC design meets GB/T17626.5-2008 Level 4. Combined with high-spec interface protection, it maintains signal integrity and error-free data transmission even amidst motors and VFDs.

3. Field Scenarios: The ComIn I5800 in Action

• Scenario 1: Winter Outdoor Surveillance (Extreme Cold)
  Challenge: A forestry bureau needed reliable video surveillance and sensor data transmission at -25℃ during winter.
  Solution: Deployed ComIn I5800 in an outdoor enclosure. Industrial components ensured stable cold starts; the fanless design eliminated freezing risks. The device operated faultlessly all winter, streaming HD video back to a command center.

• Scenario 2: High-Temp Factory Floor (Extreme Heat)
  Challenge: A foundry workshop, with ambient temperatures often exceeding 50℃ and heavy dust, caused frequent overheating failures in standard routers.
  Solution: The ComIn I5800's all-metal passive cooling and IP-rated enclosure handled the heat and dust effectively. Its stable Wi-Fi 6 network supported AGV dispatching and real-time PLC data collection, drastically reducing downtime.

• Scenario 3: Mobile Vehicle巡检 (Thermal Shock & Vibration)
  Challenge: Unmanned port trucks required 24/7 connectivity, facing internal vehicle temperatures from -20℃ to 50℃ and constant vibration.
  Solution: Integrated into the vehicle's communication terminal, the I5800's wide-temperature tolerance and anti-vibration design proved reliable. Its dual watchdog ensured no system freezes under harsh conditions, providing a robust data link for remote driving and telemetry.

From extreme cold to heat, and from static to vibrating environments, the MovingComm ComIn I5800, with its solid industrial design and卓越 Wi-Fi 6 performance, proves itself not just as a provider of high-speed connectivity, but as a reliable guardian of the communication "lifeline" in the most demanding conditions.
