In smart manufacturing, logistics, and energy management, the Industrial Human-Machine Interface (HMI) has become the core terminal for equipment monitoring, data collection, and human interaction. Facing three mainstream mounting methods—embedded, wall-mounted, and mobile cart—businesses often struggle to choose: Is embedded suitable for high-temperature, humid environments? Can wall-mounted support multi-screen setups? Is a mobile cart stable enough for moving applications? This article analyzes these options from four key dimensions: environmental adaptability, installation cost, maintenance efficiency, and scalability. We'll also explore how MovingComm industrial routers provide the reliable network backbone for each scenario.
I. Embedded Mounting: The "Invisible Guardian" with High Protection
1. Core Advantages: Shock Resistance, Dust/Water Proofing, Space Optimization
Embedded mounting integrates the HMI flush into a machine panel, control cabinet, or wall. Its key values are:
Shock Resistance: In high-vibration environments like mining or metalworking, an embedded structure minimizes physical impact on the screen. For example, a steel plant using embedded HMIs on rolling mills saw equipment failure rates drop by 38%.
Protection Rating: Some industrial HMIs offer IP67 protection, resisting dust and temporary water immersion. In dusty environments like cement plants, the Mean Time Between Failures (MTBF) for embedded HMIs can be 2.5 times longer than wall-mounted ones.
Space Saving: Embedded mounting uses no extra space, ideal for crowded control cabinets. An automotive plant saved 35% of panel space by embedding a 12.1-inch HMI, also eliminating collision risks from protruding screens.
2. Typical Scenarios & Potential Risks
Typical Scenarios: Industrial automation (e.g., PLC panels), outdoor smart terminals (e.g., EV charger screens), medical devices.
Potential Risks:
Installation Complexity: Requires precise pre-cut openings; retrofitting needs new cuts. One wind farm faced $2,500 in extra costs for not reserving spare openings.
Heat Dissipation: In high-heat areas like boiler rooms, embedded screens may overheat. Using heat sinks or thermal paste can extend lifespan by 40%.
Fixed Angle: The screen angle is fixed, which may hinder viewing in some applications, like AGV dispatch centers. This can require a tilting bracket, adding ~15% to cost.

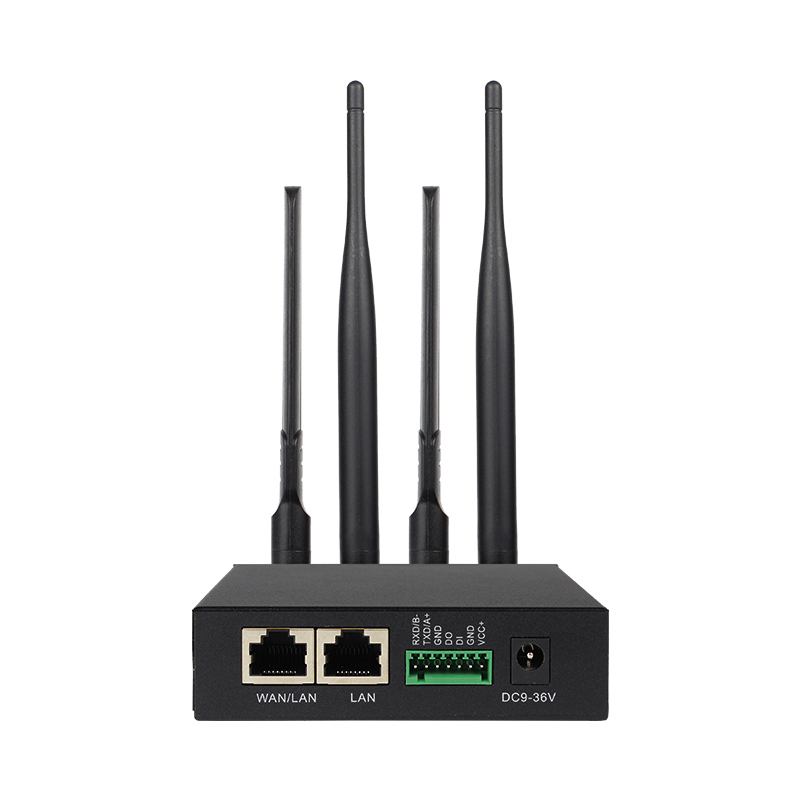

MovingComm's Solution: For embedded setups, a MovingComm industrial router (e.g., ComIn I2105) can be placed inside the cabinet. Its 9-36VDC wide voltage input adapts to various power supplies, and -35°C to 75°C wide temperature rating ensures stable operation in extreme heat or cold. Features like dual watchdog timers and link detection guarantee uninterrupted data flow between the HMI and control center. Its metal housing and EMC protection effectively resist electromagnetic interference from other devices inside the cabinet, ensuring signal purity.
II. Wall-Mounted Mounting: The "Golden Balance" of Flexibility and Cost
1. Core Advantages: Fast Deployment, Easy Maintenance, Supports Video Walls
Wall-mounted HMIs are fixed to walls or pillars using brackets. Their strengths are:
Installation Speed: Single-unit deployment takes ~20 minutes, 70% faster than embedded. A logistics warehouse installed 50 units for sorting displays in 3 hours, saving 12 man-hours.
Maintenance Ease: Screens can be quickly detached for repair or upgrade. A chemical company cut annual maintenance costs by 62% by switching to wall-mounted units, simplifying screen replacement.
Video Wall Expansion: Adjustable arms allow for front-serviceable video walls. A command center using 6 screens with adjustable arms made individual maintenance 80% faster than a traditional embedded video wall.
2. Typical Scenarios & Key Considerations
Typical Scenarios: Factory control rooms, warehouse displays, outdoor digital signage, retail store screens.
Key Considerations:
Load Bearing: For screens over 25kg, ensure the wall is solid. A store using a drywall partition for a heavy screen led to an $11,000 accident. Use expansion bolts and extra bracing.
Vibration: Near heavy machinery, vibrations can loosen mounts. Anti-vibration mounts can cut failure rates by 65%.
Viewing Angle: Position screen center 1.5-1.8 meters high for optimal viewing. One hospital improved operator comfort scores by 70% by adjusting heights.

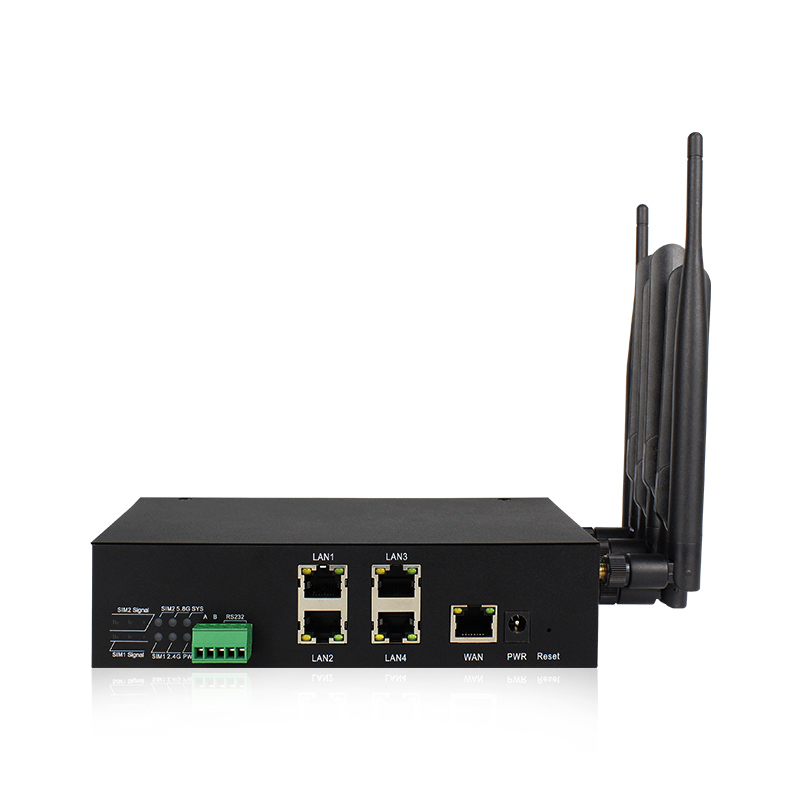

MovingComm's Solution: In multi-screen setups, a high-performance router like the MovingComm ComIn I5100 excels. Its 5G/Wi-Fi 6 provides massive bandwidth, and its 3Gbps total rate and 160MHz channel ensure smooth, synchronized video across all screens. A cloud management platform allows remote monitoring and batch configuration of routers across multiple locations, slashing maintenance overhead. IPSec/OpenVPN encryption secures command center data, preventing leaks.
III. Mobile Cart Mounting: The "Ultimate Solution" for Mobility and Expansion
1. Core Advantages: Free Movement, Adjustable Height, Multi-Device Integration
Mobile carts or stands provide the ultimate flexibility:
Mobility: A cart allows screens to be repositioned for temporary needs or inspections. A power inspection team using a mobile cart increased daily efficiency by 50%.
Height & Angle Adjustment: Carts with lifts allow multi-dimensional adjustments, accommodating different users. A hospital saw operator comfort scores jump 68% with adjustable stands.
Multi-Device Integration: Carts can hold screens, keyboards, scanners, etc., creating an all-in-one station. A retailer using a cart for POS and inventory management shrank checkout space by 45% and boosted efficiency by 30%.
2. Typical Scenarios & Cost Analysis
Typical Scenarios: Mobile inspection terminals, temporary command posts, interactive workstations, lab data collection.
Cost Analysis:
Cart Cost: Stationary stands range from $110 to $350; mobile carts with batteries and motors cost 40-60% more.
Space Footprint: Carts need floor space. A semiconductor fab had to re-plan a cramped control room, adding $4,200 in costs after choosing carts.
Stability: On slopes or vibrating floors, choose carts with locking casters. A mine using anti-tip stands reduced screen failures by 80% on 5° slopes.

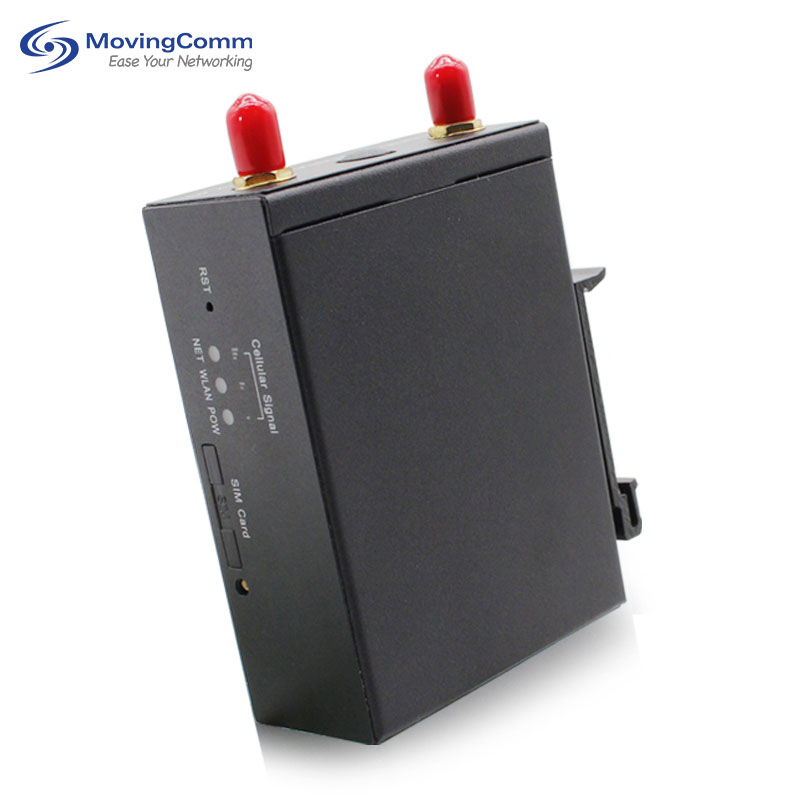

MovingComm's Solution: For mobile applications, the compact size of a router like the MovingComm ComIn I210 (100x63mm) and its DIN-rail mount make it easy to install on a cart. Dual SIM card slots with intelligent switching ensure seamless connectivity as the cart moves, avoiding signal drops. Its 9-36VDC wide voltage input works with various battery types, and its low power consumption (170mA@12V) helps extend operational time. Cloud remote management allows operators to track the cart's location and network status in real-time, enabling quick setup for temporary command centers.
IV. Decision Model: A 4-Step Guide to the Best Choice
1. Step 1: Assess Environmental Stability
High Vibration/Shock (Mines, Foundries): Prioritize Embedded (with anti-vibration mounts).
Low Vibration (Warehouses, Labs): Wall-Mounted or Mobile are both viable; decide based on space and maintenance needs.
2. Step 2: Determine Maintenance Frequency
High Frequency (Regular updates/repairs): Wall-Mounted offers the lowest maintenance cost.
Low Frequency (Long-term stable operation): Embedded can lower long-term failure rates, but plan for heat dissipation.
3. Step 3: Calculate Space Costs
Space-Constrained (Control cabinets, small panels): Embedded saves space but requires precise planning.
Space-Abundant (Large workshops, outdoors): Wall-Mounted or Mobile are more flexible, but check load-bearing capacity.
4. Step 4: Verify Expansion Needs
Multi-Screen Video Walls: Wall-Mounted with adjustable arms allows front servicing. Embedded video walls require complete disassembly.
Peripheral Integration (Keyboards, scanners): Mobile Carts support this naturally. Embedded/Wall-mounted may need extra docks.
V. MovingComm Industrial Routers: The Reliable Network Foundation for HMIs
Regardless of the mounting method, a stable network is crucial for any connected HMI. MovingComm industrial routers are designed for harsh environments and complement any mounting choice perfectly:
Wide Temperature Operation: Models operate from -35°C to 75°C, ideal for hot control cabinets (embedded) or outdoor winter/summer conditions (wall-mounted).
Industrial-Grade Protection: With EMC Level 4 certification and metal housings, they resist electromagnetic interference from heavy machinery, ensuring signal stability for mobile or wall-mounted units near motors.
Flexible Networking: Support for 5G/4G, WAN, and Wi-Fi with dual-link failover ensures high availability and data aggregation from all HMI types (embedded, wall-mounted, mobile). Failover is typically sub-second.
Simplified Management: A unified cloud platform allows remote monitoring, configuration, and diagnostics of routers across an entire facility, drastically reducing maintenance effort for distributed HMIs.
Choosing the right mounting method for your industrial HMI requires balancing environmental factors, cost, maintenance, and expansion plans. Regardless of your choice—be it the robust integration of embedded, the flexible efficiency of wall-mounted, or the ultimate mobility of a mobile cart—MovingComm industrial routers provide the essential, reliable, and secure network infrastructure. They act as the "information artery," ensuring your critical HMI data flows seamlessly, anywhere in your facility.
