The cornerstone of building the online world

In today's digital age, routers, as the core devices for network interconnection, play a crucial role. Whether it is a 4G router all-network device in the industrial field, a wireless industrial-grade 4G router, or an industrial-grade 4G/3G router, they all have three basic functions: route selection, data packet forwarding, and network connection and management.


Routing selection

Routing selection is one of the core functions of a router. Just as in a complex urban traffic network, navigation systems help us find the best route from the starting point to the destination, routers, through their routing function, search for an optimal transmission path for data packets based on the network topology and the conditions of the communication channel.

This function is particularly important for industrial-grade routers such as industrial 4G routers and all-network routers. In industrial environments, communication between devices requires a high degree of stability and efficiency. For instance, on an automated production line, real-time data transmission is required among various sensors, controllers and actuators. Industrial routers need to accurately select routes based on the IP addresses and network conditions of different devices to ensure that data can reach the destination quickly and accurately, thereby guaranteeing the smooth progress of the production process.

Routers mainly rely on routing protocols and routing tables to implement the routing selection function. Routing protocols such as OSPF and BGP are used to exchange network topology information and routing information between routers. Through these protocols, routers can understand the structure and status of the entire network. Then, based on this information, a routing table is generated, which contains the best path information to reach each target network. When a router receives a data packet, it checks the destination IP address in the packet and looks up the corresponding route entry in the routing table to determine from which interface the data packet should be forwarded, in order to achieve the optimal path selection.

Data packet forwarding

Packet forwarding is the process by which routers forward the received data packets from one network interface to another, in order to achieve the function of data transmission between different networks.

Take 4G routers as an example of wireless industrial-grade devices. In the industrial Internet of Things scenario, a large amount of data needs to be transmitted between on-site devices and remote monitoring centers. Wireless industrial-grade routers receive data packets sent from field devices via 4G networks, and then forward them to the network interface connected to the monitoring center based on the destination address of the data packets, and vice versa.

When a router forwards data packets, it needs to perform a series of processing on the data packets. First of all, the router will check the integrity and correctness of the data packet to ensure that no errors occur during data transmission. Then, based on the information in the routing table, determine the next-hop address and output interface of the data packet. Next, the router will add some necessary information to the header of the data packet, such as the source MAC address and destination MAC address, to facilitate transmission at the data link layer. Finally, the processed data packets are sent out from the corresponding output interface so that they can reach the destination along the correct path.

Network connection and management

The third fundamental function of a router is network connection and management. It is responsible for establishing and maintaining network connections and managing devices and resources within the network.

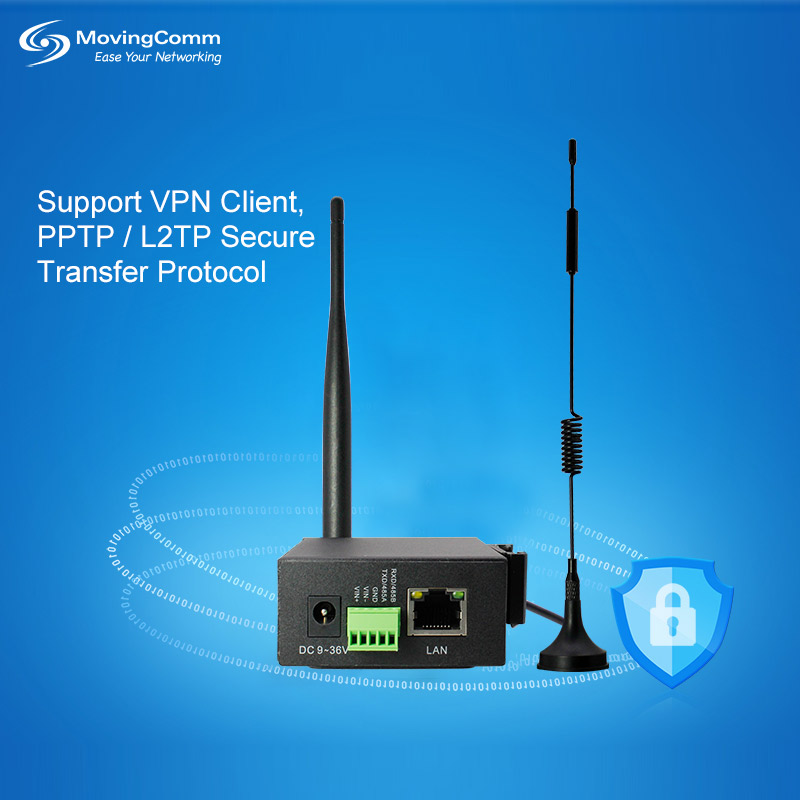

Industrial-grade 4G/3G routers have rich functions in this regard. In terms of network connection, they support multiple network standards, such as 4G and 3G, and can establish stable connections with the networks of operators, providing wireless communication services for industrial equipment. At the same time, it can also be connected to other wired devices through Ethernet interfaces, etc., to achieve the integration of wired and wireless networks.

In terms of network management, industrial routers can manage and control devices connected to the network. For instance, by setting up access control lists (ACLs), the access of certain devices to specific network resources can be restricted, thereby enhancing the security of the network. Bandwidth management can also be carried out. According to the requirements of different devices or applications, network bandwidth can be reasonably allocated to ensure the smooth operation of critical business. In addition, industrial routers usually support remote management functions. Administrators can log in to the router remotely via the network to configure, monitor and maintain it, which greatly improves management efficiency and reduces maintenance costs.

In conclusion, routing selection, data packet forwarding, and network connection and management are the three fundamental functions of a router. For industrial-grade routers such as full-network industrial 4G routers, wireless industrial-grade 4G routers, and industrial-grade 4G/3G routers, the stable and efficient operation of these functions is the key to ensuring smooth industrial network communication and achieving industrial automation and intelligence. With the continuous development of technology, the functions of routers are constantly being enriched and improved, which will provide more powerful support for the digital transformation of the industrial sector and other industries.
