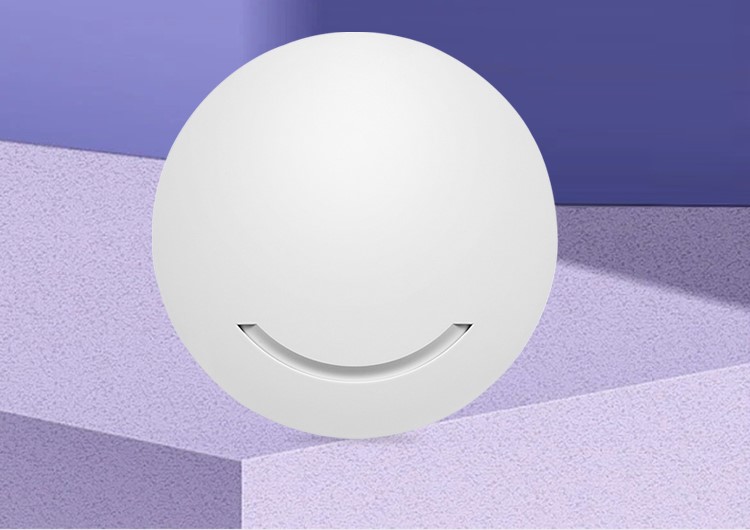

ComFi BL24 Dual Band Indoor AP

ComFi BL24 is an Indoor Dual Band Wi-Fi5 802.11AC Wireless Access Point which suitable for indoor environment use that require high speed performance wireless coverage such as commercial office building, school, hospital, hotel, etc. ComFi BL24 supports 2×2 802.11ac Wave2 MIMO, and the maximum concurrent connection rate (Dual band) can reach up to 1200Mbps Dual Band Indoor Wireless AP, which can build a stable and high speed wireless network for users.

six characteristics

1. 1200Mbps WiFi Speed: An ultra-fast dual-band concurrent experience
As a top-of-the-line Dual Band Indoor Wireless AP, the core advantage of ComFi BL24 lies in its wireless rate of up to 1200Mbps. This speed is not the limit of a single channel, but ingeniously utilizes the dual-band concurrent technology of the Dual Band Indoor Wireless AP. It operates simultaneously on both the 2.4GHz and 5GHz frequency bands. The 2.4GHz band offers excellent wall-penetrating capability and wide coverage, ensuring no signal dead zones. The 5GHz frequency band offers a purer channel and higher bandwidth, effectively avoiding the congestion problem of the traditional 2.4GHz frequency band. The classic design of this Dual Band Indoor Wireless AP enables users to automatically or manually connect to the optimal frequency band according to the device type and application requirements. Whether it’s high-definition video conferencing, large file transfer, or online collaboration and cloud applications, this Dual Band Indoor Wireless AP can provide a smooth experience with low latency and high throughput, completely saying goodbye to lag and waiting. It is an ideal Dual Band Indoor Wireless AP for building a high-speed wireless environment.
Two Ethernet Port: Beyond Traditional Flexible Networking
Unlike many Dual Band Indoor Wireless aps on the market that are equipped with only a single network port, ComFi BL24 innovatively provides two Ethernet ports. This design greatly enhances the deployment flexibility and functional scalability of this Dual Band Indoor Wireless AP. The first port serves as the standard WAN/LAN uplink port, which is used to connect switches or routers and provide network access and data backhaul for the Dual Band Indoor Wireless AP. This dual-in-one function of “AP+ switch” enables a single Dual Band Indoor Wireless AP to simultaneously meet the requirements of wireless coverage and wired access without the need for additional deployment of cabling and switches, significantly reducing deployment costs and complexity. For scenarios that require network expansion or hybrid connections, ComFi BL24, this dual-port Dual Band Indoor Wireless AP, undoubtedly provides a better solution.
Iii. FIT and FAT AP Mode: Flexible and Adaptable Management Architecture
As an intelligent Dual Band Indoor Wireless AP, ComFi BL24 has a powerful ability to switch between FIT (thin) and FAT (fat) modes, enabling it to flexibly adapt to various network scales ranging from small offices to large enterprise parks. In FAT mode, this Dual Band Indoor Wireless AP can work independently without the need for additional controllers. Users can complete all configurations through the Web interface, making it highly suitable for rapid deployment in small networks or branch offices. When the network scale expands and centralized management is required, ComFi BL24 can easily switch to FIT mode and serve as a controlled Dual Band Indoor Wireless AP, with unified configuration distribution, firmware upgrade, status monitoring and radio frequency optimization by the wireless controller (AC). This FIT/FAT Dual mode endows this Dual Band Indoor Wireless AP with extremely strong vitality and adaptability. Users can freely choose the most suitable management method according to their own development stage and budget, protecting investment and simplifying operation and maintenance. It is a truly future-oriented Dual Band Indoor Wireless AP.
4. Wi-Fi Roaming: seamless mobility experience
For users who need to move around for work or use wireless devices over a large area, the Wi-Fi roaming experience is of vital importance. ComFi BL24, as a professional Dual Band Indoor Wireless AP, achieves intelligent and seamless Wi-Fi roaming by supporting the 802.11k/v/r protocol (commonly known as the KVR protocol stack). When the user moves the device in multiple Dual Band Indoor Wireless AP networks composed of ComFi BL24, the system will intelligently determine the signal strength and actively guide the device to connect to the Dual Band Indoor Wireless AP with the best signal. The entire process is completed rapidly in the background, and users hardly feel any interruption or delay, achieving a “zero-perception” switch. This function is particularly crucial for scenarios such as large offices, hotels, and hospitals where multiple Dual Band Indoor Wireless aps need to be deployed. It ensures the continuity of real-time applications such as voice calls and video conferences, providing users with a truly mobile and free wireless network experience. It highlights the professionalism of this Dual Band Indoor Wireless AP.
V. PoE Power Supply: A power supply solution for Simplified deployment
To simplify installation and enhance aesthetics, the ComFi BL24 Dual Band Indoor Wireless AP fully supports PoE (Power over Ethernet) technology. This means that when deploying this Dual Band Indoor Wireless AP, there is no need to look for power sockets near the device or lay additional power cords. A standard network cable can simultaneously transmit data and power for the Dual Band Indoor Wireless AP. PoE power supply not only greatly simplifies the installation process, reduces the construction difficulty and cost, but also makes the deployment location of the Dual Band Indoor Wireless AP more flexible. It can be perfectly integrated into any corner that needs to be covered, such as the ceiling and walls, without being limited by the power supply location. In addition, centralized power supply by a POE-supported switch also facilitates unified power management and fault detection, enhancing the reliability and maintainability of the entire Dual Band Indoor Wireless AP network.
Six. Support 60 Users: Handle high-density access with ease
In crowded places such as meeting rooms, training rooms, libraries and shopping malls, the concurrent user processing capability of the Dual Band Indoor Wireless AP is a huge test. With its powerful hardware performance and optimized software scheduling algorithm, ComFi BL24 Dual Band Indoor Wireless AP can stably support up to 60 users online simultaneously. This Dual Band Indoor Wireless AP ensures that each connected device can obtain fair and stable network resources even under high load conditions through an efficient medium access control mechanism and intelligent bandwidth allocation strategy, effectively avoiding network congestion and disconnection problems caused by too many users. This powerful high-density access capability makes ComFi BL24 an ideal Dual Band Indoor Wireless AP choice in densely populated areas. It can handle various network challenges during peak hours with ease and ensure the continuity of services and user satisfaction.

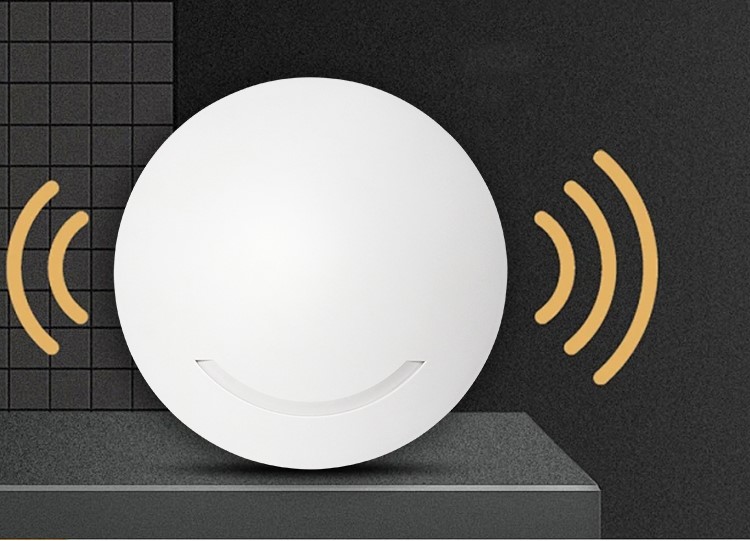

Large area network coverage

ComFi BL24 Dual Band Indoor Wireless AP adopts a 2×2 MIMO architecture, meaning that two antennas are equipped on both the AP end and the client end for data transmission and reception. MIMO technology, through spatial diversity and spatial multiplexing, not only enhances the data transmission rate but also significantly improves the stability and anti-interference ability of the signal. Even if the signal of one of the paths fades due to the multipath effect (the signal reaches the receiving end after multiple reflections and refractions in the room), the signal of the other path may still remain in good condition, thus ensuring the reliability of communication.

To maximize the performance of 2×2 MIMO, ComFi BL24 Dual Band Indoor Wireless AP is equipped with a precisely designed and optimized high-gain antenna. This antenna system is the physical basis for this Indoor Wireless AP to achieve “wide network coverage”. Compared with external antennas, built-in antennas are more aesthetically pleasing, easier to install, and can better match the impedance of the internal circuit of the device, reducing signal loss. Its radiation pattern has been meticulously tuned to provide uniform and seamless signal coverage for indoor environments such as offices, hotel rooms, and hospital wards. It not only effectively enhances the breadth of signal coverage, but also meets the demand for high-density access, ensuring that each device can obtain stable and sufficient signal strength when numerous devices are connected simultaneously, thus guaranteeing the stable operation of the network.

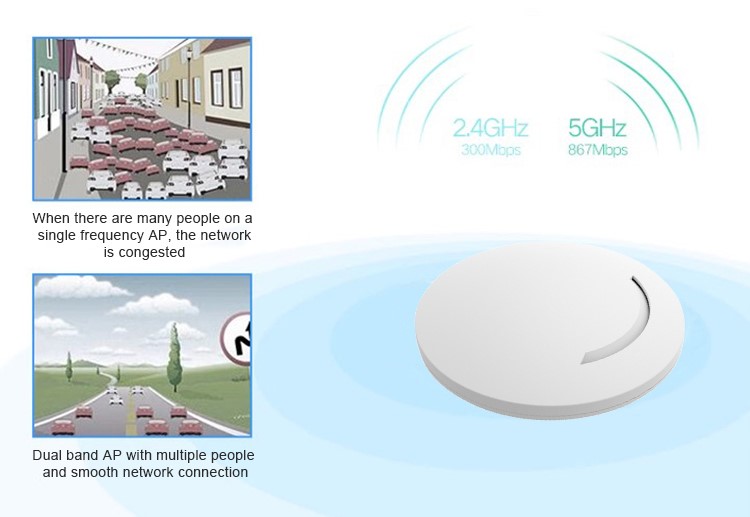

Dual band network is faster

“Dual Band” is the signature feature of ComFi BL24 Dual Band Indoor Wireless AP as a high-performance Indoor Wireless AP. It operates simultaneously on both 2.4GHz and 5GHz frequency bands and can achieve dual-band concurrent operation, providing users with a total wireless connection rate of up to 1200Mbps. This design is not merely a simple accumulation of technologies, but rather a profound insight and ingenious response to the complex wireless environment.
2.4GHz frequency band: The cornerstone of coverage and penetration
The 2.4GHz frequency band is a “veteran” in wireless networks. Its greatest advantage lies in its longer wavelength and slower signal attenuation, thus offering better wall-penetrating capability and a wider coverage area. For devices that are far from the AP or are separated from it by obstacles such as walls or floor slabs, the 2.4GHz frequency band is the key to ensuring the “presence” and “stability” of the network. However, its drawbacks are equally obvious: the frequency band resources are extremely crowded, and there are only three completely non-overlapping channels. Bluetooth devices, microwave ovens, wireless mice and keyboards, and the Wi-Fi of neighbors all operate in this frequency band, resulting in severe channel interference and making the network speed and stability vulnerable to being affected. The 2.4GHz frequency band of ComFi BL24 Dual Band Indoor Wireless AP offers a maximum rate of 300Mbps, which is sufficient to meet the demands of daily applications such as web browsing, instant messaging, and online video (standard definition), ensuring extensive coverage of basic connections.
5GHz band: An oasis of speed and purity
The 5GHz frequency band is a relatively “pure” world. It has more channel resources (13 non-overlapping channels can be provided in China), and is much less affected by co-frequency interference than 2.4GHz. This means that on this frequency band, data transmission can have a “wider” channel, thereby achieving higher speeds. The 5GHz band of ComFi BL24 Dual Band Indoor Wireless AP benefits from 802.11ac technology and can provide a connection rate of up to 867Mbps. This is crucial for applications that require high bandwidth and low latency, such as 4K ultra-high-definition video streaming, online cloud gaming, large file transfer, video conferencing, etc. By intelligently guiding applications with high bandwidth requirements to the 5GHz frequency Band, the ComFi BL24 Dual Band Indoor Wireless AP achieves intelligent load diversion of the network, ensuring the smooth operation of critical services.
Dual-frequency intelligent collaboration: The wisdom of seamless switching
The true charm of ComFi BL24 Dual Band Indoor Wireless AP lies in its intelligent management of dual frequencies. It does not allow users to manually select which frequency band to connect to. Instead, through advanced algorithms, it can automatically identify the type, location, signal strength and current application requirements of the terminal device, guiding it to connect to the optimal frequency band. For instance, when you are holding a dual-band phone near the AP, it will prioritize connecting you to the faster 5GHz. When you reach a corner with a weaker signal, the AP can ensure that you smoothly switch to the better 2.4GHz coverage, and the entire process is imperceptible to the user. This intelligent frequency Band guidance and load balancing is an essential skill for top-tier Dual Band Indoor Wireless aps. It perfectly combines “fast” and “wide”, providing users with a consistently high-quality network experience.

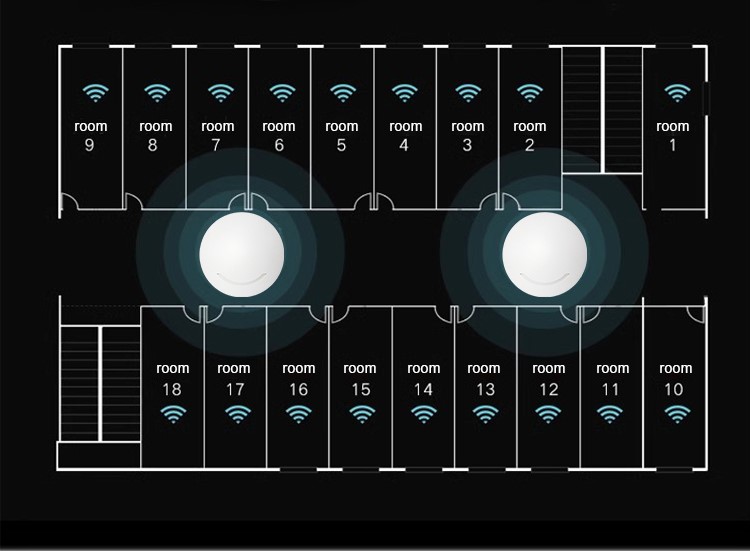

Seamless Roaming

In large Indoor Spaces such as office buildings, schools, hotels or hospitals, the coverage of a single Indoor Wireless AP is limited. Multiple aps must be deployed to achieve full coverage. In traditional networks, when A user moves from the coverage area of AP A to that of AP B, the terminal device needs to disconnect from A, re-search and reconnect to B. This process can cause network interruption, resulting in problems such as video lag, game disconnection, and voice call interruption, providing an extremely poor experience.

ComFi BL24 Dual Band Indoor Wireless AP solves this problem with its advanced “Seamless Roaming” technology. Its working principle is ingenious and efficient: When the Dual Band Indoor Wireless AP network system deployed with multiple ComFi BL24 units is running, each AP will collaborate through a proprietary protocol. When an AP (for example, AP A) detects that the signal strength of a certain terminal device (such as your mobile phone) is continuously decreasing and falling below the preset roaming threshold, it will immediately make a judgment: the device is leaving its coverage area. At this point, AP A will not simply wait for the signal to completely disappear, but will proactively “notify” the surrounding neighbor aps (such as AP B) and “hand over” the information of this device. After receiving the information, AP B will be ready to accept the device. When the terminal device scans a stronger signal from AP B, it can complete the authentication and connection switching in an extremely short time (usually at the millisecond level).

For users, this process is completely “zero perception”. You can hold video conferences while walking around the office, from the first floor to the fifth floor, or shuttle between the hotel lobby and guest rooms. Your network connection will always remain online and your business will not be interrupted. This seamless roaming capability is the core criterion for measuring whether an Indoor Wireless AP solution is mature and suitable for mobile scenarios. Especially for applications that require continuous network connection, such as mobile office work, voice calls (VoWiFi), and mobile healthcare, its importance is self-evident.

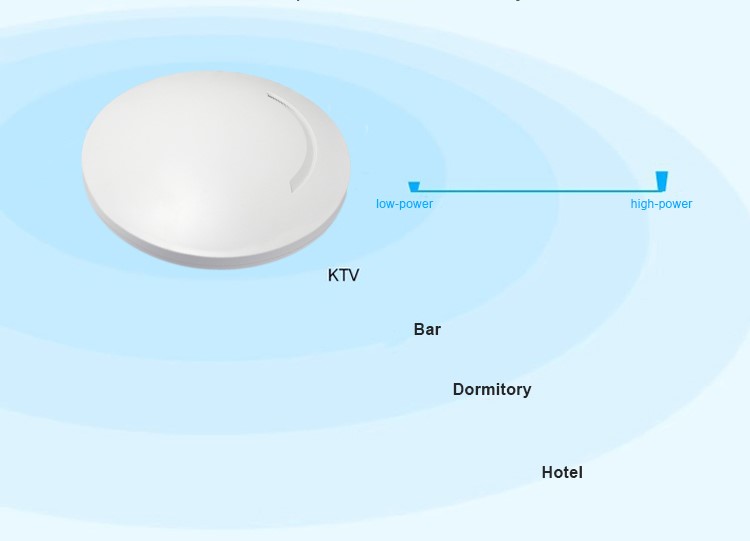

Power linearly adjustable

When deploying multiple Indoor Wireless aps to meet the demand for large-scale coverage, a common challenge is the co-frequency interference among the aps. If all aps transmit at maximum power, their signals will overlap excessively, especially in the 2.4GHz frequency band where channel resources are tight, which will cause severe channel conflicts and instead lead to a decline in the overall network performance and a deterioration in user experience.

The “linearly adjustable transmission power” function provided by ComFi BL24 Dual Band Indoor Wireless AP offers network planners a powerful fine-tuning control tool. Administrators can precisely adjust the transmission power of each ComFi BL24 Dual Band Indoor Wireless AP based on the actual environment, such as the deployment density of aps, building structure, wall material and other factors. For instance, in areas where aps are densely deployed, the power of each AP can be appropriately reduced to ensure that its coverage just meets the requirements. This not only avoids signal blind spots but also minimizes mutual interference among aps to the greatest extent. This “just-right” coverage design is like a meticulously arranged symphony, with each instrument (AP) playing within its own volume range, jointly composing a harmonious and efficient network symphony. By reducing interference, the stability and throughput of the entire wireless network have been significantly enhanced, providing users with a cleaner and more efficient wireless environment.

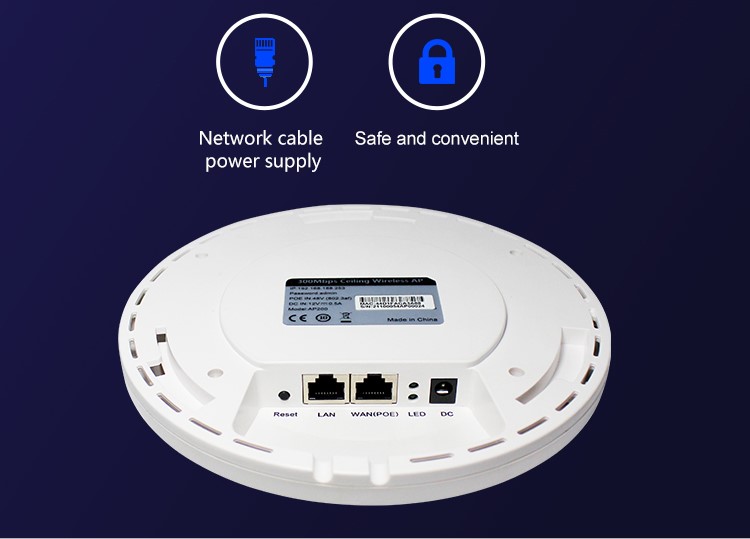

PoE/Dc power supply

As an Indoor Wireless AP, the installation location of ComFi BL24 Dual Band Indoor Wireless AP is often flexible. It may be placed inside the ceiling, high on the wall or on the desktop, where it is not convenient to be close to the power socket. To solve this difficult problem, ComFi BL24 provides two flexible Power supply solutions: PoE (Power over Ethernet) and DC (Direct Current Power Supply).

PoE power supply: The preferred choice for professional deployment
The LAN2/PoE interface of ComFi BL24 Dual Band Indoor Wireless AP supports the standard 802.3af/at PoE protocol. This means that it can receive both data signals and 48V DC power from a PoE switch or PoE injector through a standard network cable. This “one-line pass” design has brought great convenience:
Flexible deployment: aps can be installed at any location covered by network cables, eliminating the need to separately lay power lines for each AP, which greatly reduces wiring costs and construction difficulty.
Centralized management: Through PoE switches, administrators can remotely monitor and control the power supply status of each AP, achieving unified management. They can even remotely restart faulty aps, which improves operation and maintenance efficiency.
Safety and aesthetics: It avoids installing multiple power sockets on the walls or ceilings, reducing safety hazards caused by power issues (such as short circuits and electric shocks), and at the same time makes the installation environment cleaner and more aesthetically pleasing.
DC power supply: An economical and convenient supplement
For small-scale deployments or temporary application scenarios, ComFi BL24 also provides a traditional 12V DC power interface. Users can directly power it using the included power adapter. Although this approach is not as flexible as PoE, it offers a simple and economical alternative in cost-sensitive or non-poe switch environments.

Applicable scenarios

With its comprehensive and powerful functional features, ComFi BL24 has become a highly versatile Dual Band Indoor Wireless AP, which can perfectly adapt to various indoor scenarios with strict requirements for wireless networks and help all industries achieve digital and intelligent upgrades.

3.1 Commercial Office Buildings: The Smart Engine That Inspires Productivity
The modern commercial office environment is one of the scenarios where Indoor Wireless AP is most widely applied and has the highest requirements. Different areas such as open-plan office Spaces, independent offices, meeting rooms, and rest areas have varying demands for the network. ComFi BL24 can easily handle these challenges:
High-density access: In an open office area, dozens of employees can collaborate online, access cloud storage, and hold high-definition video conferences simultaneously. The MU-MIMO and dual-band technology of ComFi BL24 ensure that each employee’s device can obtain high-speed and stable connections, without lag due to an increase in the number of people.
Seamless collaboration: Employees move between meeting rooms, workstations, and tea rooms with their laptops. The seamless roaming function of ComFi BL24 ensures the continuity of real-time applications such as VoIP calls and video conferences, allowing collaboration to be unrestricted by space.
Security and Isolation: It is easy to set different SSIDs (Wireless Network Names) and vlans (Virtual Local Area Networks) for employees and visitors, achieving network isolation, ensuring the security of internal company data, and providing convenient Internet access services for visitors at the same time.
3.2 Schools and Educational Institutions: Building the Digital Foundation for Interactive Teaching
The construction of a smart campus cannot do without a high-quality wireless network that is ubiquitous. From multimedia classrooms, electronic libraries to student dormitories and large lecture halls, ComFi BL24 can provide reliable network support:
Interactive Classroom: In the multimedia classroom, teachers and students conduct interactive teaching, answer questions online and share resources in real time through tablets and laptops. The low latency and high bandwidth of ComFi BL24 ensure the smoothness of the teaching process.
Digital Library: Students can access a vast number of digital books and academic databases anytime and anywhere through electronic devices for online learning and research. The high-speed connection in the 5GHz frequency band makes it possible to download large files and watch high-definition videos on demand.
High-density scenarios: In large lecture halls or lecture halls, hundreds of students are connected to the network simultaneously. The high-density access capability and intelligent load balancing of ComFi BL24 can effectively deal with network congestion and ensure the smooth progress of teaching activities.
3.3 Hospitals and Medical Institutions: A critical network for safeguarding lifelines
The hospital environment has extremely high requirements for the stability, security and real-time performance of wireless networks. The industrial-grade design and high reliability of ComFi BL24 make it an ideal choice in the medical field:
Mobile medical care: Doctors and nurses use mobile trolleys, tablet computers or PDAs to move around between wards, consultation rooms and nurse stations, accessing patients’ medical records in real time, entering medical orders and checking vital sign data. The seamless roaming of ComFi BL24 ensures the “always-on” status of these critical medical applications, winning precious time for saving lives.
Medical Internet of Things: Supports the access of a large number of medical IoT devices, such as wireless infusion pumps, smart mattresses, patient positioning wristbands, and medical equipment status monitoring sensors, etc. These devices do not have high requirements for network bandwidth, but they have special requirements for connection stability and low power consumption. The stable coverage and refined management capabilities of ComFi BL24 can well meet these demands.
Data security: Hospital data involves patient privacy and is of vital importance. ComFi BL24 supports advanced encryption protocols such as WPA2/WPA3 and can be integrated with the hospital’s existing authentication systems (such as 802.1x RADIUS) to ensure that only authorized personnel and devices can access the network and prevent data leakage.
3.4 Hotel and hospitality Industry: Invisible Services for Enhancing Guest Satisfaction
For hotels, wireless networks have become an important criterion for measuring service quality, as indispensable as water and electricity. ComFi BL24 can provide hotels with an outstanding wireless coverage solution:
Full area coverage: From the hotel lobby, restaurant, bar, gym to guest rooms and corridors, the flexible deployment method and powerful coverage capability of ComFi BL24 can ensure no signal blind spots, allowing guests to enjoy high-speed Internet access in any corner.
Personalized experience: Provide independent networks for hotel staff and guests to ensure the stable operation of the hotel’s internal management systems (such as PMS and door lock systems), and at the same time offer guests safe and convenient Internet access services, supporting simultaneous connection of multiple devices to meet their entertainment needs such as watching high-definition videos and making video calls.
Easy to manage: For chain hotels, the ComFi BL24 Dual Band Indoor Wireless aps of all branches can be centrally managed and monitored through the cloud platform, significantly reducing IT operation and maintenance costs and complexity.

ComFi BL24 is not merely a Dual Band Indoor Wireless AP that complies with Wi-Fi 5 standards. It is a complete wireless network solution integrating high performance, high reliability, intelligence and ease of use. It takes 2×2 MU-MIMO technology as its core, achieves an ultra-fast connection of up to 1200Mbps through dual-frequency concurrency, and ensures wide and stable signal coverage with the help of a carefully designed built-in antenna. Its zero-sensing seamless roaming technology solves the problem of network interruption during movement, and the linearly adjustable transmission power function makes it possible to conduct refined network planning in complex environments. The PoE/DC dual power supply mode has elevated the flexibility and convenience of deployment to a new level.

Whether it is a commercial office building that requires high-density access and efficient collaboration, a school that pursues interactive teaching and resource sharing, a hospital that demands absolute stability and security, or a hotel that is committed to enhancing guest satisfaction, ComFi BL24 can become an ideal choice for building outstanding wireless networks with its industrial-grade design, low-power optimization, multi-scenario applicability, and easy installation and maintenance features.

Today, with the digital wave sweeping the world, choosing the right Dual Band Indoor Wireless AP is to lay a solid and broad information superhighway for the future development of enterprises or institutions. ComFi BL24, with its outstanding comprehensive performance and profound understanding of user needs, is undoubtedly your most reliable partner on this road. It injects stable and efficient network support into every corner, helping your organization achieve digital transformation and move towards a smarter and more efficient future.
