AC+AP vs Router Guide

Is your home WiFi slow down to a crawl when it goes through walls? Is your three-story villa's Wi-Fi network constantly dropping? Are you driven to the brink of despair by changing passwords on multiple routers?

Many people get confused by "AC," "AP," and "wireless router" when renovating or upgrading their network—they're all devices that can broadcast WiFi, so how do you choose? Which one is the most convenient for small apartments? And for large apartments, choosing the right one can help you say goodbye to internet outages! Today, we'll break it down in plain language so you won't make the same mistakes again!

What exactly is a wireless AP？

AP stands for Wireless Access Point. Its core function is very simple: to convert wired networks into WiFi signals, essentially acting as a "wireless signal transmitter" that allows devices such as mobile phones, computers, and smart home devices to connect wirelessly.

However, there are two types of APs with vastly different functions, so be careful not to buy the wrong one!

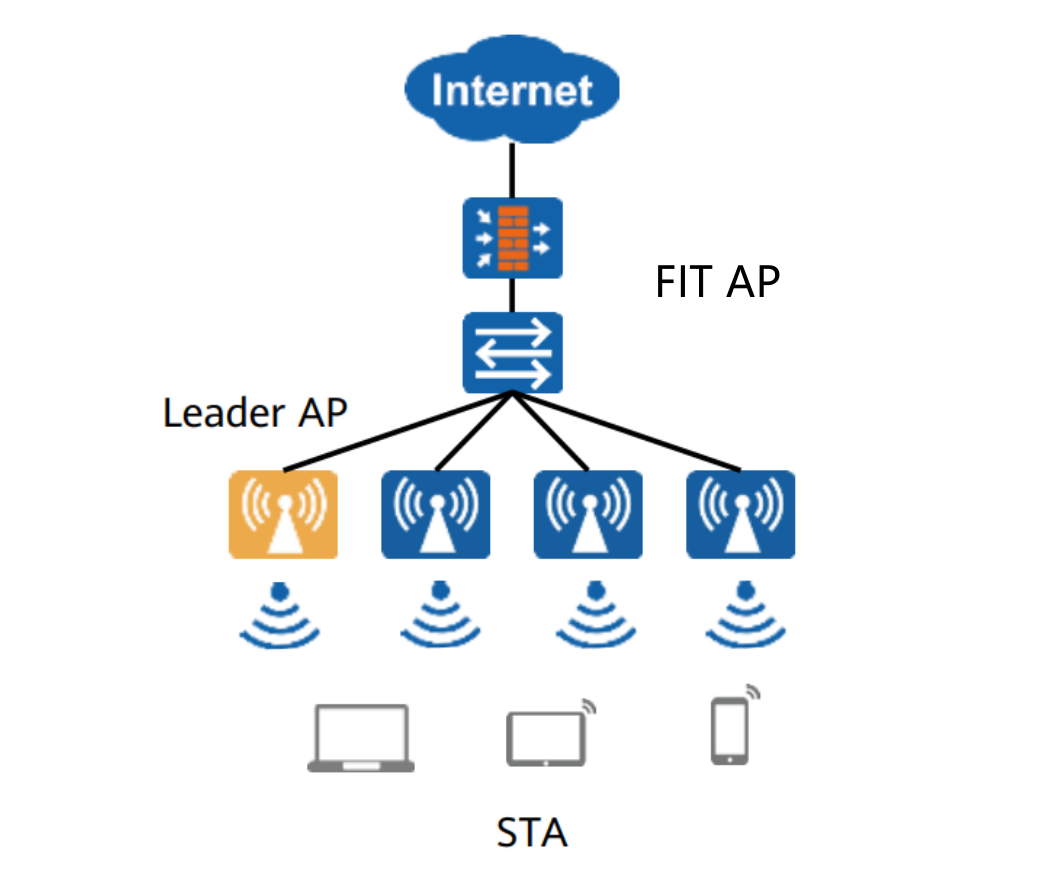

1.Thin AP (FIT AP): "Signal node requiring command"

Thin APs are the mainstream choice for commercial scenarios and large-scale residential networking. Their main characteristic is that they lack independent configuration capabilities and must rely on a dedicated "manager"—the wireless controller (AC)—to function properly. They act as pure signal transmitters, not handling complex functions such as dial-up internet access or security protection; their sole focus is on wireless signal coverage.

Each thin AP is equipped with an Ethernet interface, allowing direct connection to a wired network. Theoretically, adding one thin AP can exponentially expand network coverage. When deploying multiple APs (e.g., in office buildings or villas), centralized management via an AC eliminates the need for individual debugging, significantly reducing maintenance costs. Most professional APs on the market are thin APs; for example, wireless APs require a controller or switch from the same brand.

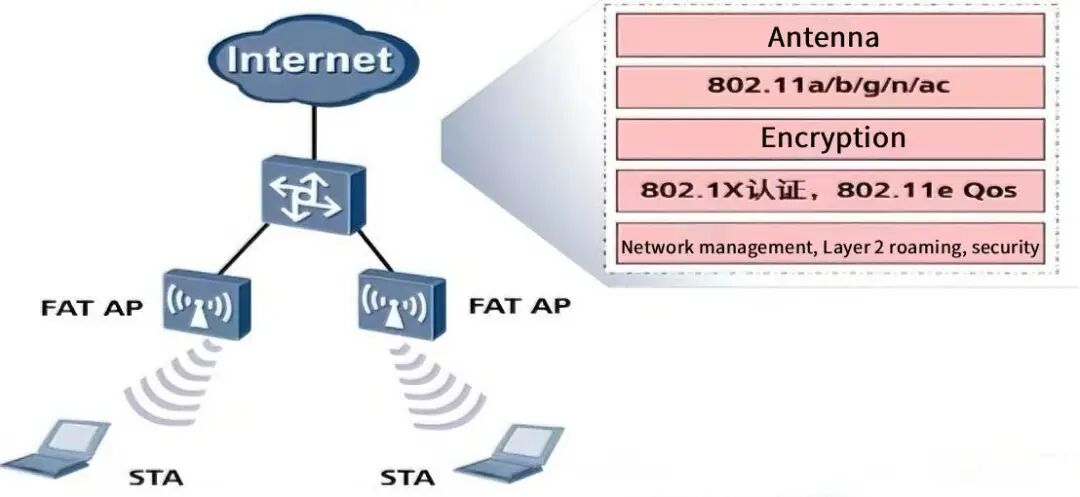

2. Fat AP（FAT AP）：“All-in-one network machine”

A "fat AP" is essentially a wireless router used in homes, a versatile device that integrates multiple functions. Besides wireless access, it also features a WAN port (for connecting to broadband internet service providers) and a LAN port (for connecting wired devices like computers and TVs). It supports core functions such as NAT (Network Address Translation), DHCP server (automatically assigning IP addresses), and DNS resolution. Some models also offer VPN access and firewall security features.

Fat APs do not rely on other devices; they can be used simply by plugging in a power source and connecting to broadband. They are perfectly suited for small apartments, studios, and other similar scenarios, balancing convenience and cost-effectiveness.

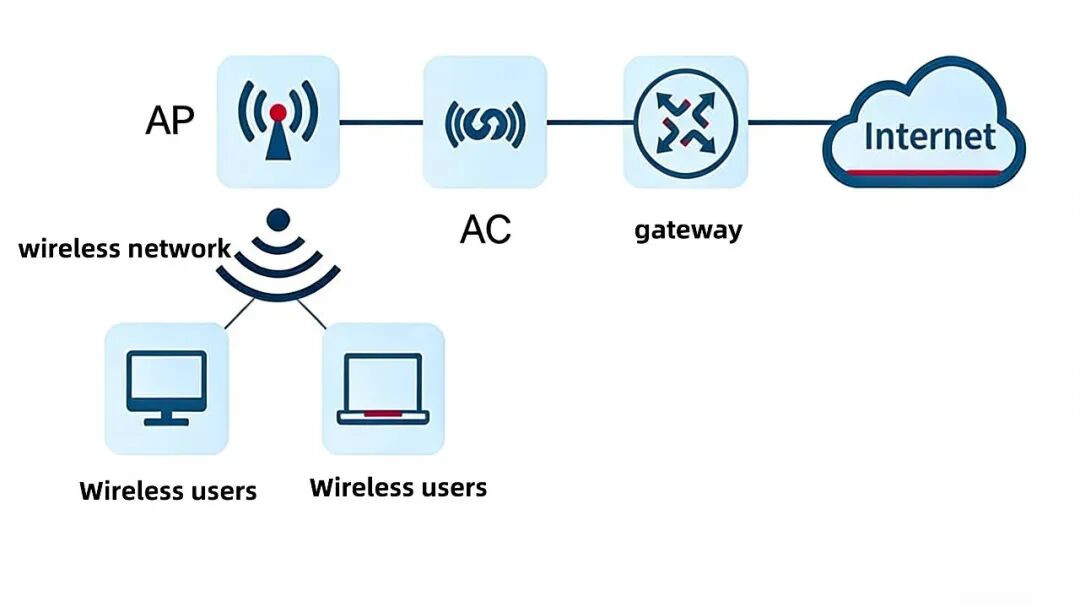

AC: The "central management hub" of the wireless AP

AC stands for Wireless Access Point Controller. It is the "dedicated manager" for thin APs and the core device in the AC+AP networking architecture. Its main function is to centrally manage all thin APs within the local area network, making multi-AP networking more efficient and stable.

AC's core management functions include:

Unified configuration distribution:Set the WiFi name, password, and encryption method for all APs at once. Subsequent changes only need to be made once, and all APs will take effect simultaneously, avoiding the hassle of modifying multiple devices one by one.
RF intelligent optimization:Automatically detect AP signal strength and channel occupancy, adjust transmission power and channel to avoid signal interference between multiple APs;
Centralized security management:Unified settings for access permissions and firewall rules prevent unauthorized access and data leaks, ensuring network security;
PoE power supply support:Most AC devices integrate PoE functionality, allowing them to provide both data transmission and power to the AP simultaneously via a single network cable, simplifying the cabling process.

It should be noted that there are brand compatibility limitations between AC and AP. Currently, only AC and AP from the same brand can achieve normal communication and management.

Access Points (APs) and Wireless Routers: Core Differences

Many people wonder, "They're both Wi-Fi providers, so what's the difference between an access point (AP) and a router?" The core difference lies in their functional positioning and networking capabilities:

Comparison Dimensions	Slim AP	Wireless Router (Fat AP)
Functional positioning	Pure wireless signal transmitter, single function	Integrated routing, switching, and wireless access functions
Work Dependence	It must be used with AC to configure and use	Works independently, no external equipment required
Interface configuration	Equipped only with an Ethernet interface (for wired network connection)	Includes a WAN port (for connecting to the external network) and a LAN port (for connecting to terminals)
Network Scale	Supports large-scale deployment (dozens of APs working together).	Suitable for small-scale scenarios (single unit coverage)
roaming experience	Supports seamless roaming, ensuring uninterrupted connection even when the device is in motion	Multiple devices are networked in independent subnets, making network disconnection easy during switching
Management methods	Centralized management and efficient batch configuration	Decentralized management and cumbersome configuration of multiple devices

In simple terms, a thin AP is like a "wireless module" in a wireless router, focusing solely on signal coverage; while a wireless router is a "multi-functional complex," suitable for one-stop networking in a single scenario. In complex environments with multiple partitions and large areas, the RF optimization advantages of professional thin APs are obvious, with signal stability far superior to ordinary wireless routers, effectively reducing latency and dropped connections.

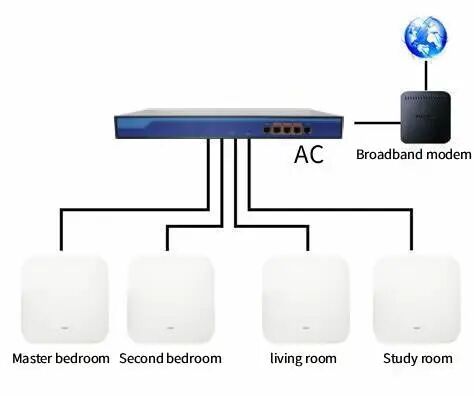

AC+AP networking: a large-area solution

The core logic of AC+AP networking is "each performing its own function and professional division of labor”：

Router:Responsible for dialing up to the internet, connecting the external network and the internal network, and handling data forwarding;
Switch:Expand the number of network ports to connect the AC to multiple APs and extend the wired network;
AC:Centralized management of all APs, responsible for configuration distribution, signal optimization, and security control;
AP:Focusing on wireless signal coverage, ensuring stable WiFi access in every corner.

The advantages of this networking method are particularly prominent in large-scale scenarios:

Seamless roaming experience:The whole house shares a single WiFi name and password. When mobile devices such as phones and tablets move around, they will automatically switch to the AP with the strongest signal, so watching videos, playing games, and making video calls will not be interrupted.
Efficient and convenient management:Whether you deploy 10 or 100 APs, you can configure them with one click via AC, change passwords, check status, and prevent unauthorized network access all in one step;
Stable and uniform coverage:By deploying multiple access points in a distributed manner and combining them with the intelligent radio frequency management of the AC, WiFi dead zones can be eliminated, and the signal attenuation problem across floors and multiple partitions can be solved.
The wiring is simple and aesthetically pleasing:With PoE power supply, the AP does not need to be connected to an additional power cord; a single network cable can handle both power supply and data transmission, eliminating the need to reserve additional power interfaces during renovation.

Selection Guide: How to Choose for Different Scenarios?

Small apartments (≤100㎡) and a small number of terminals (≤10 units)：Prioritize wireless routers (fat access points), which are plug-and-play, cost-effective, and meet daily internet needs;
Large apartments (villas, duplexes), office spaces, shops, etc：AC+AP networking is the preferred choice to address the core needs of wide-area coverage, seamless roaming, and centralized management;
Precautions：When purchasing AC and AP, make sure to choose products from the same brand (MovingComm) to avoid compatibility issues; select devices that support the corresponding concurrency and speed based on the number of connected terminals and bandwidth requirements.

The core of network setup is "matching needs": small apartments prioritize convenience and ease of use, so a wireless router is sufficient; large-scale applications emphasize stable coverage and efficient management, making an AC+AP (Access Controller + Access Point) the professional choice. Understanding device positioning and network logic allows you to choose the right solution for your specific scenario, eliminating WiFi dead zones and network outages.
