Office Wireless Coverage: Ceiling-Mount AP or Wall-Plate AP? What's the Difference Between the Two Solutions?

Many companies, when planning WiFi during the renovation phase, tend to think, "Installing more APs will definitely give us better signal." But after installation, they often find that some areas have full signal while others still lag—and they end up blaming the equipment.

The problem usually isn't the equipment; it's choosing the wrong type.

Ceiling-mount APs and wall-plate APs are the two most common wireless coverage solutions for office scenarios, and their use cases are completely different. Choose the wrong one, and for the same budget, the actual performance can vary by half.

1. Ceiling-Mount AP: The Efficiency Choice for Open Spaces

Ceiling-mount APs are installed on the ceiling, with signals spreading naturally in all directions, offering wide coverage and high device capacity. Their core advantage is covering the largest area with the fewest devices.

Suitable Scenarios:

• Open office areas: Without solid walls between workstations, a single ceiling-mount AP can stably cover 80-120㎡, supporting 30-60 concurrent terminals

• Meeting rooms and public corridors: Open spaces with high foot traffic where ceiling-mount APs offer the highest coverage efficiency

• Offices with normal ceiling heights (2.6–3.5 meters): Proper mounting height ensures minimal signal attenuation

Advantages:

• Wide coverage area, fewer devices needed, moderate per-unit cost, lower total cost

• Good heat dissipation, mature antenna design, stable performance

• Enterprise-grade ceiling-mount APs generally support centralized AC management—one console configures everything, ensuring smooth roaming

Drawbacks:

• Limited wall penetration; signal attenuates noticeably through one or two load-bearing walls

• Requires a ceiling—false ceilings need maintenance access; solid ceilings require drilling and cabling, which must be planned during the renovation phase

2. Wall-Plate AP: Precise Coverage for Individual Rooms

Wall-plate APs look similar to standard wall network outlets and simply replace the existing Ethernet wall plate in each room. Since the signal source is inside the room without penetrating walls, every room gets full signal strength.

Suitable Scenarios:

• Private offices, meeting rooms, dormitories, guest rooms: Each room is small (typically 15–30㎡) but demands high signal quality

• Areas with many load-bearing walls where ceiling-mount APs can't reach: Wall-plate APs address coverage gaps where signals can't penetrate walls

• Retrofit projects without ceiling modifications: Each room already has a network port—swapping the wall plate with an AP adds WiFi without rewiring

Advantages:

• No signal dead zones; every room has independent full signal coverage

• Simple installation—just swap out the existing wall plate, no structural damage

• Flush-mount 86-type design sits flush with the wall, blending in aesthetically

Drawbacks:

• Small coverage area; one wall-plate AP typically covers only one room, driving up total costs for multi-room deployments

• Limited heat dissipation and device capacity compared to ceiling-mount APs, typically supporting 10–20 concurrent terminals

• Management can be more cumbersome—some brands' wall-plate APs don't support centralized AC management and require individual configuration

3. Comparison Table: How to Choose

4. The Pro’s Hybrid Approach

In practice, the most effective approach is often a hybrid mix: cover open office areas with ceiling-mount APs for comprehensive coverage, and use wall-plate APs in private offices and meeting rooms to fill coverage gaps. Both device types are managed by a single AC controller, ensuring seamless roaming—users won't even notice when their devices switch between APs.

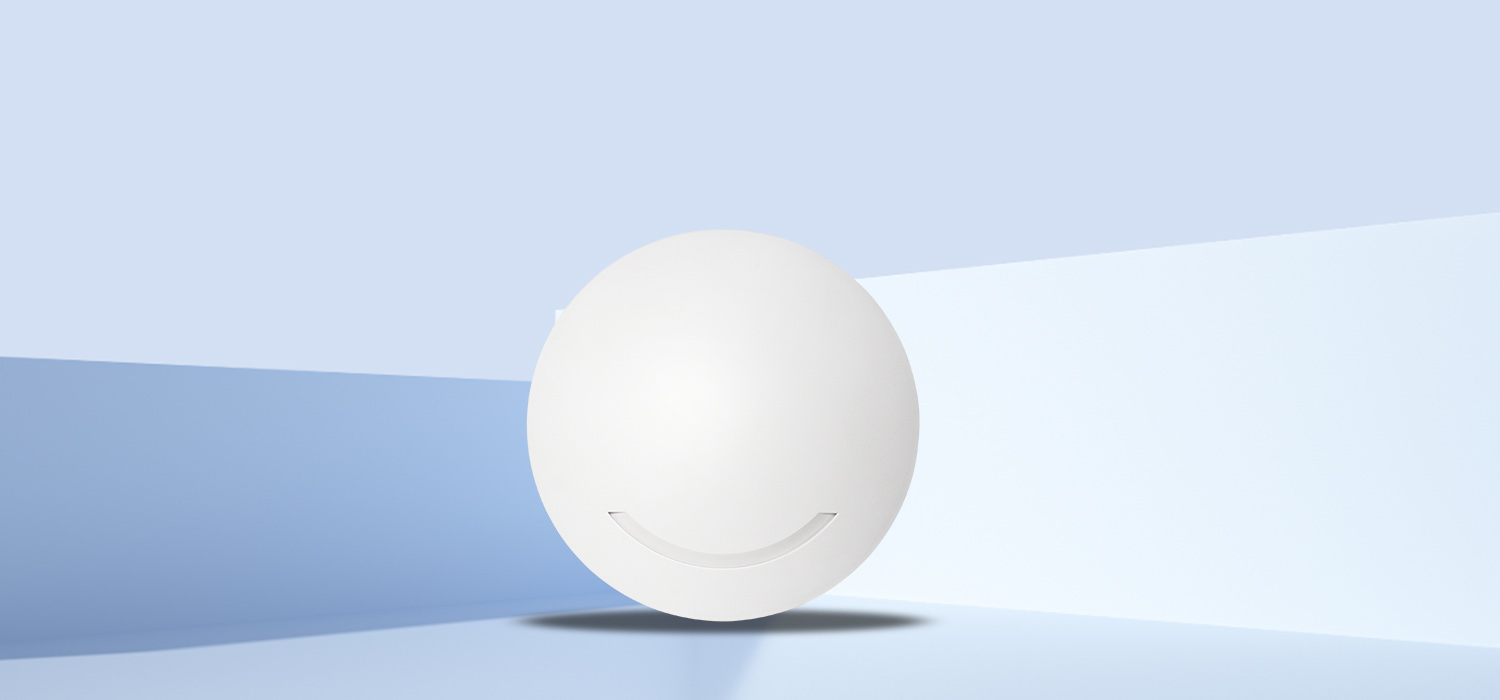

Take the ComFi BL24 ceiling-mount AP as an example. This product supports both 2.4GHz and 5GHz bands concurrently, with a total throughput of up to 1200Mbps. It features a built-in hardware watchdog for automatic reboot recovery in case of anomalies and supports PoE power supply for simpler cabling—making it ideal for open office areas, meeting rooms, and similar centralized coverage scenarios.

For wall-plate APs, choose models that support standard PoE power and adopt the 86-type flush-mount design, replacing the existing wall plates directly without rewiring or structural damage.

5. A Reminder for the Renovation Phase

WiFi coverage is one of the most easily overlooked aspects during renovation. Contractors may say, "Just install a few APs," but you may find half the rooms still have no signal afterward.

During the planning phase, be sure to clarify three things: Which AP type is used in open areas, which type in private rooms, how many total units, and how roaming is managed. Getting these details nailed down prevents contractors from cutting corners.
