Differences: Cell, Sector, Carrier Frequency, Carrier

In the field of wireless communication, cell, sector, carrier frequency and carrier are four fundamental concepts. They play a significant role in cellular networks, influencing the network's performance, coverage and capacity.

The difference between a cell and a sector

Cell
A cell refers to an area in a wireless communication network covered by a Base Station. It is the basic unit of cellular networks, providing users with wireless signal coverage and services. The features of the community are as follows:

(1) Uniqueness: Each cell has a unique identifier, which facilitates network identification and management.
(2) Varying sizes: The size of a cell depends on factors such as the antenna height of the base station, the transmission power, and the terrain.
(3) Coverage area: The coverage area of a residential community can range from several hundred meters to several kilometers.

Sector

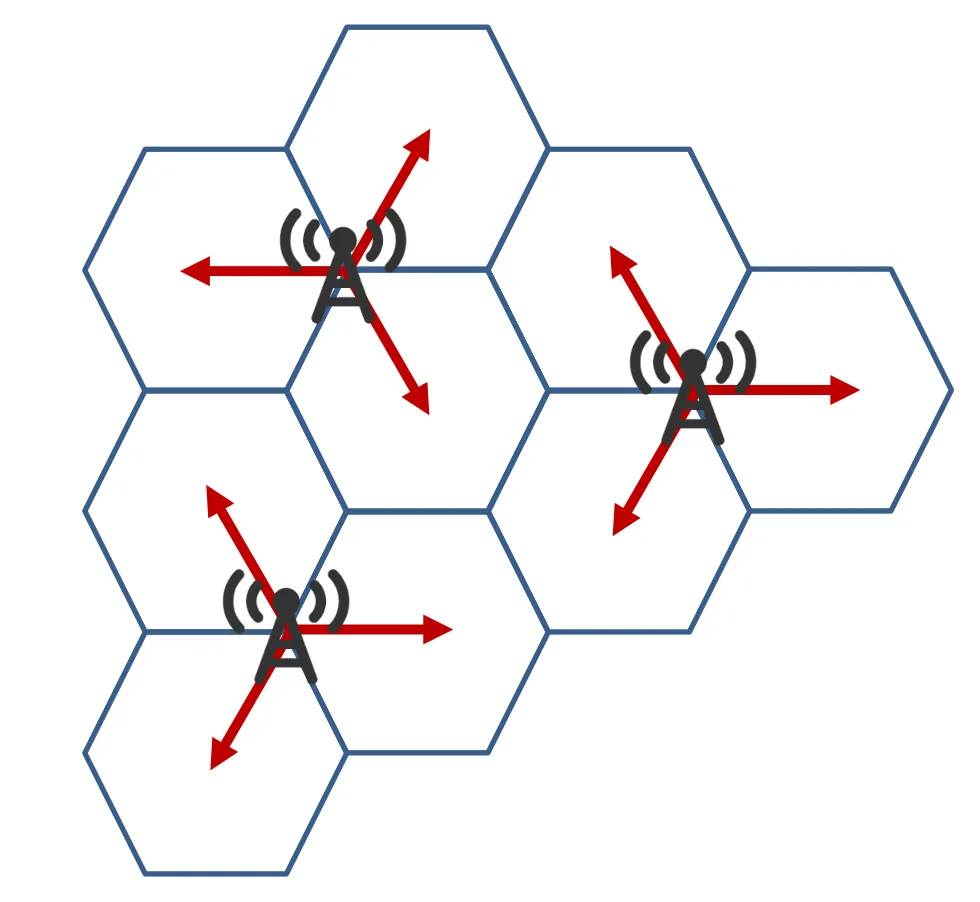

A sector refers to the further division of a cell into parts, which is usually achieved through directional antennas. The characteristics of sectors are as follows:

Directionality: Each sector has a specific coverage direction, usually 120 degrees or 60 degrees.
(2) Enhance frequency reuse rate: By dividing sectors, interference between adjacent cells can be reduced, thereby increasing the frequency reuse rate.
(3) Increase network capacity: The division of sectors helps to enhance the network's capacity and meet the demands of more users.

Summary of the differences: A cell is the area covered by a base station, while a sector is a directional coverage area within a cell. The size and shape of a cell are relatively fixed, while sectors can be adjusted according to actual needs.

The difference between carrier frequency and carrier wave

Carrier Frequency

Carrier frequency refers to the radio frequency used for transmitting signals. In wireless communication, the allocation and utilization of carrier frequencies have the following characteristics:

(1) Frequency allocation: Different networks and services use different carrier frequencies. For instance, GSM networks employ carrier frequencies of 900 MHz or 1800 MHz.

(2) Channel division: The carrier frequency is divided into multiple channels, and each channel is used to transmit one signal.

(3) Unit: The unit of carrier frequency is Hertz (Hz), which indicates the number of vibrations per second.

Carrier Wave

A carrier is an unmodulated radio wave whose frequency carries information during the modulation process. The characteristics of the carrier are as follows:

(1) Modulation process: During the modulation process, the carrier carries information such as sound and data.

(2) Single frequency: The carrier itself is a sine wave of a single frequency.

(3) Information transmission: By altering the amplitude, frequency or phase of the carrier, information can be encoded onto the carrier.

Summary of the differences: The carrier frequency is a specific frequency used for transmitting signals, while the carrier is a radio wave that carries information during the modulation process. Carrier frequency is the frequency attribute of the carrier wave, and the carrier wave is the specific implementation of the carrier frequency.
