ComFi IOT09 WiFi5 Module

In today’s interconnected network world, the demand for intelligent communication will only become stronger and stronger, especially in the field of intelligent industrial control. The ComFi 09 module is a new generation of wireless module launched by Shenzhen Xinghengxun Technology Co., Ltd. for the industrial field. This device provides fast Internet access with the explosive growth of wireless and various wired high-speed broadband access services.

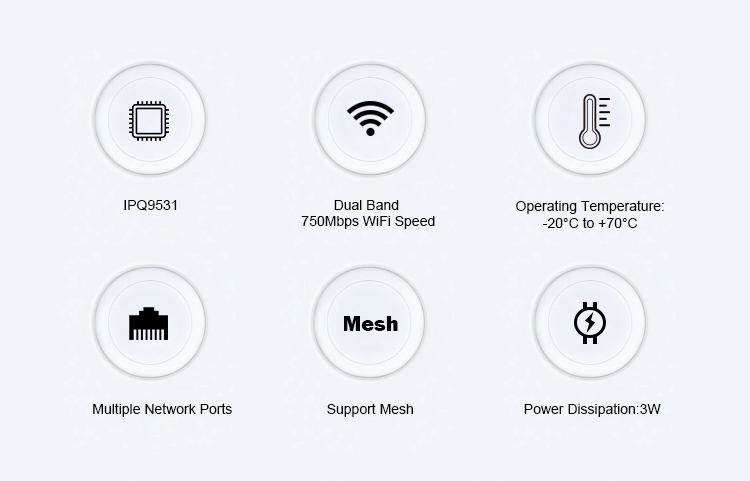

six characteristics

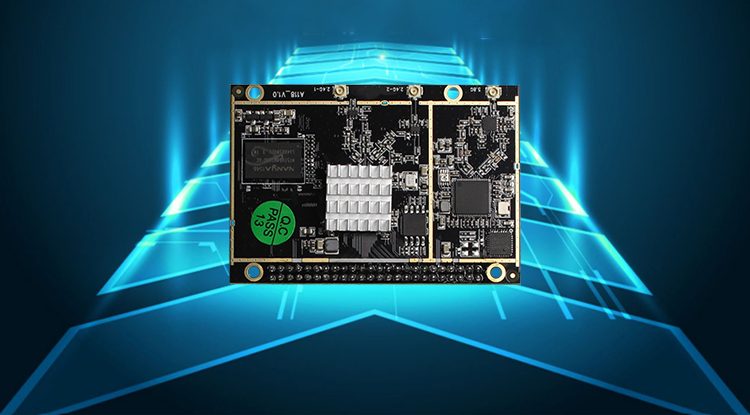

1. Powerful core: IPQ9531 chip, the cornerstone of outstanding performance
The soul of any excellent WiFi5 dual-band transmission module must lie in its core processor. The ComFi IOT09 is equipped with the industry-leading high-performance IPQ9531 chip. This powerful chip is the source of the module’s outstanding performance, integrating an advanced data processing engine and an efficient wireless signal processing unit. For the WiFi5 dual-band transmission module, IPQ9531 means it can easily handle massive data forwarding under dual-band concurrency, ensuring low latency and high throughput even in high-load applications. Whether it is the stable transmission of high-definition video streams or the concurrent reporting of a large amount of sensor data, IPQ9531 can provide powerful performance to ensure the stability and efficiency of the entire WiFi5 dual-band transmission module, making it stand out among similar products.
2. High-speed connection: Dual Band 750Mbps, meeting bandwidth-intensive demands
As a WiFi5 dual-band transmission module, its core value lies in providing high-speed and stable wireless connection. ComFi IOT09 supports dual-band concurrent operation of 2.4GHz and 5GHz, with a maximum wireless transmission rate of up to 750Mbps. This “dual-frequency” feature is its key advantage. The 2.4GHz frequency band has strong penetration and wide coverage, making it suitable for long-distance connections of devices with requirements for wall-penetrating capabilities. The 5GHz frequency band has less interference, a pure channel, and can provide a higher rate, making it highly suitable for bandbandwidth intensive applications such as high-definition video and online games. The design of this WiFi5 dual-band transmission module enables the device to intelligently select the optimal frequency band according to the actual environment, or utilize two frequency bands simultaneously for load balancing, thereby maximizing network efficiency. A rate of 750Mbps is sufficient to meet the bandwidth requirements of the vast majority of Internet of Things devices, industrial terminals, and commercial multimedia applications, ensuring smooth and real-time data transmission.
3. Rock-solid: Wide temperature range from -20°C to 70°C, fearless of harsh environments
The most significant difference between industrial-grade and consumer-grade products often lies in their adaptability to the environment. The ComFi IOT09 WiFi5 dual-band transmission module is precisely designed to meet the demanding challenges. It has a wide operating temperature range from -20°C to 70° C. This feature enables it to surpass the limitations of ordinary modules and operate stably in extreme conditions such as extremely cold outdoor environments, high-temperature factory workshops, and storage environments with huge temperature differences. This industrial-grade reliability ensures that wherever it is deployed, this WiFi5 dual-band transmission module can become a trusted connection node, significantly reducing the risk of equipment downtime caused by changes in environmental temperature and guaranteeing the uninterrupted operation of critical businesses 7×24 hours.
4. Flexible expansion: Multi-network port design empowers diverse applications
An excellent WiFi5 dual-band transmission module should not only have strong wireless capabilities, but also have equally excellent wired connections. The ComFi IOT09 is equipped with multiple network ports. This design greatly expands its application scenarios and flexibility. These ports enable the module to provide wireless access while connecting wired devices such as PLCS, industrial cameras, serial port servers, etc., achieving a perfect integration of wired and wireless networks. In some applications, it can either serve as the main WiFi5 dual-band transmission module to provide wireless coverage for peripheral devices, or act as a wired client to transmit the entire wired network back wirelessly. This multi-port design makes ComFi IOT09 no longer an isolated wireless node, but a flexible network access and distribution center, capable of easily handling various complex network topology requirements.
5. Smart Networking: Supports Mesh, easily achieving large-scale seamless coverage
In scenarios where coverage of large areas or complex-structured regions is required, the coverage capability of a single WiFi5 dual-band transmission module is often limited. ComFi IOT09 perfectly supports Mesh networking technology, which provides an ideal solution for solving the problem of large-scale wireless coverage. Through the Mesh function, multiple IOT09 modules can automatically discover each other and form an intelligent, self-healing and self-organizing wireless network. Data can automatically select the optimal path for jumping between nodes, effectively expanding the coverage area and eliminating signal blind spots. Even if a node or path fails, the network can automatically re-plan the route to ensure that communication is not interrupted. This Mesh network based on WiFi5 dual-band transmission module is simple to deploy and highly scalable. It greatly reduces the network cabling cost and construction difficulty of large-scale projects (such as smart parks, intelligent factories, large warehouses, etc.), achieving true “plug and play” and elastic expansion.
6. Green and efficient: 3W ultra-low power consumption, empowering mobile and portable applications
In the era of the Internet of Things, especially for battery-powered mobile devices and remote terminals, power consumption is a crucial consideration factor. ComFi IOT09 offers powerful performance while keeping the power consumption at an astonishing 3W, which is extremely excellent for a fully functional WiFi5 dual-band transmission module. Ultra-low power consumption brings three core advantages: Firstly, it significantly extends the battery life of portable devices such as handheld terminals and mobile inspection equipment, enhancing user experience and work efficiency. Secondly, in large-scale deployment scenarios, the cumulative energy-saving effect of tens of thousands of modules is very considerable, effectively reducing operating costs and conforming to the trend of green development. Finally, low power consumption means less heat generation, which helps to enhance the module’s operational stability and overall lifespan in closed or high-temperature environments.

750Mbps WlFl Data Rate

The soul of ComFi IOT09 lies in its WiFi5 dual-band transmission module. WiFi5, namely the IEEE 802.11ac standard, is an important milestone in the history of wireless communication development. Compared with the previous generation of standards, it has achieved a qualitative leap in transmission rate, channel utilization rate and anti-interference ability. The “dual-band” design is the “unique secret recipe” for ComFi IOT09 to deal with complex industrial environments. Next, we will delve into how this WiFi5 dual-band transmission module transforms theory into powerful advantages in practical applications.

Dual-frequency parallel operation simplifies complex spectrum management
The WiFi5 dual-band transmission module of ComFi IOT09 supports simultaneous operation on both the 2.4GHz and 5.8GHz frequency bands. This design is not merely a simple superposition of functions, but rather a well-considered and intelligent strategy. The 2.4GHz frequency band, as a veteran in wireless communication, has the advantages of strong signal penetration and wide coverage. However, its drawbacks are equally obvious: the frequency band resources are crowded. Bluetooth devices, ZigBee, microwave ovens, and a large number of older WiFi devices all operate in this frequency band, resulting in severe channel interference and making it difficult to guarantee the stability and speed of data transmission. Especially in factory workshops or commercial environments with dense equipment, the congestion problem of 2.4GHz can become a huge bottleneck for network performance.
The 5.8GHz frequency band, on the other hand, is like a specially developed “highway” for high-speed data transmission. It has more abundant channel resources and is subject to much less interference than 2.4GHz. The 5.8GHz module based on the IEEE 802.11ac standard can utilize a wider channel (such as 80MHz) and more advanced modulation techniques (such as 256-QAM), thereby achieving a transmission rate several times that of 2.4GHz. Its drawback lies in that the higher the frequency, the weaker the signal’s ability to penetrate obstacles, and the relatively smaller the coverage area.
The WiFi5 dual-band transmission module of ComFi IOT09 ingeniously combines the two, achieving complementary advantages. In practical applications, the system can intelligently allocate connection frequency bands for different devices based on real-time network conditions and business requirements. For instance, for sensors that require long-distance connection or are located behind walls with poor signals, they can be prioritized to be connected to the 2.4GHz network to ensure they are basically online. For industrial control instructions that require the transmission of high-definition video, large-scale data synchronization, or are sensitive to latency, they can be forced or automatically guided to the 5.8GHz network to enjoy its high-speed and low-interference high-quality services. This dynamic and intelligent dual-frequency management capability enables ComFi IOT09 to handle various complex industrial field environments with ease, ensuring that the data channels for critical businesses remain unobstructed at all times.
2. Rate aggregation unlocks 750Mbps ultimate performance
Another highlight of the WiFi5 dual-band transmission module of ComFi IOT09 is its maximum theoretical data transmission rate of up to 750Mbps. This figure is not groundless but was achieved through ingenious rate aggregation technology. Specifically, this module, operating in the 2.4GHz frequency band and based on the IEEE 802.11n standard, can achieve a maximum transmission rate of 300Mbps by configuring 2×2 MIMO (Multiple Input Multiple Output) technology. In the 5.8GHz frequency band, based on the more advanced IEEE 802.11ac standard and also using 2×2 MIMO, its maximum rate can reach 432Mbps.
The WiFi5 dual-band transmission module of ComFi IOT09 does not allow users to “choose one” between the two frequency bands. Instead, through advanced frequency band aggregation technology, it logically combines the physical links of the two frequency bands into a virtual high-speed channel. This means that when the connected client device also supports dual-band aggregation, it can simultaneously receive and send data from the 2.4GHz and 5.8GHz frequency bands, and the total rate is the sum of the two, 300Mbps + 432Mbps = 732Mbps, which is approximately equal to the advertised 750Mbps. The improvement brought by this technology is revolutionary. It enables the bandwidth of a single wireless link to be sufficient to carry tasks that previously required multiple wired links to complete.
Imagine in an industrial automation scenario, an AGV (Automated Guided Vehicle) equipped with a ComFi IOT09WiFi5 dual-band transmission module. It not only needs to receive path instructions and task scheduling (with low bandwidth and low latency requirements) from the central control system in real time, It is also necessary to simultaneously transmit the environmental monitoring video captured by the high-definition camera it is equipped with (with high bandwidth requirements). Under traditional single-band WiFi, video streams may encroach upon the channels of control instructions, causing delays or even packet loss, and posing security risks. With the WiFi5 dual-band transmission module of ComFi IOT09, control instructions can be precisely issued through the 5.8GHz high-speed channel, while the video stream can be transmitted in coordination with the 2.4GHz bandwidth. The two do not interfere with each other, ensuring the safety and efficiency of AGV operation. This perfect combination of “high speed” and “high reliability” is precisely the core value of ComFi IOT09 as a top-of-the-line WiFi5 dual-band transmission module.

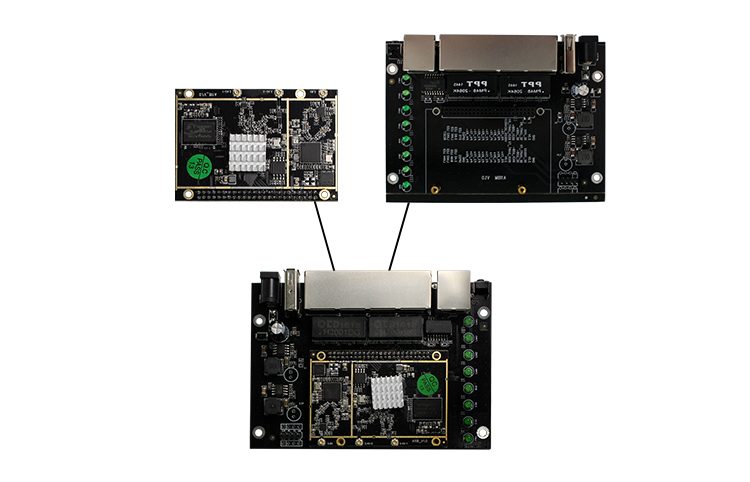

Module+Evaluation Base Board

If the powerful WiFi5 dual-band transmission module is the “soul” of ComFi IOT09, then its ingenious design of “Module+Evaluation Base Board” is its “robust body” that can adapt to harsh industrial environments. In the industrial sector, the challenges faced by electronic devices are far beyond those of ordinary consumer-grade products. Extreme temperatures, violent voltage fluctuations, intense electromagnetic interference and continuous physical vibrations all pose ruthless tests to the stability of the equipment. From the very beginning of its design, ComFi IOT09 has integrated industrial-grade reliability requirements into every detail.

Standardized interfaces empower flexible integration
The core module of ComFi IOT09 itself adopts a highly integrated design, but the interfaces it leads out follow industrial standards. This enables it to be easily integrated into various main control boards or device systems like a standard “building block”. Whether communication is required through buses such as USB, SDIO or PCIe, ComFi IOT09 can provide corresponding pin definitions, greatly reducing the development difficulty and time cost for downstream customers. This modular design concept enables users not to design complex RF circuits from scratch. They only need to focus on the development of their core business logic and can quickly endow the product with powerful WiFi5 dual-band transmission module functions.
2. Wide-voltage power supply and multiple protections, fearless of grid fluctuations
The power supply environment in industrial sites is often very complex, and instantaneous spikes, sags or surges in grid voltage are common occurrences. Ordinary power supply designs are extremely prone to damage as a result. The evaluation baseplate of ComFi IOT09 integrates an advanced wide-voltage power management chip, typically supporting a DC voltage input range of 9V to 36V or even wider. This means it can be directly connected to an industrial standard 24V power supply system without the need for additional voltage stabilizing modules. More importantly, the base plate integrates multiple protection circuits such as overvoltage protection, overcurrent protection, reverse connection protection and surge absorption. These circuits are like loyal guards. When there is an abnormality in the power grid, they can quickly cut off or suppress harmful energy, ensuring the safety of the core WiFi5 dual-band transmission module and greatly enhancing the survival ability of the device under harsh power supply conditions.
3. Excellent environmental adaptability, capable of handling extreme challenges with ease
Temperature is a key factor affecting the lifespan and stability of electronic components. The WiFi5 dual-band transmission module and its base plate of ComFi IOT09 follow industrial-grade standards in both component selection and PCB design. Its operating temperature range can usually reach -40℃ to +85℃, or even wider. This means that whether it is the outdoor base stations in the icy and snowy north or beside the blast furnaces in the sweltering steel mills in the south, ComFi IOT09 can maintain stable operation without downtime or frequency reduction. In addition, its PCB board adopts gold plating technology, which has excellent anti-oxidation and anti-corrosion capabilities and can resist the erosion of damp, salt spray and other environments. The high-strength structural design and carefully selected connectors also endow it with certain anti-vibration and anti-shock capabilities, ensuring that the connection remains reliable even on mobile devices or production lines with continuous vibration. It is the accumulation of these details that has forged the rock-solid industrial quality of the ComFi IOT09 WiFi5 dual-band transmission module.

Compact and portable

In the era of the Internet of Everything, the miniaturization, portability and intelligence of devices have become an irreversible trend. Especially in Internet of Things (iot) terminal devices, the extremely precious internal space places strict demands on the volume of each component. ComFi IOT09 deeply understands this trend and brings the design philosophy of “small but beautiful” to the extreme.

Millimeter-level dimensions, gram-level weights

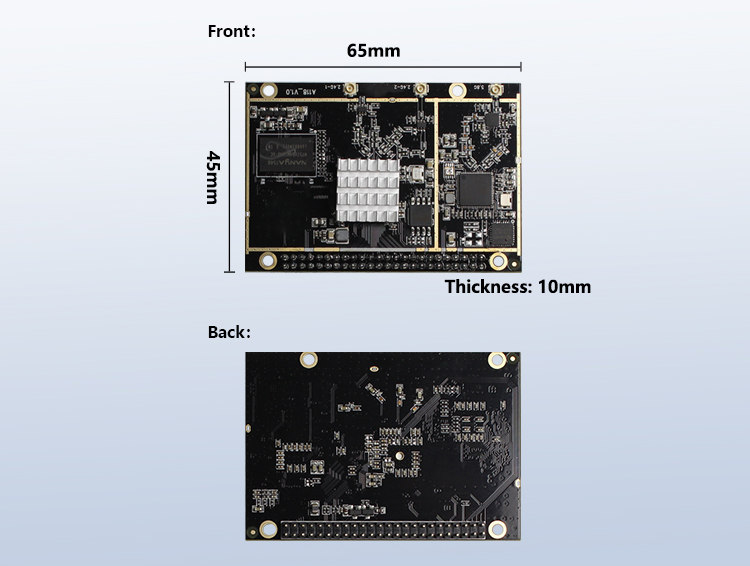

The core part of the WiFi5 dual-band transmission module of ComFi IOT09 measures only 65mm x 45mm x 10mm and weighs as little as 11 grams. What concept is this? It is one circle smaller than a standard business card and weighs about as much as two one-yuan coins. This extremely compact design enables it to be easily embedded in any space-constrained device. Whether it is handheld data terminals, smart wearable devices, micro-sensor nodes, or even mobile platforms such as drones and robots that are highly sensitive to loads, ComFi IOT09 can provide them with powerful wireless connection capabilities without adding additional volume and weight burdens.
2. Modular design accelerates the product launch cycle
Behind this compact size lies its highly modular design concept. The WiFi5 dual-band transmission module of ComFi IOT09 integrates all key components such as the RF transceiver, baseband processor, power amplifier, low-noise amplifier and related matching circuits on a small PCB board, forming a fully functional independent unit. For equipment manufacturers, this means they do not need to invest a lot of resources in complex RF circuit design, debugging and certification. They only need to purchase this pre-certified module as a standard part and integrate it into their own products. This not only greatly simplifies the product design process and reduces R&D risks, but more importantly, it significantly shortens the product development cycle and time to market. In the highly competitive market, time is the lifeline. The WiFi5 dual-band transmission module of ComFi IOT09 undoubtedly gives customers a valuable advantage.
3. Enhance flexibility and scalability
Another advantage of modularization is that it enhances the flexibility and scalability of the product. When it is necessary to upgrade the wireless communication standard or replace modules with different performances in the future, equipment manufacturers only need to replace the ComFi IOT09 WiFi5 dual-band transmission module, without having to redesign the motherboard of the entire product. This “plug and play” upgrade approach not only protects the customer’s existing investment but also enables the product to respond quickly to market changes and maintain its competitiveness continuously. It can be said that the extremely compact and modular design of ComFi IOT09 is not only a physical advantage but also a strategic empowerment. It makes the acquisition of wireless connection capabilities simpler, faster and more flexible than ever before.

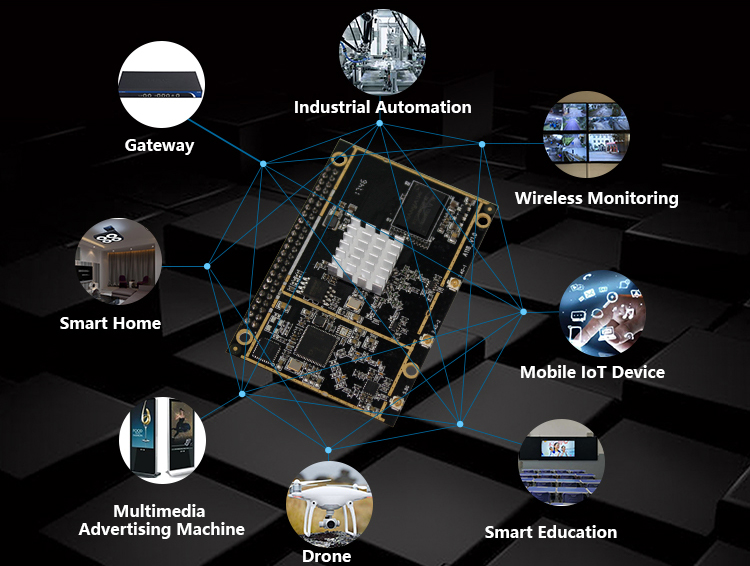

Application scenarios

The ultimate value of a product is reflected in its ability to solve practical problems. With its powerful technical strength as a high-performance WiFi5 dual-band transmission module, rock-solid industrial quality and extremely compact and flexible design, ComFi IOT09 can extend its application boundaries to almost any Internet of Things field that requires stable and high-speed wireless connection. It is like a universal “connector”, injecting strong impetus into the intelligent upgrade of all industries.

1. Industrial Automation: Building Wireless Neural Networks for Smart Factories
In modern smart factories, a large number of industrial robots, AGVs, intelligent instruments, sensors and PLCS (Programmable Logic Controllers) need to exchange data in real time. The traditional wired wiring method is not only costly and complex to install, but also lacks flexibility and is difficult to meet the frequent adjustments of the production line. The WiFi5 dual-band transmission module of ComFi IOT09 provides a perfect wireless alternative for this. Its high speed of 750Mbps and dual-frequency anti-interference capability can ensure the real-time and reliable transmission of massive data such as robot control instructions, high-definition industrial vision inspection data, and equipment status monitoring information. Its industrial-grade wide-temperature and wide-voltage design ensures that the module can operate stably for 7×24 hours without interruption in a workshop environment filled with electromagnetic interference, oil stains and dust. By deploying ComFi IOT09, the factory can build a highly reliable industrial WiFi network covering the entire plant, achieving wireless and flexible connections of production equipment and laying a solid foundation for intelligent manufacturing.
2. Intelligent Transportation: Building an information bridge for Vehicle-Road coordination
Intelligent transportation systems are the key to achieving efficient and safe operation of urban transportation. In scenarios such as intelligent connected vehicles, smart buses, electronic police, and traffic signal control, low-latency and high-bandwidth information exchange is required between vehicles and roadside facilities (V2I) as well as between vehicles themselves (V2V). The WiFi5 dual-band transmission module of ComFi IOT09 can be integrated into the on-board OBU (on-board Unit) or RSU (Roadside Unit). Its 5.8GHz frequency band can be used to transmit key safety information such as real-time vehicle location, speed, and driving intention, as well as high-bandwidth services like high-definition map download and in-car entertainment. The 2.4GHz frequency band can be used as a backup or for connecting some low-rate auxiliary devices. Its compact size and wide temperature range enable it to easily adapt to the harsh environment of limited vehicle space and large temperature differences, providing a solid communication guarantee for the stable operation of the vehicle-road coordination system.
3. Smart Agriculture: The wireless tentacles for Precise Irrigation and data Collection
Smart agriculture achieves precise monitoring and scientific management of the growth environment of crops through various sensors deployed in the fields (such as soil temperature and humidity, light, and CO2 concentration sensors) and intelligent control devices (such as automatic irrigation systems and unmanned aerial vehicles). These devices are usually widely distributed and deployed in harsh environments with inconvenient municipal power supply. The WiFi5 dual-band transmission module of ComFi IOT09 can be integrated into the field gateway or data acquisition terminal. Its low power consumption feature (combined with appropriate power management) and dual-band capability enable it to flexibly build regional wireless networks. The 5.8GHz is used to quickly transmit the large amount of sensor data collected back to the cloud server, while the 2.4GHz is used for near-field communication with surrounding sensor nodes. Its industrial-grade protection design ensures that the module can withstand the erosion of natural environments such as wind, rain and sun exposure, becoming a reliable wireless tentacle connecting the “digital farmland” and the “smart brain”.
4. Other broad application scenarios
In addition to the above-mentioned fields, the application potential of ComFi IOT09, this WiFi5 dual-band transmission module, goes far beyond this:
Telemedicine: Integrated into portable medical monitoring devices, it enables wireless real-time transmission of patients’ vital sign data, allowing doctors to remotely monitor the condition.
Environmental monitoring: Monitoring stations deployed in mountain forests, rivers, atmospheres and other environments transmit the collected environmental data wirelessly, providing data support for environmental protection decisions.
Security monitoring: It provides stable and reliable network connections for security devices such as wireless high-definition cameras and intelligent access control systems, especially suitable for scenarios where wiring is difficult or temporary deployment is required.
Energy management: In smart grids, photovoltaic power stations, and wind farms, it is used for equipment status monitoring and wireless meter reading of energy data to enhance the efficiency of energy management.

ComFi IOT09 is by no means an ordinary wireless communication module. It is meticulously crafted by Shenzhen Xinghengxun Technology. With a high-performance WiFi5 dual-band transmission module at its core, it is a revolutionary product that deeply integrates industrial-grade reliability design, an extremely compact modular concept, and broad adaptability to various application scenarios. It addresses the industrial Internet of Things’ demand for data transmission bandwidth through a dual-band aggregation high rate of 750Mbps. With a hardware design featuring wide temperature and voltage ranges and multiple protections, it has conquered the harsh industrial environment. With millimeter-level dimensions and gram-level weights, it breaks the spatial constraints of device integration.

ComFi IOT09 has emerged as a rising star in the field of wireless communication for the Internet of Things. Its features such as high stability, high reliability, industrial-grade design, rich interfaces, ease of use and development, self-organizing network function and low power consumption make it an ideal choice for building the future intelligent world. Whether in cutting-edge fields such as smart home, intelligent transportation, smart city, smart agriculture or industrial automation, ComFi IOT09 can provide stable, reliable and efficient wireless network solutions. Choosing ComFi IOT09 means choosing a top-of-the-line WiFi5 dual-band transmission module, and even more so, choosing a future that is smarter, more efficient, more convenient and full of infinite possibilities. With its powerful technological strength, it is laying a solid wireless highway for the digital transformation of thousands of industries, leading us to jointly move towards a brilliant tomorrow of the Internet of Everything.
