Dear friends, hello everyone.
When we talk about "surfing the internet", the images that come to mind are usually the white plastic boxes (routers) at home, or the "small squares" on the ceiling of the office. But in factory workshops, beside highways, even on speeding trains, there is also a group of "network guardians" working silently. They are industrial routers.
Although they may look more "rough and rugged", the technology they contain and the challenges they face are far more complex than those of home routers. Today, we will use the technical highlights of the latest generation of industrial 5G routers to conduct a deep exploration of industrial networking.
一、Not just "fast": The transformation brought by Wi-Fi 6
You may have heard of Wi-Fi 6 (802.11ax), knowing that it is faster than the previous generation. However, in industrial settings, its significance goes far beyond just being "fast".
Measures for "crowded" equipment: In industrial sites, there may be hundreds of sensors, cameras, and robotic arms that need to be connected to the network simultaneously. Wi-Fi 6 brings UL/DL MU-MIMO (uplink/downlink multi-user multi-input multi-output) technology. You can think of traditional Wi-Fi as a single-lane road, where all vehicles (data) can only queue up and pass through. The MU-MIMO technology is equivalent to instantly widening the road to 4 or even 8 lanes, allowing the AP (access point) to communicate simultaneously with multiple terminals, significantly increasing network capacity and efficiency.
Say goodbye to "congestion" and "delay": Another key technology is OFDMA (Orthogonal Frequency Division Multiple Access). It's somewhat like on a highway, where a large truck (a user's data packet) is split into many small trucks, and they travel side by side with other users' small trucks. This significantly reduces the time for data to queue up and wait, which is also to reduce the delay. It is crucial for industrial control instructions that require real-time responses.
Smart "Power-saving Mode": In industrial environments, there are many wireless sensors powered by batteries. Wi-Fi 6 introduced the TWT (Target Wake Time) feature. It's like a teacher and students making an agreement: "Classmates, we will only be active from 10 to 15 minutes each hour. The rest of the time, you can rest." Thus, the wireless terminals can "take a nap" when there is no data transmission, significantly extending the battery life.
二、Why use "5G" in the factory?
The document mentions support for both 5G SA (standalone networking) and NSA (non-standalone networking) modes. In the industrial sector, the arrival of 5G represents a true revolution.
SA vs. NSA: Two "Starting Positions": In simple terms, NSA is the "accelerated run" for 5G construction. It utilizes existing 4G base stations to allow users to experience 5G's high speed first. While SA is building a "separate track" for 5G, not only providing high speed but also featuring ultra-low latency and massive connectivity capabilities. Industrial applications, such as remote control of excavators and autonomous AGV vehicles, all require the "certainty" of low latency under the SA mode.
"Lock" the best signal: The industrial environment is complex and there may be signal interference. The "Lock Band, Lock Base Station" function mentioned in the document allows engineers to manually specify which specific 5G frequency band or base station the router should connect to. It's like in a noisy market, you actively block out other sounds and focus only on the key information on your own channel to ensure the stability of communication.
三、The "hardcore" survival strategies for the industrial sector
The home router operates in a comfortable air-conditioned room, while industrial routers might be hung on power poles exposed to the scorching sun, or placed next to vibrating machines. Therefore, they have their own set of "survival rules".

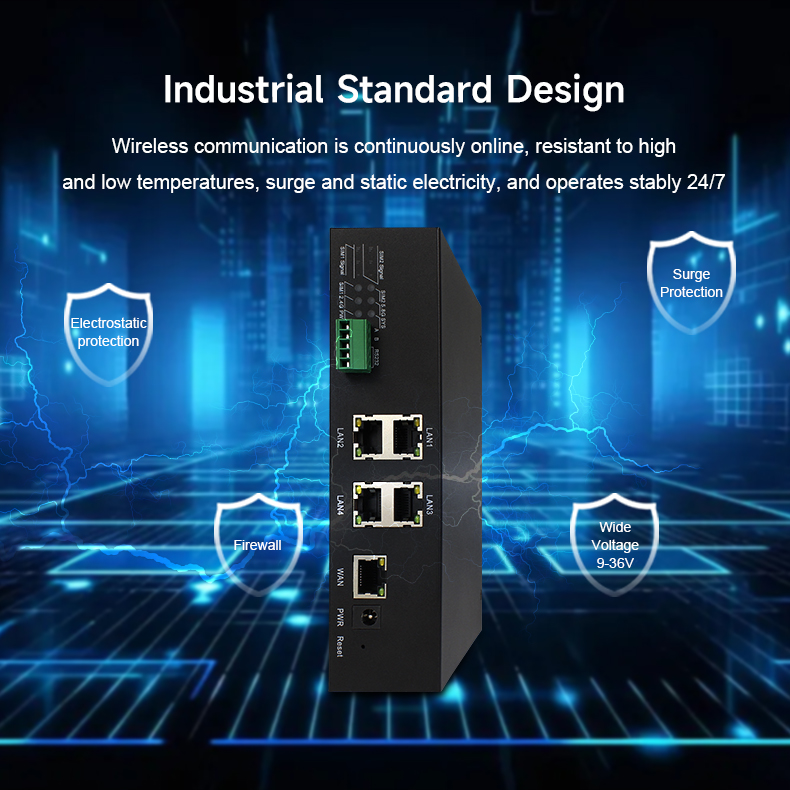

Invincible body: Industrial routers usually have a metal casing and a fanless cooling design. The absence of a fan means there are no vulnerable mechanical components, which not only reduces the number of potential failure points but also enables efficient heat dissipation through the casing, capable of operating in extreme temperatures ranging from -30°C to 60°C.
Not Afraid of Lightning and Thunder: There are numerous high-power equipment in industrial sites, and the power grid fluctuates greatly. Lightning surges are quite common. The power interface and network port of industrial routers are equipped with high-level electromagnetic isolation protection and surge protection circuits (such as the 1.5KV and 15KV protection mentioned in the document). This is equivalent to giving the router an "insulating suit" and a "lightning rod", ensuring stable operation even in harsh electrical environments.
The commitment to always being online: For critical monitoring or control points, the network must never be disconnected. Industrial routers usually come with dual SIM card slots. When the signal from one operator is poor, it can automatically switch to another. Additionally, the built-in hardware watchdog constantly monitors the system status. Once it detects a "crash", it can automatically restart to restore the system, achieving "uninterrupted connection" even without human intervention.
From the efficient concurrency brought by Wi-Fi 6, to the flexible and low-latency capabilities provided by 5G, and to the robust industrial-grade protection, these technologies collectively form the solid foundation of the modern industrial internet. They may not frequently appear in the public eye like consumer electronics, but it is precisely these "behind-the-scenes heroes" that support every data flow in intelligent manufacturing, smart transportation, and smart energy, and drive the physical pulse of the digital world.
The next time you pass by a base station or see the flashing signal lights in a factory, why not think about it? There might be a "special forces" router there, quietly on duty in extreme conditions, for our era of ubiquitous connectivity.
