5G‑A Uplink: 7 Key Fixes

Live streaming and short video uploads are only the beginning. AI phones, smart glasses, industrial sensors, and autonomous driving terminals continuously transmit images, sensor data, environmental information, and interaction commands to the cloud. Traditional 5G networks, designed with a downlink‑first mindset (TDD frame structure, slot configuration, spectrum allocation), are showing bottlenecks in the face of exploding uplink demand.

Against this backdrop, operators have successively released 5G‑A super uplink white papers, systematically outlining uplink enhancement paths. Through multi‑dimensional optimization in time, frequency, space, and terminal sides, these technologies address the uplink shortfall and support large‑scale commercial deployment of new services.

Seven Core Uplink Enhancement Technologies in 5G‑A

1. Flexible Frame Structure Adjustment

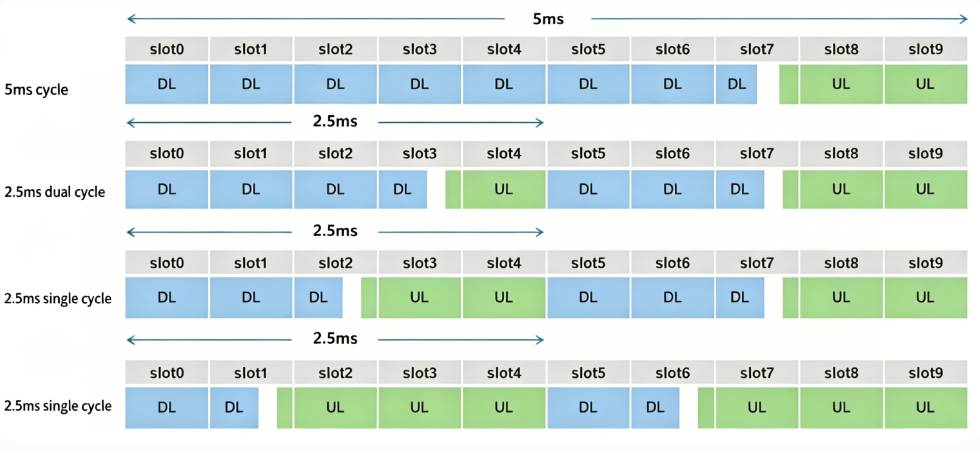

Mainstream 5G bands in China use TDD with fixed slot divisions for uplink and downlink. Current live network frame structures have a high downlink ratio (e.g., 2.6GHz ~7:3, 3.5GHz ~7:3). To accommodate uplink‑intensive scenarios, an uplink‑optimised frame structure can be deployed on dedicated bands such as 4.9GHz, raising the uplink resource ratio to 40%–60% for video backhaul, industrial data collection, etc. Unified frame configuration across macro cells is required to avoid adjacent‑channel interference.

2. Supplementary Uplink (SUL)

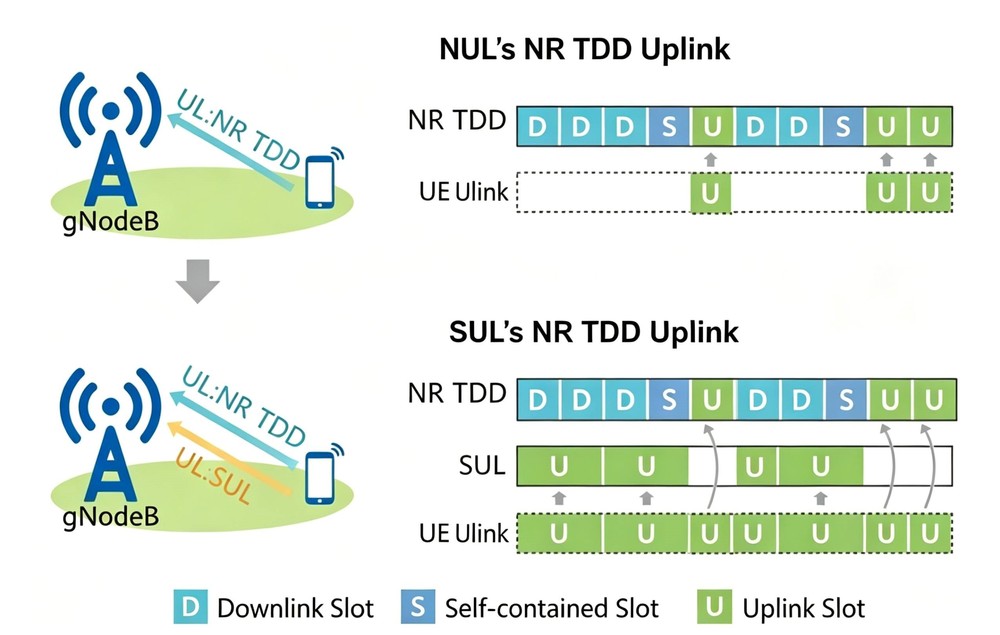

A classic enhancement defined in 3GPP R15: when the primary carrier is in downlink, a low‑frequency secondary carrier is used for uplink transmission. By leveraging existing low‑band resources (e.g., F‑band, A‑band) together with 4.9GHz, SUL enables continuous uplink transmission, reduces latency, and improves cell‑edge uplink performance.

3. Multi‑Carrier Aggregation

Aggregating multiple frequency bands breaks through single‑carrier bandwidth limitations. Standards evolution:

• R15: 2‑carrier uplink aggregation

• R16: Uplink Tx switching, frame offset

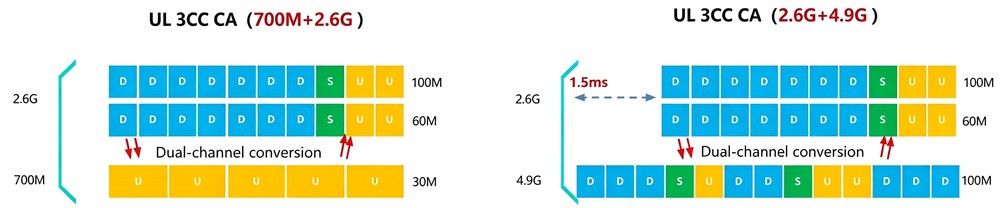

• R17: 3‑carrier uplink aggregation

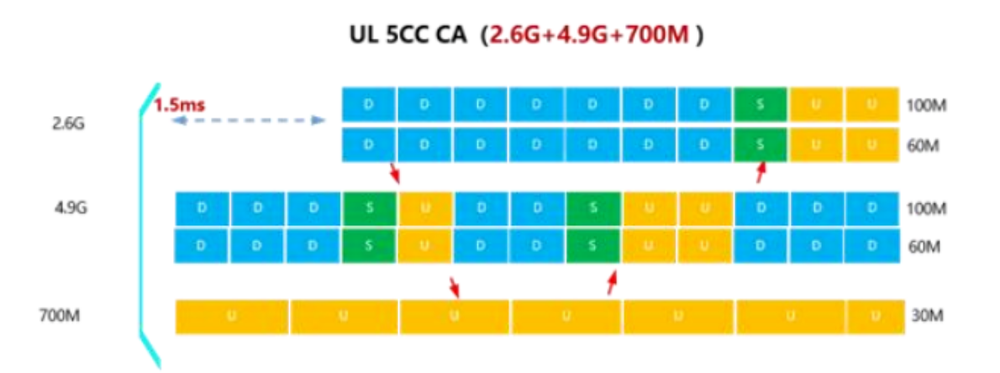

• R18: 5‑carrier aggregation across 4 bands

Combining bands such as 2.6GHz, 4.9GHz and 700MHz provides the hardware foundation for gigabit uplink rates.

4. Uplink Data Compression (UDC)

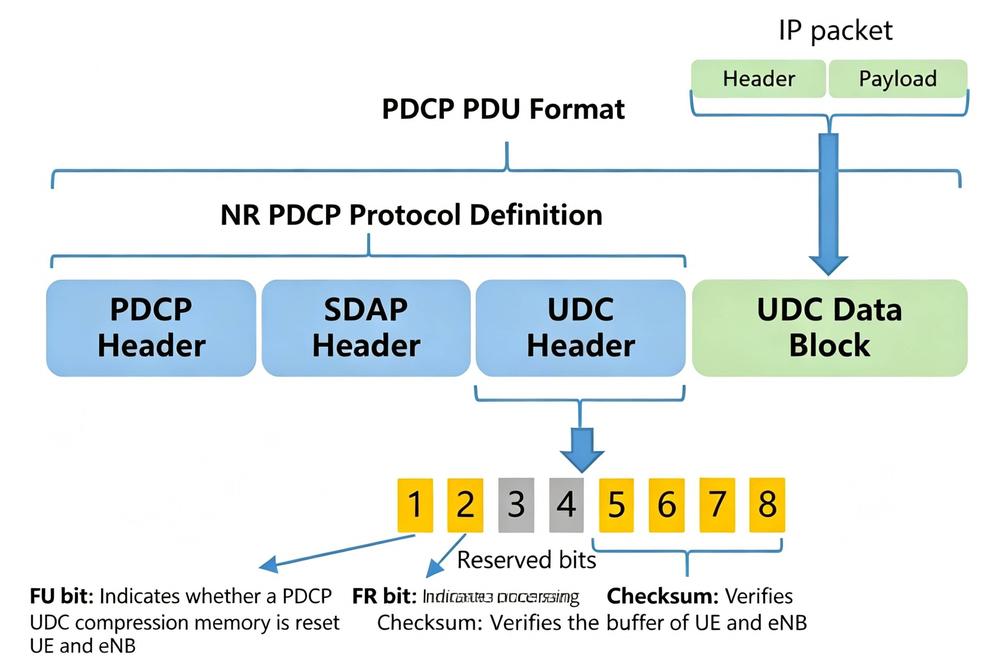

The terminal compresses data and the base station decompresses it, reducing protocol overhead and repeated data blocks. Measured gains: ~50% for VoNR, 50–80% for SIP signalling, 10–40% for live streaming and mobile gaming, and up to 90% for FTP uploads. Currently commercialised mainly for voice signalling; trials for XR and industrial IoT are ongoing.

5. Low‑Band Dual‑Transmit High‑Power Optimisation

The 700MHz band offers wide coverage and good penetration, but legacy terminals support only single‑transmit uplink at 23dBm. R18 enables 26dBm high‑power mode for 700MHz uplink. SAR (human exposure) constraints must be addressed through antenna design, smart power back‑off, and body‑sensing dynamic adjustment.

6. UE Aggregation

UEs (phones, wearables, IoT devices) form a virtual super‑terminal, jointly scheduled by the base station to aggregate bandwidth, antennas, and transmit power. When a single terminal has weak signal, it can relay data via nearby devices. Standardisation began in R19 and this technology is also a candidate for 6G.

7. New Spectrum and New Duplex Architecture

• U6G (6425–7125MHz) : 700MHz of contiguous mid‑band spectrum, can be co‑sited with 2.6GHz/3.5GHz – a key band for evolution to 6G.

• Millimetre wave: GHz‑level contiguous spectrum, single‑user uplink peak rate beyond 20Gbps, suitable for fixed high‑capacity scenarios.

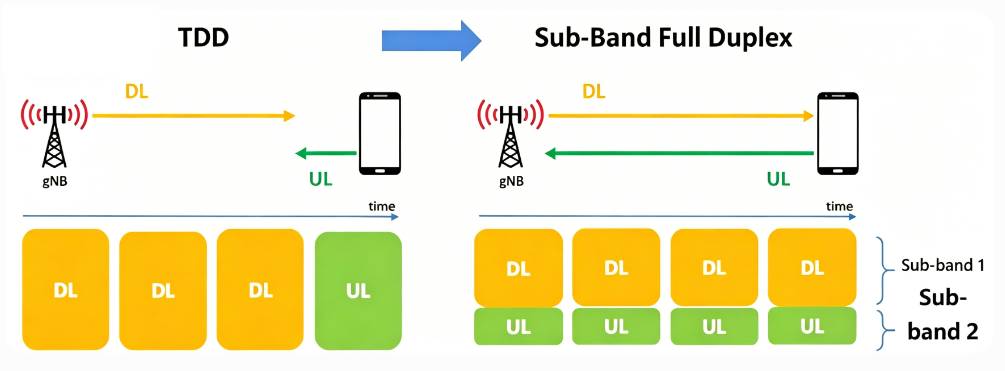

• Subband Full Duplex (SBFD) : Breaks the traditional TDD/FDD limitation by allocating uplink and downlink subbands within the same bandwidth, enabling concurrent transmission with low latency and high spectral efficiency. SBFD has been included in R19 standardisation and the 6G technology framework.

Deployment Rhythm: Near‑, Medium‑, and Long‑Term Layered Evolution

• Near‑term, ready for large‑scale deployment: 4.9GHz frame structure adjustment, SUL, 3‑carrier uplink aggregation (mature technology, good terminal support)

• Medium‑term, breakthrough needed: 700MHz dual‑transmit high‑power terminal, UDC (requiring industrial chain collaboration)

• Long‑term, forward‑looking: UE aggregation, U6G/mmWave, SBFD (dependent on standard completion and hardware iteration; will extend into the 6G era)

Conclusion: 5G‑A as a Patch, 6G as the Architect

The downlink‑native design of 5G makes it impossible to fundamentally rewrite the uplink shortfall at the architecture level. All 5G‑A uplink enhancements are essentially patches on the existing framework – using slots, spectrum, terminals, and algorithms – to temporarily relieve traffic pressure.

For future scenarios such as AI‑driven connectivity, immersive communications, integrated sensing and communication, and space‑ground integration, a qualitative leap in uplink rate, latency, connection scale, and coverage will depend on 6G’s new waveforms, full duplex, native uplink‑downlink balanced architecture, extreme spectrum resources, and deep terminal‑network collaboration. 2026 is already a period of deep 5G‑A commercialisation; the window for further upgrades to the 5G system is limited. The ultimate form of massive uplink capabilities will finally take shape in the 6G era.
