ComIn I2100P Router: A Networking Powerhouse for Industrial Equipment, Making Remote Maintenance More Efficient

In industrial settings, networking and remote management of devices such as PLCs and sensors have always been challenging. Traditional maintenance not only requires engineers to travel to various sites, but also easily leads to delayed fault response due to the dispersed nature of the equipment.

A single ComIn I2100P industrial-grade 4G full-network wireless router can easily break spatial limitations, enabling remote monitoring, debugging, and management of equipment, and building a stable communication bridge for the Industrial Internet of Things.

ComIn I2100P is designed specifically for industrial control environments, boasting industrial-grade features in both hardware and protection, making it capable of easily handling complex and harsh working environments.

1. Powerful hardware configuration

Equipped with a 32-bit MIPS dual-core industrial-grade processor and 128MB of system memory, expandable up to 256MB, it meets the data processing needs of multiple devices simultaneously connected to the network. It supports the 2.4GHz 802.11n wireless protocol, with a maximum WiFi speed of 300Mbps, and features an external, detachable, high-sensitivity antenna for more stable signal coverage.

2. Multiple layers of protection, fearless of harsh environments

The metal casing design provides secure isolation between the casing and the system, effectively shielding against electromagnetic interference in industrial control environments.

With a wide input voltage design, it supports 9~36VDC DC power supplies, and features built-in reverse power protection and overvoltage protection, adapting to the power supply needs of various industrial scenarios. The operating temperature range covers -35℃ to 75℃, and the storage temperature range is -40℃ to 85℃. It also meets multiple EMC certifications, demonstrating excellent anti-static, anti-radiation, and surge protection capabilities, easily handling factory, mine, and outdoor environments.

3. Dual watchdog protection, never disconnected

With a built-in hardware watchdog and a robust anti-disconnection mechanism, it supports device self-checking and fault self-repair, ensuring stable external network communication and enabling the data terminal to always be online.

The core advantage of the ComIn I2100P lies in its powerful protocol compatibility and remote management capabilities, perfectly solving the pain points of industrial equipment interconnection and data integration.

• Multi-protocol conversion, easily connect to various industrial equipment：It supports downlink acquisition of multiple industrial protocols, including Modbus RTU, Modbus TCP, DL/T 645, and IEC 104, and can directly connect to devices such as PLCs, smart meters, and sensors. Simultaneously, it supports uplink forwarding of Modbus TCP, IEC 101, IEC 104, and MQTT protocols, enabling seamless integration of acquired device data with host computer systems or cloud platforms for real-time data upload and analysis.

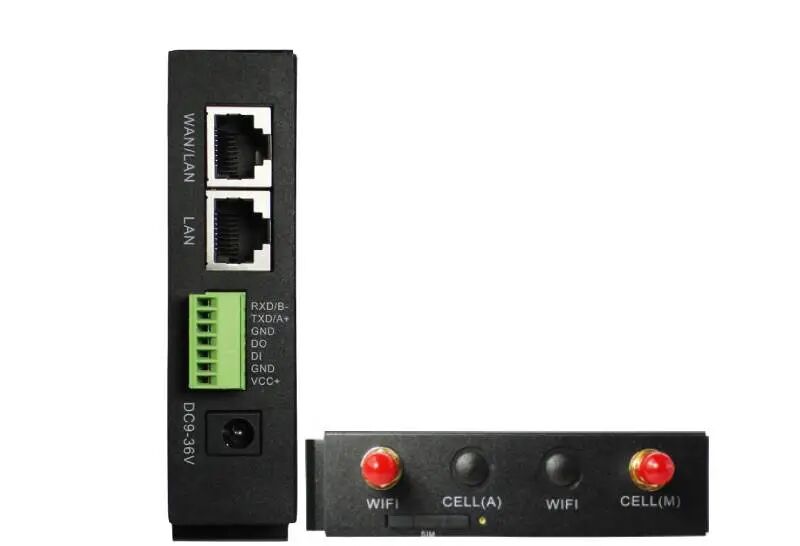

• Remote monitoring and debugging double the efficiency：It offers a rich set of industrial application interfaces, including one WAN/LAN multiplexed network port, one LAN network port, and RS232/RS485 serial ports, which can directly connect to serial devices, Ethernet devices, and WiFi devices. Engineers can establish an encrypted channel through a VPN client (supporting PPTP/L2TP/OpenVPN/IPSec protocols) to remotely view device I/O status and alarm information anytime, anywhere. They can also upload, download, and debug PLC programs online, truly achieving "precise control from afar."




• Centralized management and intelligent operation and maintenance：It supports remote management of devices via a cloud platform. Through a simple graphical interface, users can monitor the operational status of all networked devices in real time, enabling centralized monitoring of multiple devices. It supports three management methods: local, remote web, and cloud platform, allowing maintenance personnel to easily adjust device parameters, import and export configuration files, and perform local and remote online upgrades, significantly reducing maintenance costs.




ComIn I2100P supports three network connection methods: 4G, wired, and WiFi, and is equipped with a comprehensive link backup mechanism to ensure uninterrupted industrial operations.

• Full network compatibility 4G, wide coverage without dead zones：It supports mainstream 4G LTE FDD, TDD and 3G cellular data network frequency bands, is equipped with a drawer-type SIM/UIM card slot, supports 1.8V/3V SIM cards, and has built-in 1.5KV ESD protection, so that it can connect to the network stably in outdoor scenarios without wired network.

• Dual-link backup, automatic switching in case of network outage：It supports intelligent hot backup of both mobile and wired networks, and has a built-in link detection function that monitors network status in real time by sending heartbeat detection packets. Once the wired network is interrupted, it automatically switches to the 4G network to ensure service continuity.

With its high compatibility, strong stability, and easy deployment, the ComIn I2100P has become a standard communication device for the Industrial Internet of Things (IIoT) and is widely used in multiple fields.

• Smart Grid / Water Management：Remotely manage distributed substations and pumping station equipment, collect data from electricity meters and water meters, and realize automated meter reading and fault early warning;

• Industrial Automation：Connect to the production line PLC equipment to monitor production status in real time, remotely adjust production parameters, and reduce downtime losses;

• Smart Home / Finance：Provides stable network support for mobile POS terminals and smart security devices, ensuring data transmission security;

• Environmental monitoring/meteorology：It connects to various sensors, uploads monitoring data in real time, and helps with intelligent management in the fields of environmental protection and meteorology.

Enabling remote operation and maintenance of industrial equipment is very simple with the ComIn I2100P deployment process:

• Device connection：Connect the router directly to the industrial equipment via the Ethernet port or Phoenix connector, insert a 4G SIM card, and connect the power source.

• Network configuration：Configure VPN parameters, bind your cloud platform account, and select the appropriate network connection method through the web backend;

• Remote Management：Enter the device ID in the cloud platform or programming software to establish a secure connection, and you can begin remote monitoring and debugging.

From on-site operations to remote control, the ComIn I2100P industrial-grade 4G router proves that stable and efficient industrial networking is actually quite simple. Whether it's a small or medium-sized factory or a large enterprise, it can help them achieve a leap in operational efficiency.
