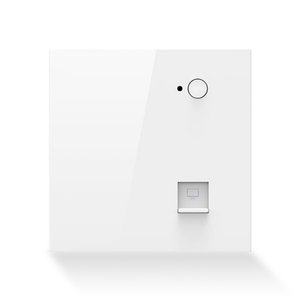

ComFi EL680M

1200AC Wall Mounted Access Point

Ultra Thin Panel

Fat and Thin in one

Gigabit Ethernet Port

ComFi EL680M is a business-grade wall-mounted wireless access point with high building quality and ivory white casing appearance. It brings a high speed dual band Wi-Fi access experience with 2.4GHz IEEE 802.11b / g / n and 5GHz IEEE 802.11ac wireless technology for users.

Product Details

Technical Parameter

Data Download

1200M Gigabit Dual Band Panel AP

Thin Body Shape Contains Great Energy | Capacity 100+ | IPTV Transparent Transmission

Wireless Speed can Reach 1200Mbps

Strong compatibility and long transmission distance in 2.4GHz frequency band, pure and less interference in 5GHz frequency band

High Performance Chips Lead to Skyrocketing Internet Speeds

Powerful performance, high speed and stability, derived from the powerful internal "core", can maintain stable network speed even after long-term operation without disconnection

Automatic RF Tuning Optimizes Network Quality

Support automatic RF adjustment optimization to avoid interference and ensure high-speed transmission of the entire wireless system

Wireless Control with Wi-Fi Switch

Equipped with Wi-Fi control switch and signal indicator light for easy control

Gigabit Port Provides a Smoother Experience

Adopting a gigabit port design greatly improves wired transmission speed and easily handles high specification fiber broadband access

Integrated Management of Weight and Thinness

Centralized control and efficient operation and maintenance, simple deployment and easy expansion, helping enterprises build stable and secure high-performance wireless networks

Standard PoE Power Supply

Using standard PoE power supply, no external power supply is required. Each AP only needs one Ethernet cable to transmit data and power simultaneously

Product Application Scenarios

Panel based AP can be used for network coverage in villas, resort homestays, hotels, dormitories, schools, etc., meeting the network needs of multiple scenarios

(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)(1)

Hardware Specifications
CPU	MT7621DAT + MT7615DN
Flash	8MB
RAM	128MB
2.4GHz WiFi Frequency	2.412 ~ 2.484GHz
2.4GHz WiFi Standards	802.11b/g/n MIMO 2T2R
5GHz WiFi Frequency	5.150GHz~5.850GHz
5GHz WiFi Standards	802.11a/n/ac MIMO 2T2R
2.4GHz WiFi Antenna	2dBi Internal Antenna x 2
5GHz WiFi Antenna	2dBi Internal Antenna x 2
SSID Hide	Support
Data Rate	2.4GHz: 300Mbps 5GHz: 867Mbps
Modulation	OFDM = BPSK, QPSK, 16-QAM, 64-QAM DSSS = DBPSK, DQPSK, CCK
Max Users	100+
Interfaces	1 x 10/100/1000Mbps WAN Port Auto MDI/X Support IEEE 802.3af 48V PoE 1 x 10/100/1000Mbps LAN Port Auto MDI/X
Reset	1 x Reset Pin-hole (Short press 1 time: Light Off, Short press 2 time: Light off and Wi-Fi off, Long press 10 second to perform factory reset)
LED Indicator	SYS indicator
Power Supply	48V (IEEE 802.3af), 0.5A
Power Consumption	<10W
Dimension	86 x 86 x 35MM
System Requirements	Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, Windows 8, Windows 10, MAC OS, NetWare, UNIX or Linux
Operating Temperature	-20°C to +55°C
Storage Temperature	-30°C to +55°C
Operating Humidity	5% - 95% (non-condensing)
ESD	Air Discharge: ±4KV
Surge	Common Mode: ±2KV
