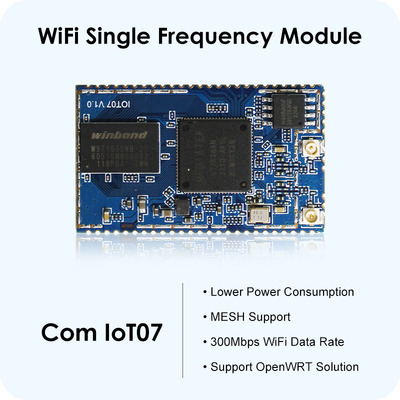

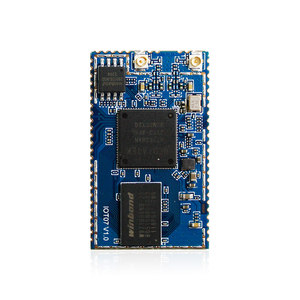

ComIoT 07
802.11b/g/n Wi-Fi Router Core Module
Lower Power Consumption
Support Mesh
300Mbps Wi-Fi Data Rate
The ComIoT 07 is based on MTK's MT7628 solution, this module integrates 802.11n 2x2 MAC/BB/radio and internal PA and LNA. It supports 802.11n, 20 MHz & 40 MHz channels up to 150 Mbps and 300 Mbps, respectively, and IEEE 802.11b/g protocol data rates. The module supports OpenWRT operating system, supports AP mode and client mode at the same time, and includes various application software to reduce the development and design work of customers.
Wireless Router Core Module
MT7628 Chip | 300Mbps Wireless Speed | Support OpenWRT Solution
Hardware Architecture
The module is based on MTK's MT7628 scheme, integrating 802.11n 2x2 MAC/BB/radio as well as internal PA and LNA
High Speed Chip
A high-speed chip specially designed for routing core modules, achieving 100Mbps data processing and ultra-low latency
Application Area
Suitable for application scenarios such as drones, industrial automation, wireless monitoring, smart homes, etc
(1)


Hardware Specifications
Main Chipset
MTK MT7628DAN (Optional Support MT7628NN)
Flash8MB (Optional Max 32MB)
RAM64MB (Optional Max. 128MB)
Operating Frequency2.40~2.4835GHz
WiFi StandardIEEE 802.11b/g/n (2X2)
Modulation11b: DBPSK, DQPSK and CCK and DSSS
11g: BPSK, QPSK, 16QAM, 64QAM and OFDM
11n: MCS0~15 OFDM
Data Rates11b: 1, 2, 5.5 and 11Mbps
11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
11n: MCS0~5, up to 300Mbps
Number of Pin61pin
InterfaceEthernet, UART, USB
PCB Stack4 Layers
Size40mm x 20mm x 2.3mm (W x L x H)
Weight4g
AntennaStandard IPEX connector
Operation Temperature-30°C to +70°C
Storage Temperature-40°C to +150°C
Operation Voltage3.3V +/-10%
Power Consumption1.5W (Average)
GPIO Voltage3.3 V +/-10%


Data Download
文件下载(1)(1)
Product - ComIoT 07 Wireless Router Core Module Product Specifications.pdf
764.13KBDownload
